Farmec Trailer

Optional Configurations

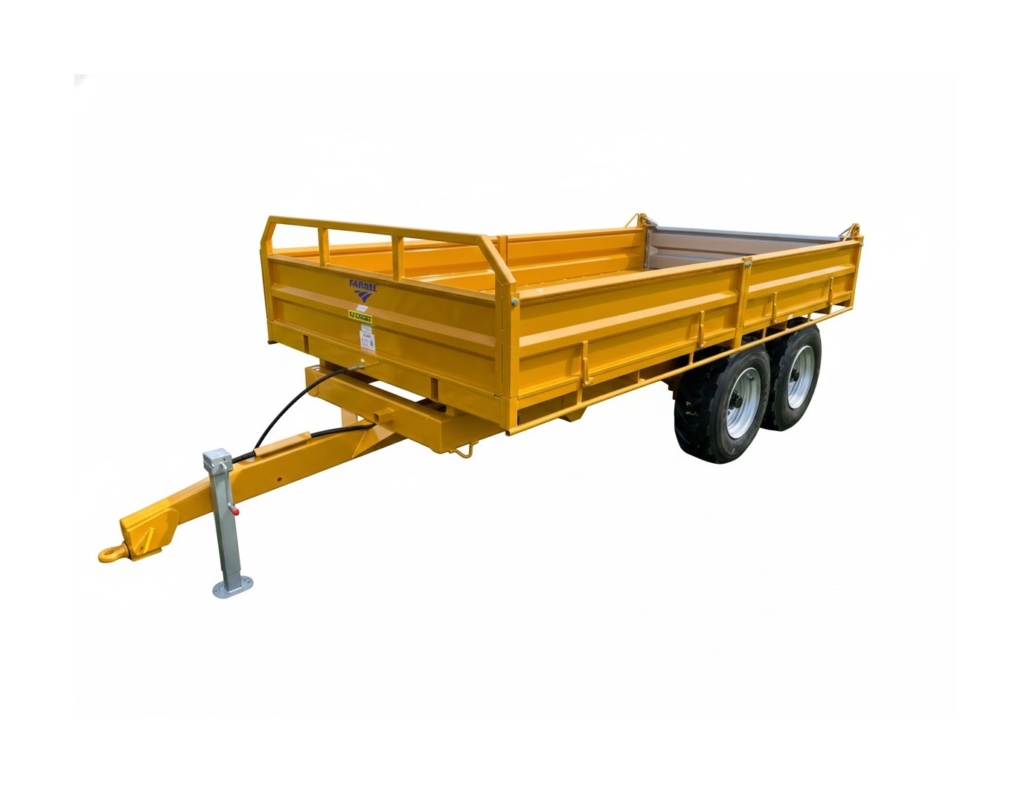

12 Tonne Tipping Trailer ‘FT12’

$44,244

We now hit the big boys toys, the FARMASTER 12 tonne with 4.8m long deck and 8 stud axles with bigger 22.5 truck size rims has been a really good seller and suits farmers with a bit more horse power 140 to 170hp. The 8 stud axles with 385 truck tyre will run all day in dry hot conditions carting a good big load or fitted with the optional grain bin makes an ideal load during the grain harvest, also available on 500mm wide floatation’s for wet silage harvesting or carting bales in wet conditions with the added bale extension giving a real big load is great.. with a bigger ram it offers capacity, strength, reliability, function and pricing. Weighing in at around 3.5 tonne tare weight its very strong will last for years.

These trailers are fitted from new with many features that we believe you will appreciate. However, if you need something extra you only need to ask, we love adding things that make your life easier!

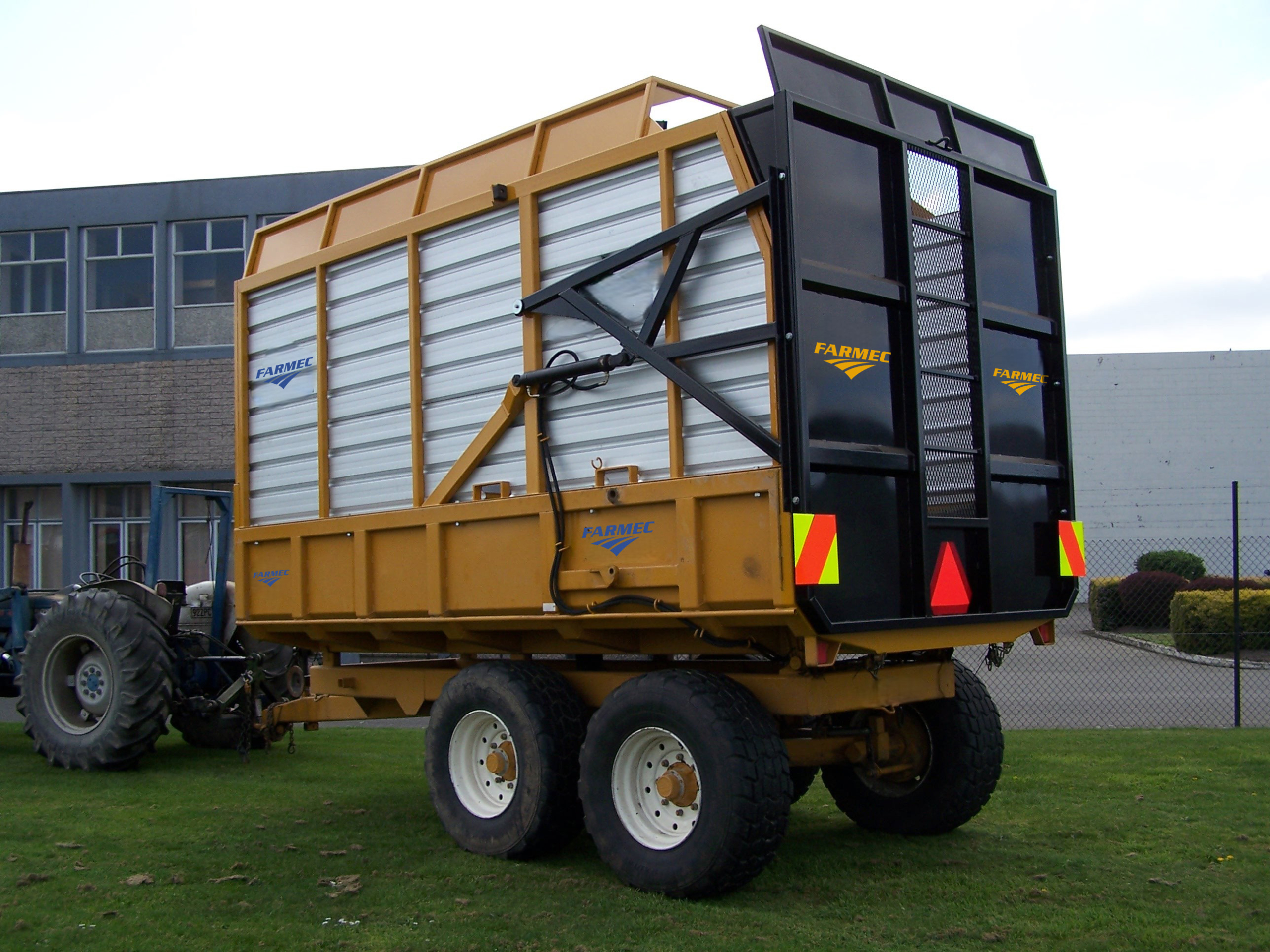

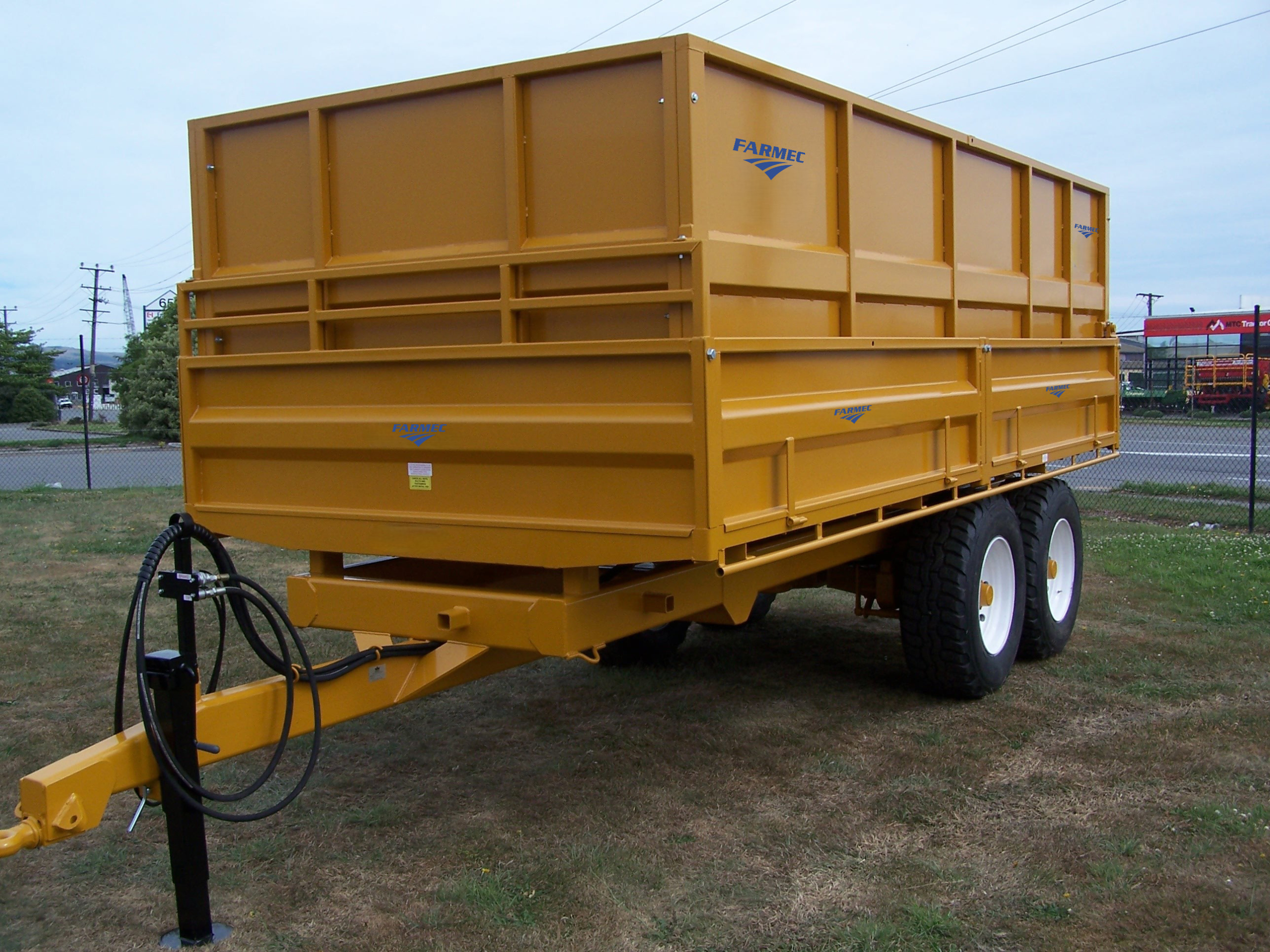

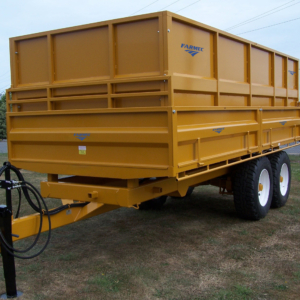

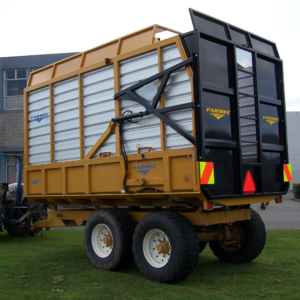

(Also available with grain bins and silage crates.)

ALL PRICES ARE QUOTED + GST + Delivery
Categories: ,

Description

Thank you for considering Farmec for your trailer requirements, we are pleased to be able to offer you our extensive range of locally built tip trailers. These trailers are capable of many years of reliable operation, they are fast becoming the trailer that set the standard. We are pleased that our customers appreciate the features that we added following over 30 years of development work with both customers and our engineers.

What we have aimed to achieve is:

  • a robust trailer capable of handling all farm operations whilst maintaining the ability to be as functional as possible
  • a trailer that exceeds your expectation in the field both today and tomorrow
  • that the engineering, design and ascetics of the vehicle prove to give you maximum longevity
  • a price that ensures the unit is competitive whilst considering ‘like for like’
  • that the optional equipment ensures all customer’s requirements are catered for

Features

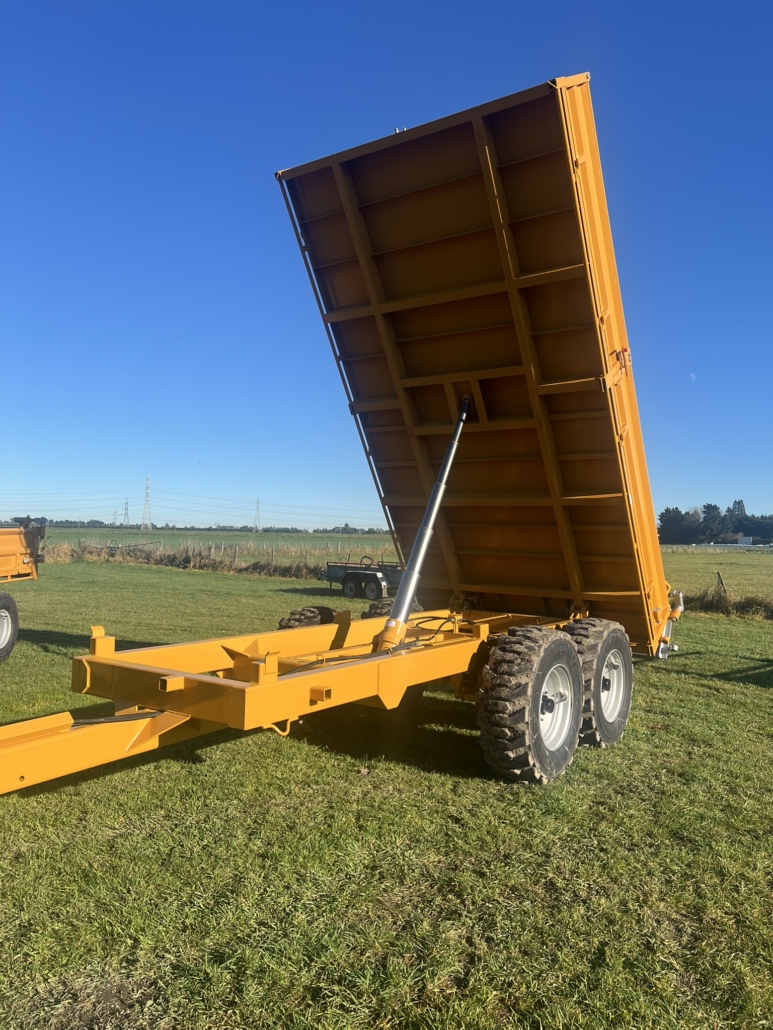

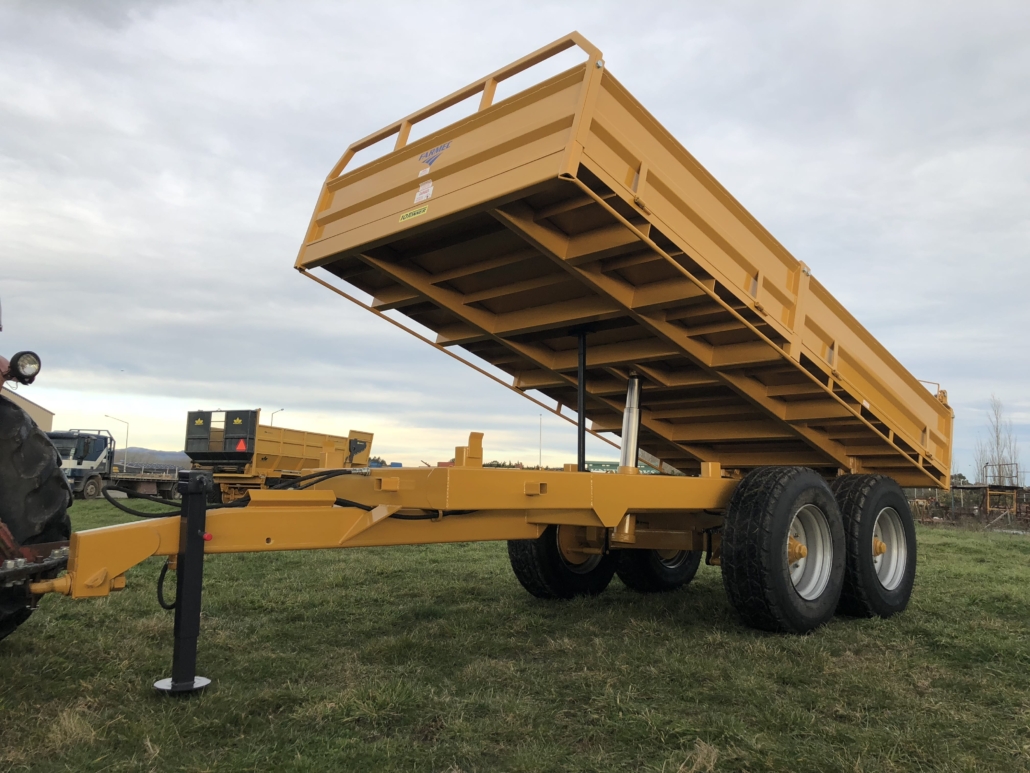

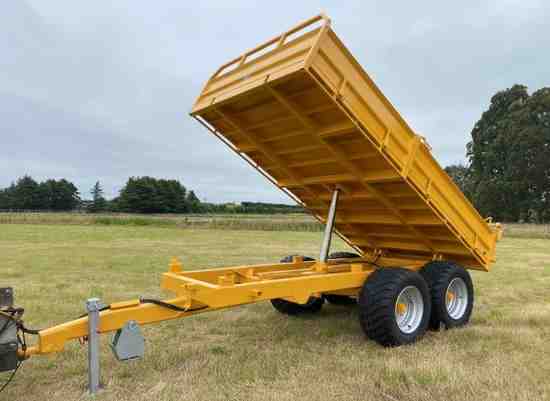

  • A fast-tipping body via Italian made 5 stage telescopic cylinder that goes to 60° will ensure even sticky loads will tip.

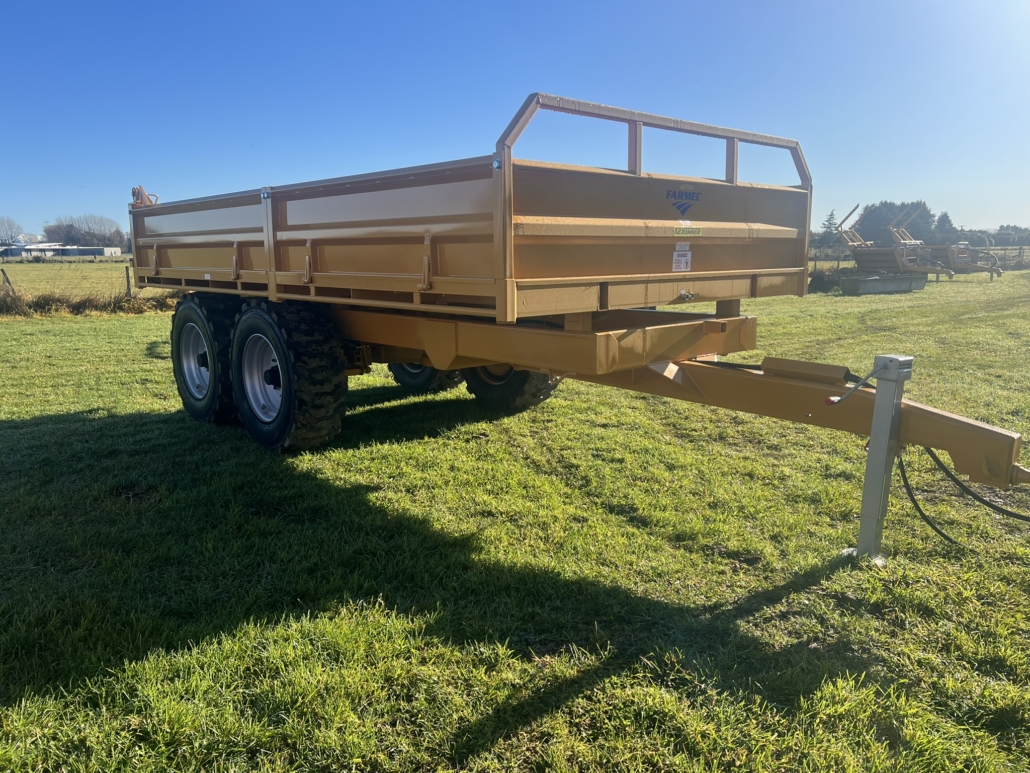

  • Full RHS chassis with single drawbar member gives high strength and maximum turning circle.

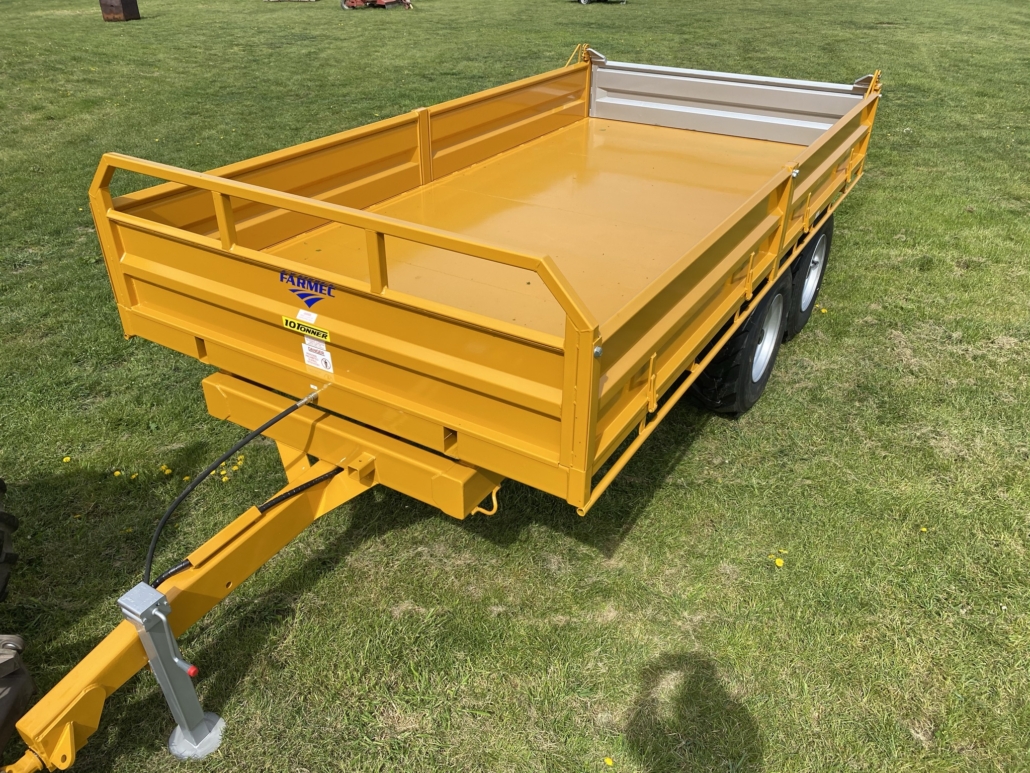

  • The 2-piece sides with center posts are hinged and easily removable with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides.

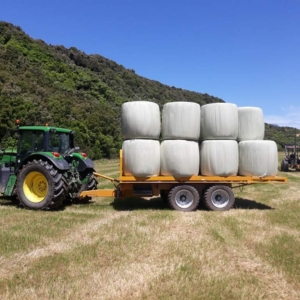

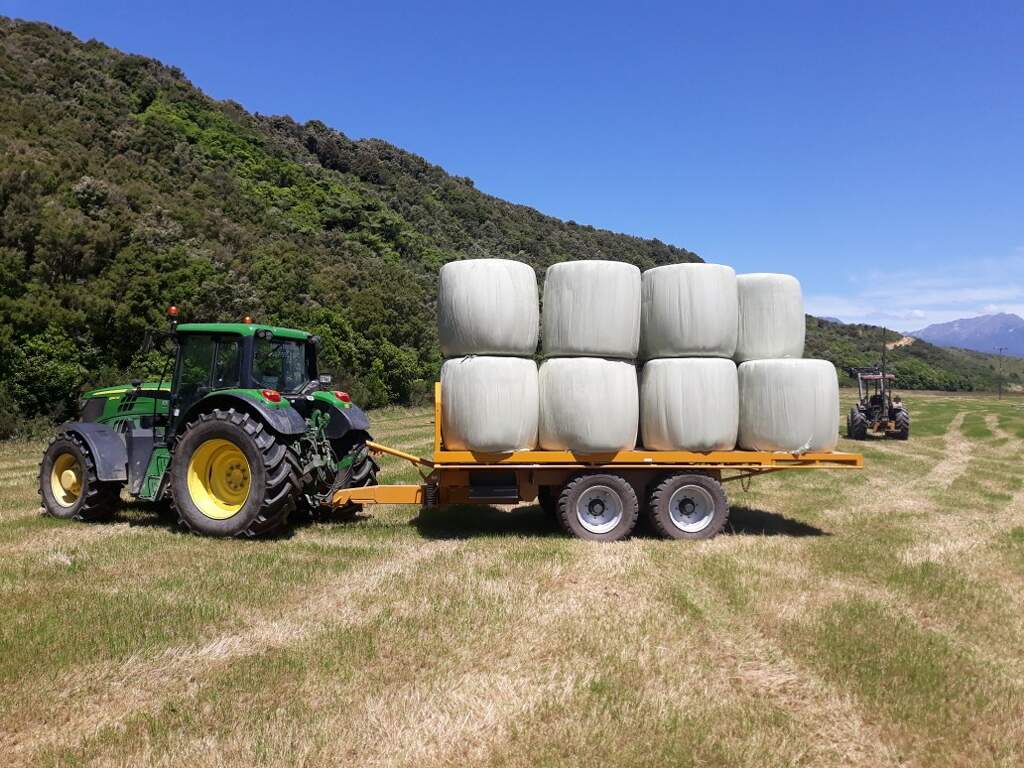

  • This is a very functional trailer for any operation, many of these are sold with a bale extension of 1.2m that neatly secures into the top deck members, this now gives 6m of floor area that allows up to 14 round bales to be loaded.
  • A particular feature is that the headboard can lift out of its location sockets. Bolsters can then be fitted to the 4 corner sockets making the flatbed ideal for poles/pipe transport. The mechanical auto opening door opens as the trailer tips, or this can be hydraulic if preferred. Spreading chains ensuring the right amount of material is spread.

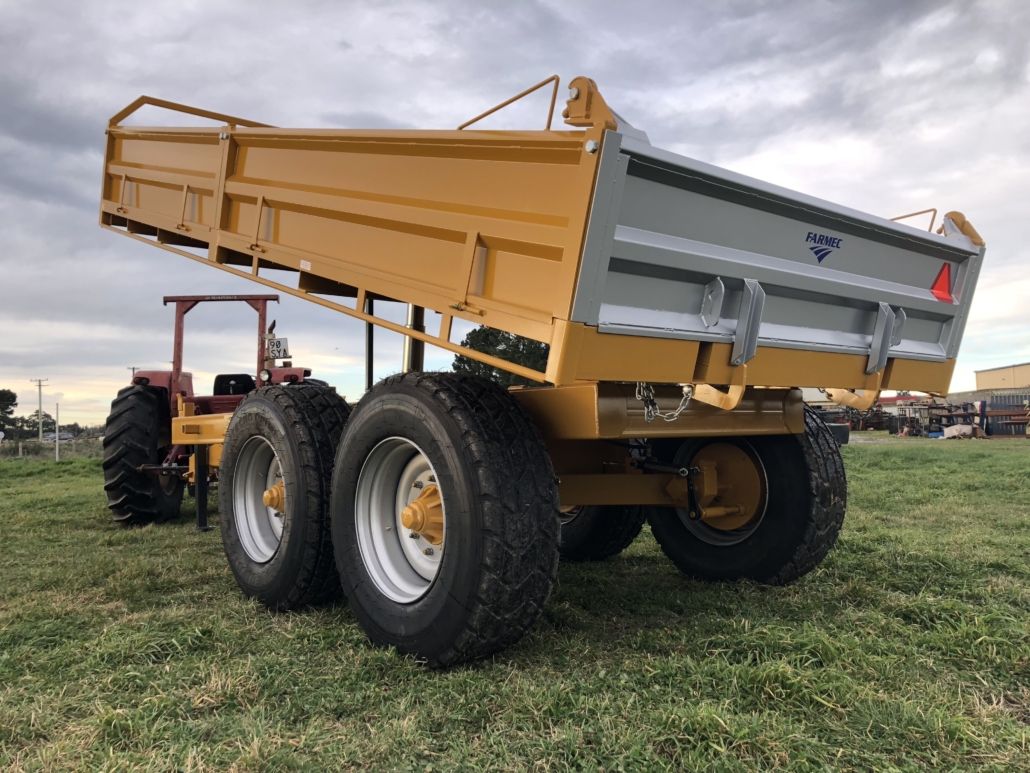

  • The option of the swing round tailgate is very popular as it’s so easy to use and very user friendly. It can be locked down the side whilst in transport.
  • The tandem axle has Italian 80mm axles that oscillate on a 75mmØ solid pin with greaseable bushes and there’s more it is 50mm off centre which helps to prevent speed wobble and even more we fabricate a 3° positive camber in the tandem to assist with tyre wear and longevity after its carted a million tonnes for you.

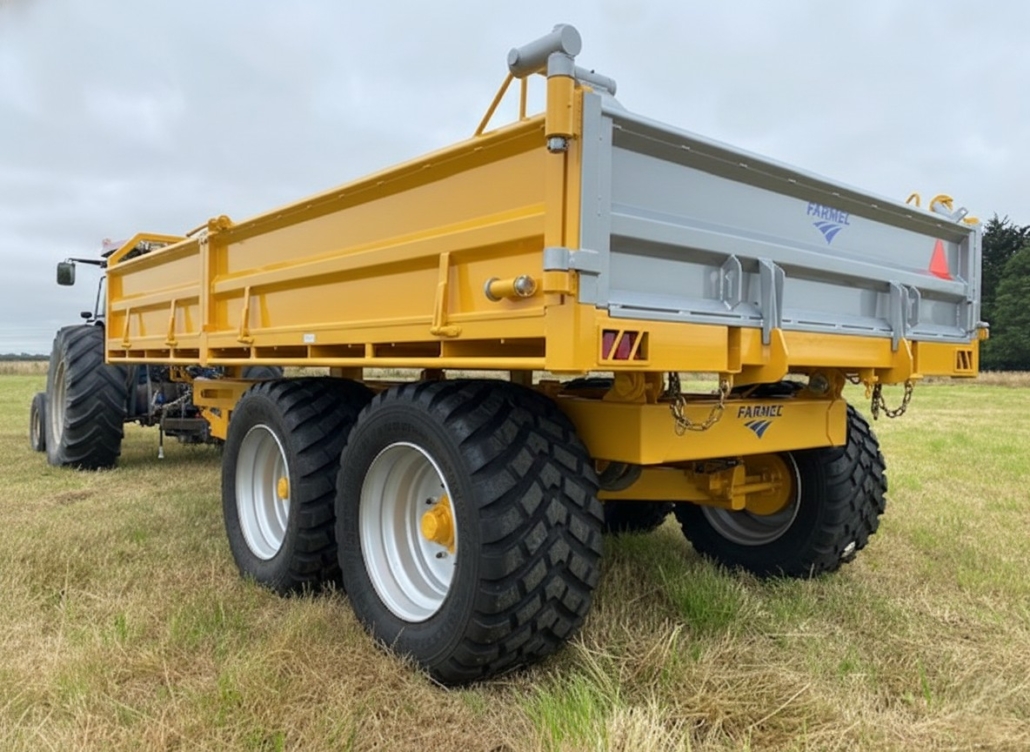

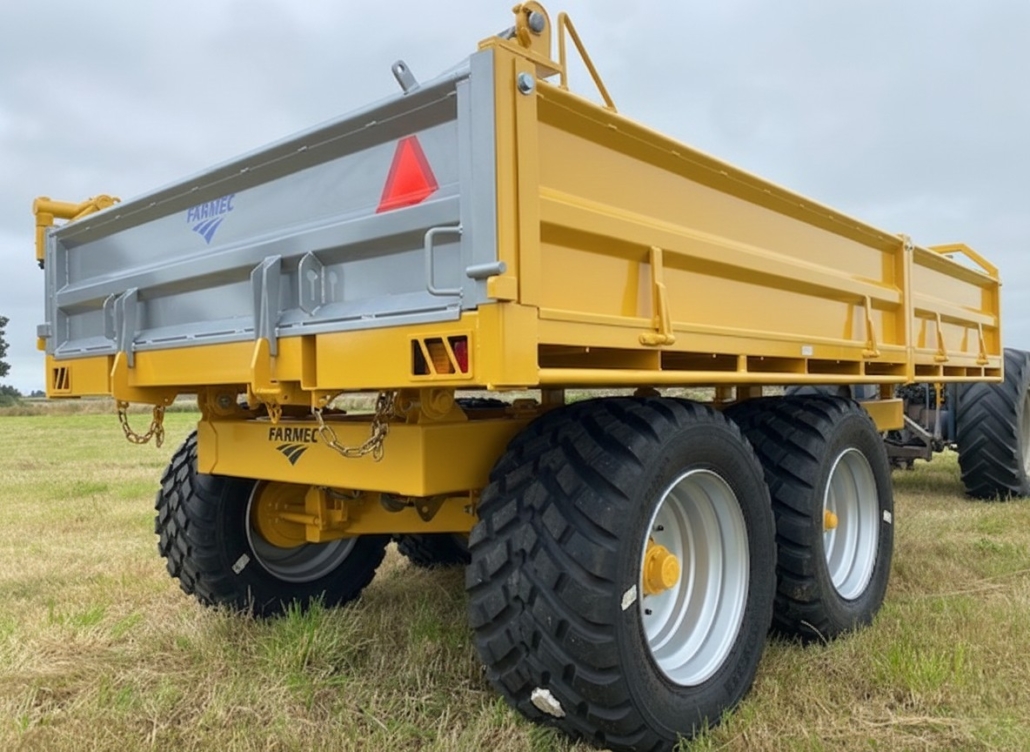

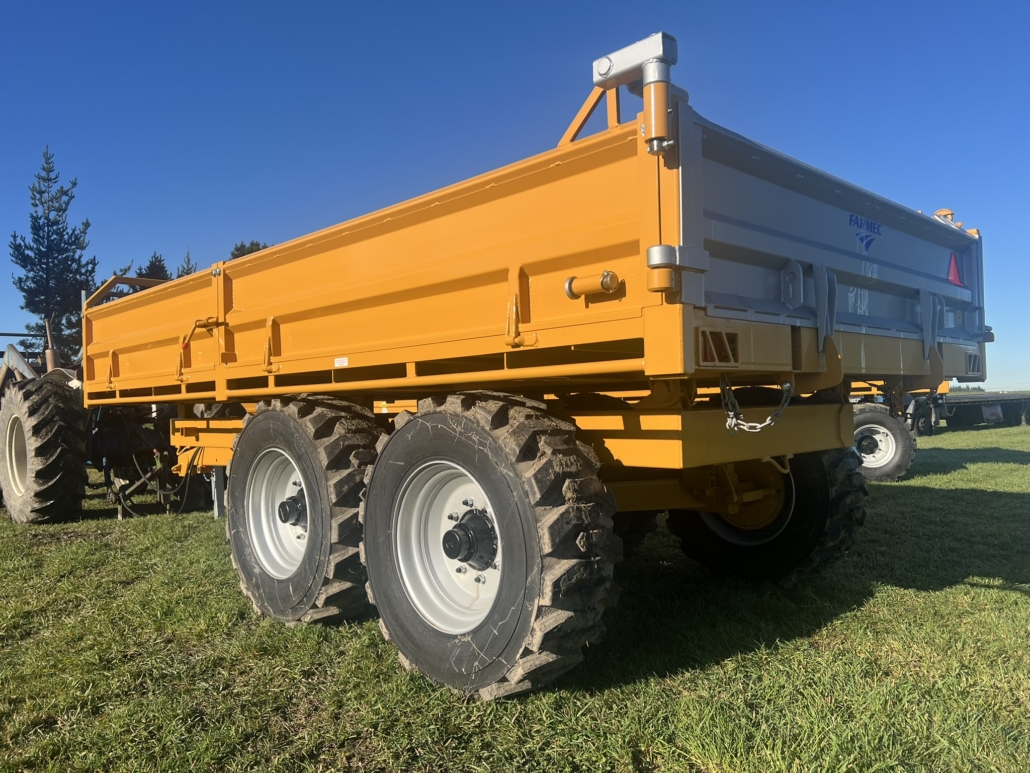

  • Wheel options are either 385/65R x 22.5 as standard or 500 / 45 x 22.5 as the flotation option.

Specifications

BODY TYPE Flat floor with hinged removable sides
CAPACITY (kg) 12 tonnes payload by design
CAPACITY (m³) 6m³ level loaded at 2,000kgs/m³
BODY LENGTH 4,800mm
BODY WIDTH 2,440mm
SIDE DEPTH 525mm
LOADING HEIGHT 1,150mm depending on wheels
RAM TYPE Via 12 tonne hydraulic Multistage cylinder requiring 25 litres of oil to lift to 60° and terminating at ½” QRC – 4051
TIPPING 1st Stage 29.7 tonnes
2nd stage 22.4 tonnes
3rd stage 16.1 tonnes
4th stage 10.9 tonnes
5th stage 6.5 tonnes
DRAW BAR Single beam drawbar 200 x 100 x 9mm
DB SUPPORT Fitted with 80mm jack stand
WHEELS STD. 385 / 65 x 22.5 as standard wheels
SINGLE AXLE N/A
AXLE CAPACITY Tandem 80mm/8 stud brakeless (20,000 at 40km/hr)
BRAKES (see extras)
CHASSIS 200 x 100 x 9mm fully welded chassis
TOP CHASSIS 152 x 75 x 6mm RHS
HEADBOARD Removeable with corner sockets – fitted with RHS top shock rail and extension grab rail for aesthetics
SIDES Detachable hinging sides that bolt in rigid, allowing easy access to side loading, RHS top shock rail to prevent damage. There are 2 removable panels per side held together with a centre deck staunchen.
TAILGATE Detachable tailgate with RHS top shock rail, includes independent corner posts to allow rear door to be removed, yet sides remain fixed. Door hinge is 100mm higher and 100mm forward of central balance point
DOOR LOCKING Mechanical opening & locking controlled from tip angle
ROPE RAILS Fitted as standard with 1” bore pipe attached every third floor member
DECK THICKNESS 4mm Corten 350G crossed braced every 350mm
SIDE THICKNESS Pressed Corten 3mm 350 grade with upright bracing
TOW EYE Swivel 50mm eye as standard
FINISH Blasted, zinc-based primer, 2 x gloss coats
COLOUR Standard Farmec yellow with rims and tailgate silver

Extras

Wheels $3,880 (500/45 x 22.5 wheels) in lieu of 15R
Bale extension 1.2m $2,988
Road lights $980
Hydraulic trip door $980
Central lube $685

Related products

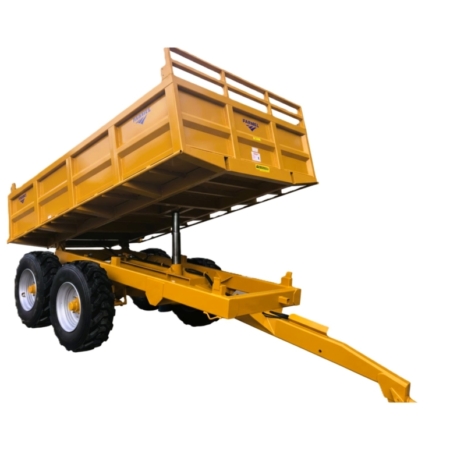

  • Farmec Contractor Trailer 'TC10' - Product Image

    10 Tonne Contractor Trailer ‘CT10’

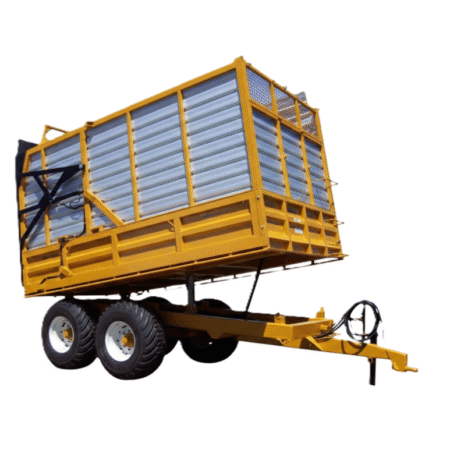

  • Farmec Silage Trailer 'CT15SM' - Product Image

    15 Tonne Silage Trailer ‘CT15SM’
  • Farmec Farmaster Trailer 'FT14' - Product Image

    14 Tonne Tipping Trailer ‘FT14’

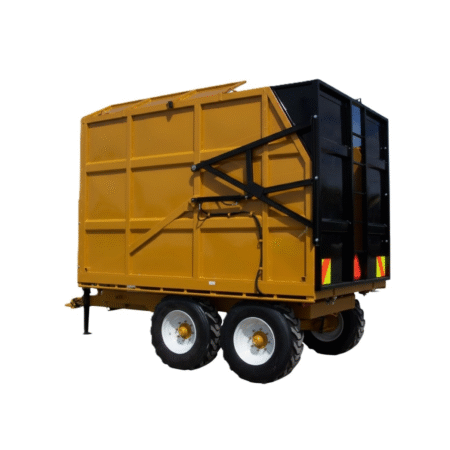

  • Farmec Silage Trailer 'CT10SM' - Product Image
