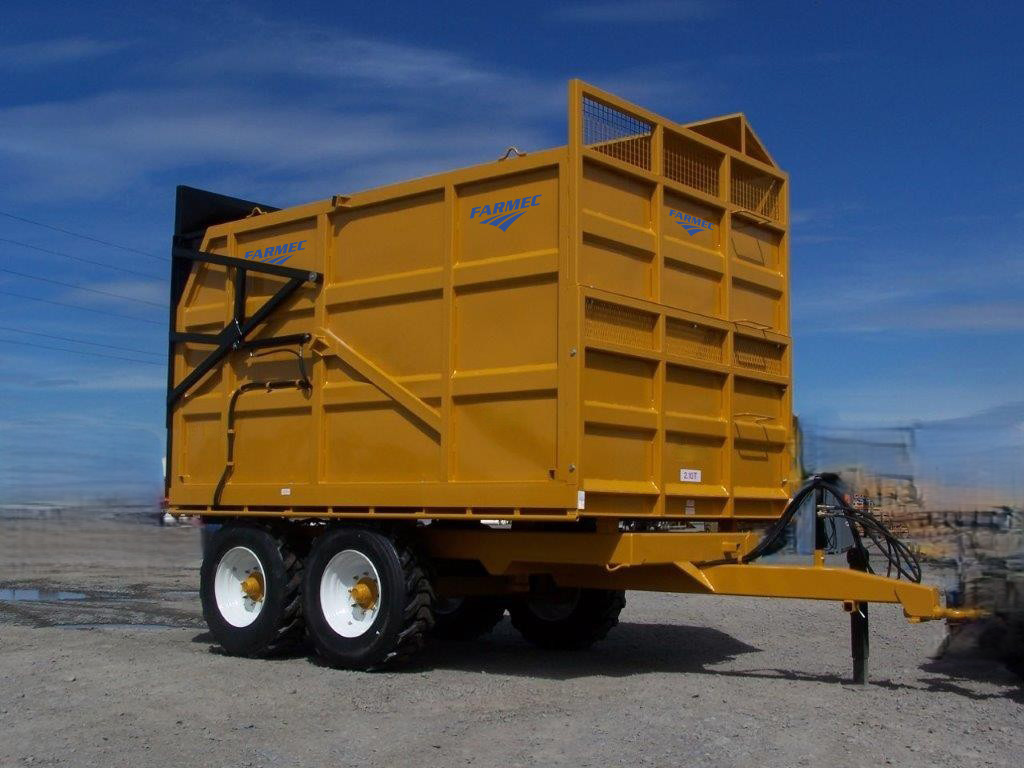

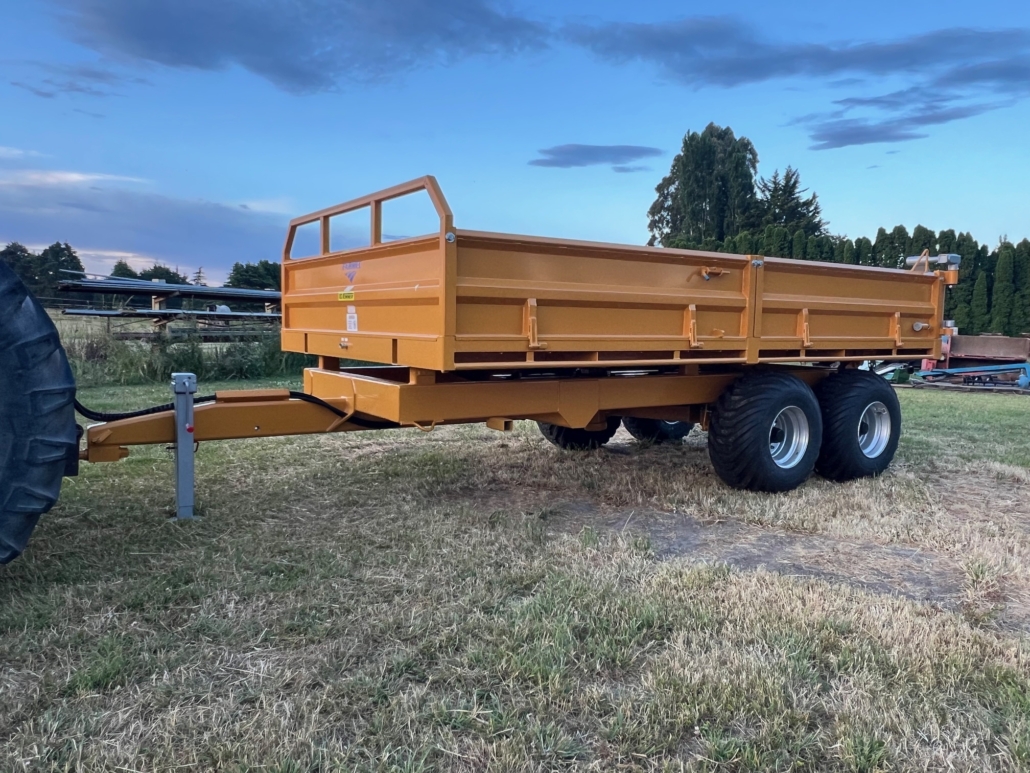

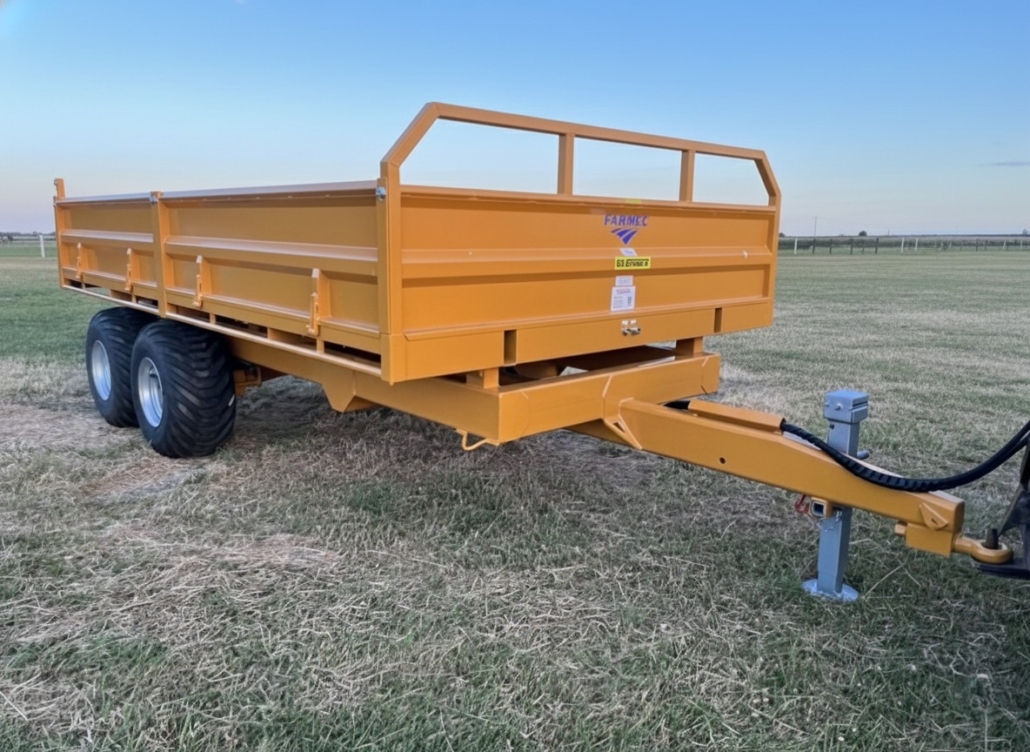

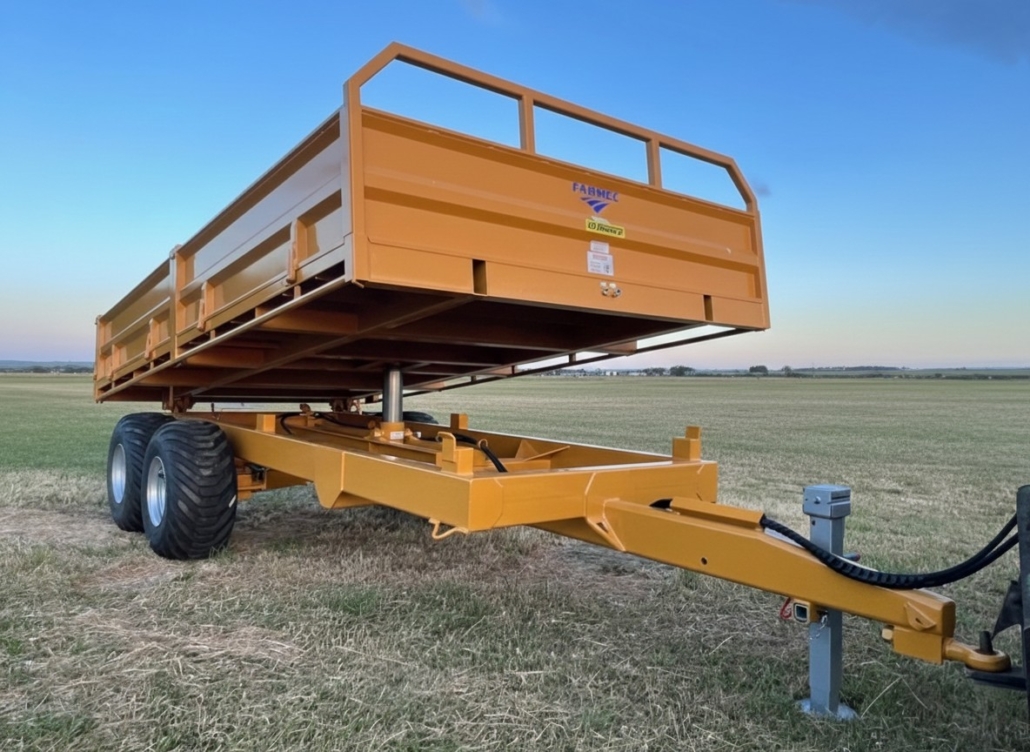

This is another great trailer with a couple of quirks ! It is basically 400mm longer than the 8t at 4.4m deck which in itself is not a lot of difference however the main reason for purchase would be that this trailer can be fitted with a 500mm wide floatation tyre which has found favour in the wet conditions and with customers that want to fit a silage bin.
Great tipping capacity with a bigger 5 stage ram it offers strength, reliability, function and competitive pricing, ideally suited to 130 to 160hp again in the dairy farmer tractor bracket. Phenomenally stable due to low centre of gravity, extremely wide footprint and very simple friendly operation. Weighing in at approx 3 tonne tare weight its very strong will last for 30 years easy.
The Trailers are fitted from new with many features that we believe you will appreciate. However, if you need something extra special you only need to ask, we love adding things that make your life easier!

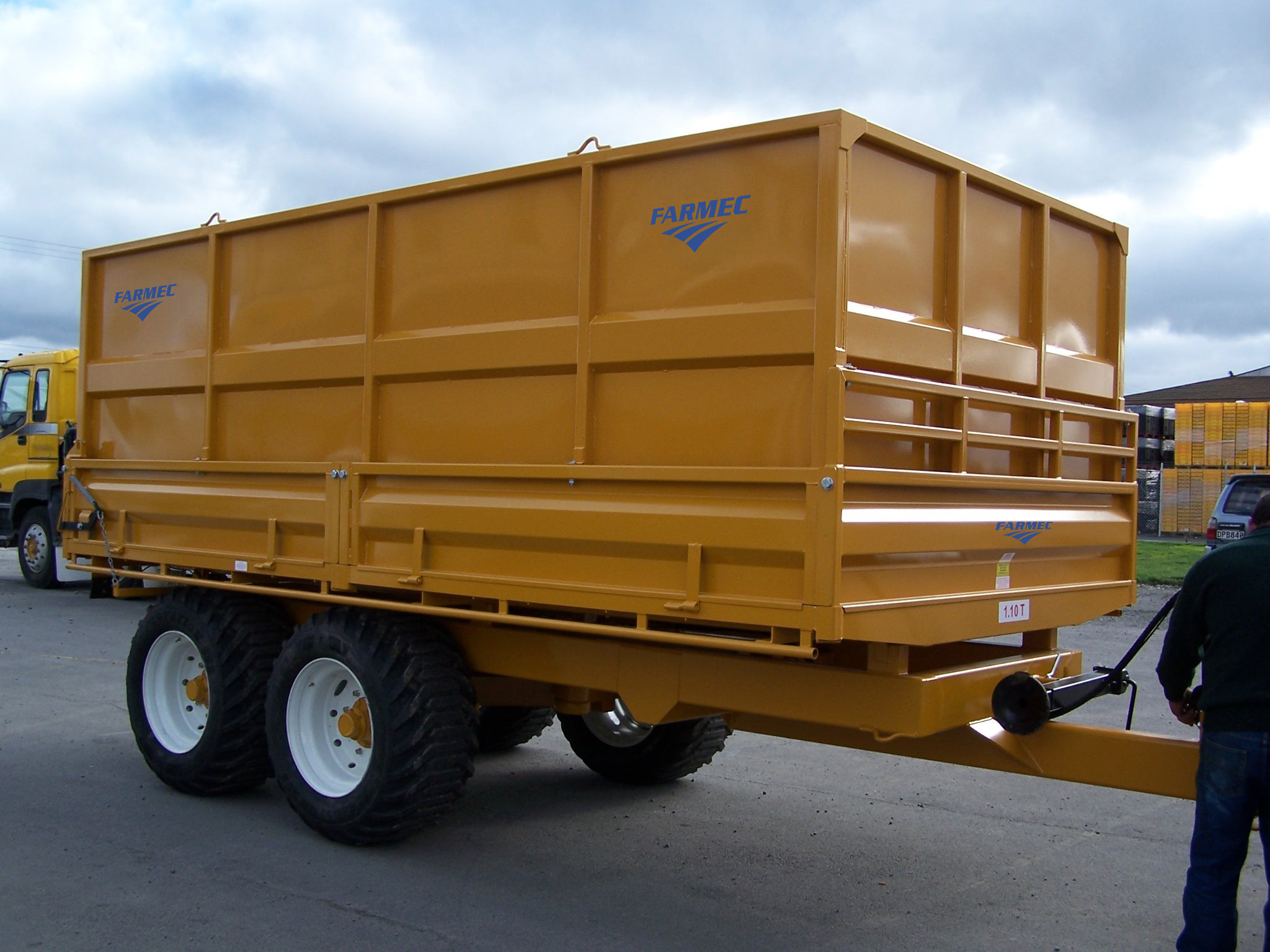

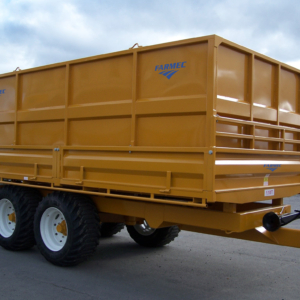

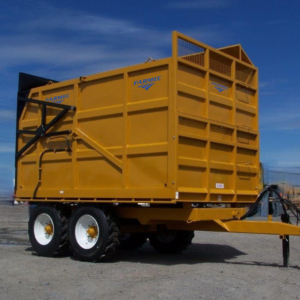

(Also available with removeable grain bin and if needed a robust silage crate.)
Thank you for considering Farmec for your trailer requirements, we are pleased to be able to offer you our extensive range of locally built tip trailers. These trailers are capable of many years of reliable operation, they are fast becoming the trailer that set the standard. We are pleased that our customers appreciate the features that we added following over 30 years of development work with both customers and our engineers.
What we have aimed to achieve is:
a robust trailer capable of handling all farm operations whilst maintaining the ability to be as functional as possible
a trailer that exceeds your expectation in the field both today and tomorrow
that the engineering, design and ascetics of the vehicle prove to give you maximum longevity
a price that ensures the unit is competitive whilst considering ‘like for like’
that the optional equipment ensures all customer’s requirements are catered for
This video shows one of our 10 Tonne Farm Tip Trailers:
Features
The Farmaster range of trailers has been designed for general farm use, this means unique features are common to all models. We believe you are making the right choice and here’s why:

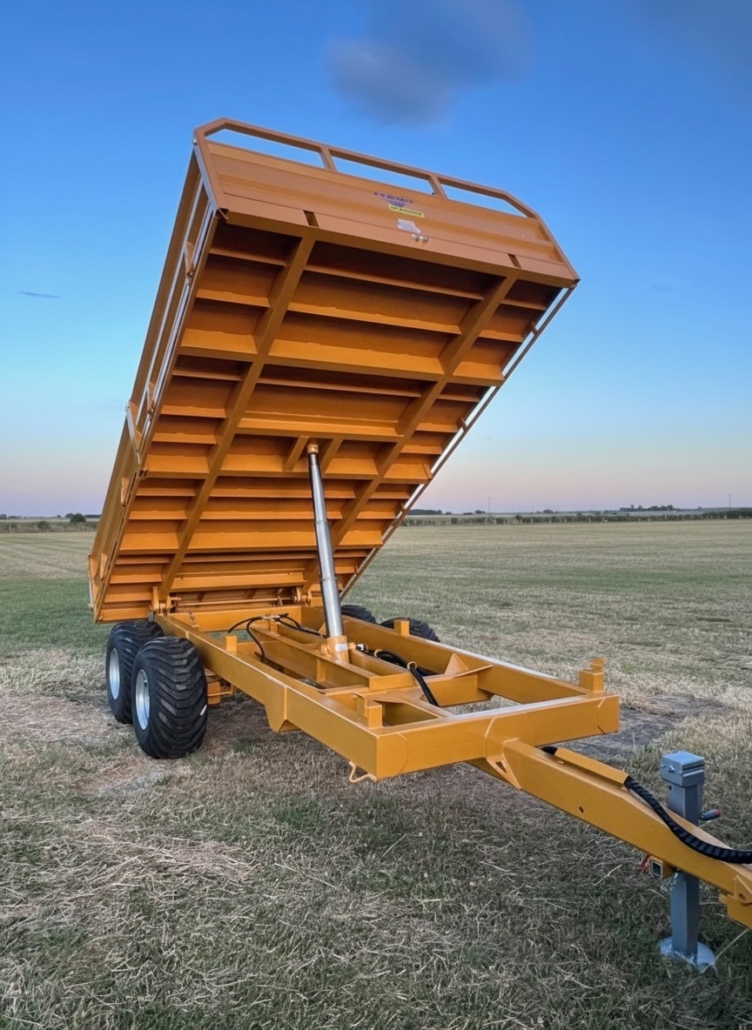

A fast-tipping body via Italian made telescopic cylinder that goes to 60° will ensure even sticky loads will tip.
Full RHS chassis with single drawbar member gives high strength and maximum turning circle.
The 2-piece sides with centre post are hinged and easily removable with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides.

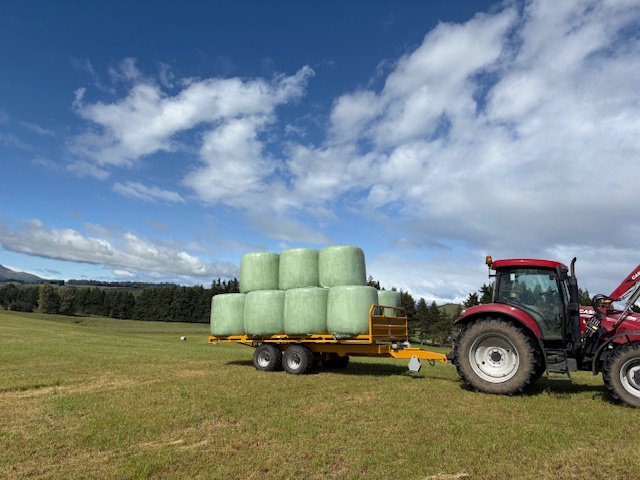

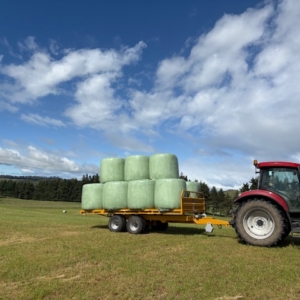

This is a very functional trailer for any operation, many of these are sold with a bale extension of 1.2m that neatly secures into the top deck members, this now gives 5.6m of floor area that allows up to 13 round bales to be loaded.
A particular feature is that the headboard can lift out of its location sockets. Bolsters can then be fitted to the 4 corner sockets making the flatbed ideal for poles/pipe transport.
The mechanical auto opening door opens as the trailer tips, or this can be hydraulic if preferred, and fitted spreading chains ensuring the right amount of material is spread.
We offer as an option the very popular swing round tailgate to all FARMASTER trailers. It is so easy to use, making life easier as it can be locked down the side whilst in transport. There is no need to remove it when not in use.

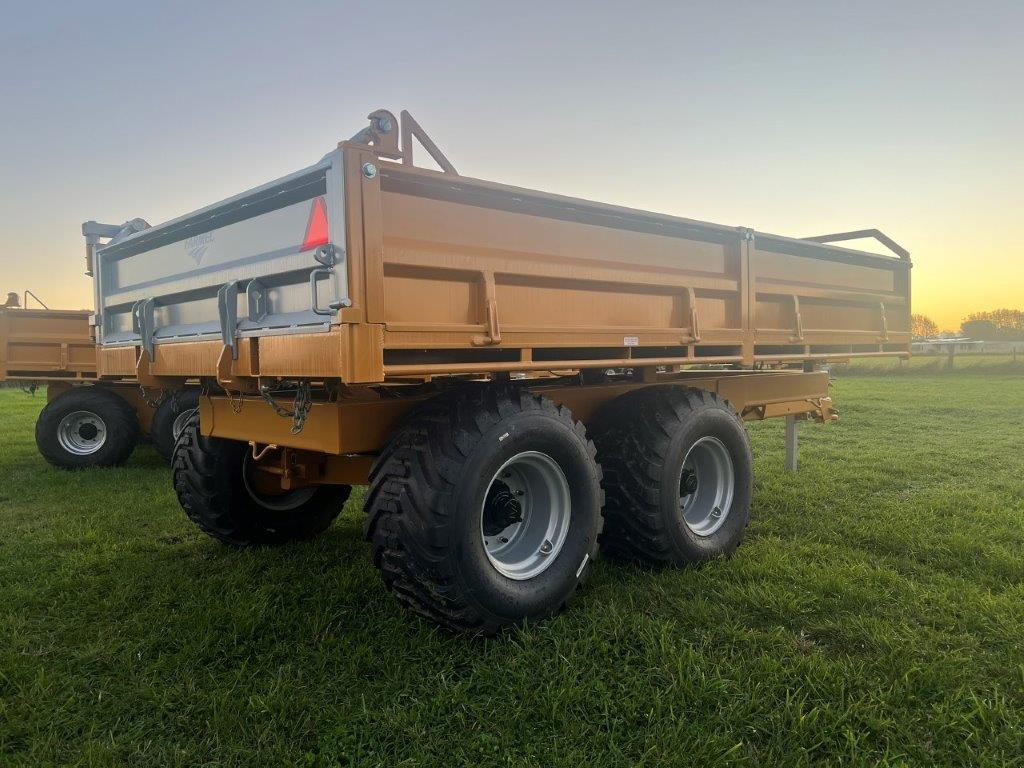

The Tandem axle has Italian 70mm axles (80mm option) that oscillate on a 75mmØ solid pin with greaseable bushes and there’s more it is 50mm off centre which helps to prevent speed wobble and even more we fabricate a 3° positive camber in the tandem to assist with tyre wear and longevity after its carted a million tonnes for you.
Wheel options are either 400/60 x 15.5 – 18ply as standard or 500 / 50 x 17 as the flotation option.
Specifications
BODY TYPE
Flat floor with hinged removable sides
CAPACITY (kg)
10 tonnes payload by design
CAPACITY (m³)
5.5m³ level loaded at 2,000kgs/m³
BODY LENGTH
4,400mm as standard or 4.8m on the XL
BODY WIDTH
2,440mm outside
SIDE DEPTH
525mm
LOADING HEIGHT
1,120mm depending on wheels
RAM TYPE
Via under body hydraulic multi-stage cylinder. Requires 16 litres of oil to lift to 60° and terminating at ½’’ QRC, giving the following lift at 160 bar:
TIPPING
1st stage 22.4 tonnes
2nd stage 16.1 tonnes
3rd stage 11.7 tonnes
4th stage 8.1 tonnes
5th stage 5.2 tonnes
DRAW BAR
Rigid drawbar 200 x 100 x 9mm
DB SUPPORT
Fitted with 80mm jack stand
WHEELS STD.
400 / 60R x 15.5 – 14 ply floatation wheels
SINGLE AXLE
na
AXLE CAPACITY
Tandem 70mm / 6 stud brakeless (14,800kgs at 40km/hr)
BRAKES
(see extras)
CHASSIS
200 x 100 x 6mm fully welded chassis
TOP CHASSIS
152 x 75 x 6mm RHS
HEADBOARD
Removeable with corner sockets – fitted with RHS top shock rail and extension grab rail for aesthetics
SIDES
Detachable hinging sides that bolt in rigid, allowing easy access to side loading, RHS top shock rail to prevent damage. There are 2 removable panels per side held together with a centre deck staunchen.
TAILGATE
Detachable tailgate with RHS top shock rail, includes independent corner posts to allow rear door to be removed, yet sides remain fixed. Door hinge is 100mm higher and 100mm forward of central balance point
DOOR LOCKING
Mechanical opening & locking controlled from tip angle
ROPE RAILS
Fitted as standard with 1” bore pipe attached every third floor member
DECK THICKNESS
4mm Corten 350G crossed braced every 350mm
SIDE THICKNESS
Pressed Corten 3mm 350 grade with upright bracing
TOW EYE
Swivel 43mm eye as standard
FINISH
Blasted, zinc-based primer, 2 x gloss coats
COLOUR
Standard Farmec yellow with rims and tailgate silver
