Description

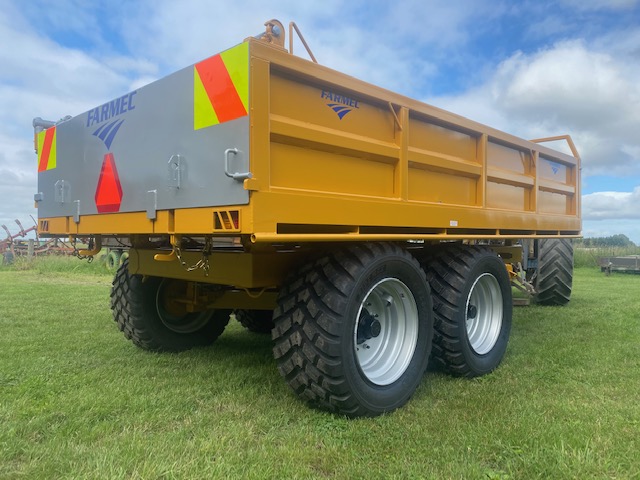

Farmec is NZ’s premium manufacturer of tip trailer for use with an agricultural tractor. What we offer is a new breed of trailer (not just a beefed-up farm trailer) with many features specifically designed for the construction industry. We are very pleased to be able to offer you our extensive range of ‘Contractor’ tip trailers. These trailers are capable of many years of relentless operation. Our customers appreciate the features that we have added following 20 years of development work.
What we have aimed to achieve is:-
- a very robust trailer capable of handling all operations whilst maintaining the ability to be as diverse as possible
- a functional trailer that exceeds your expectations in the field.
- that the engineering, design and aesthetics of the machine prove to give you maximum longevity
- the price ensures that the unit is competitive whilst considering ‘like for like’
- that the optional equipment ensures all customer requirements are catered for
Features

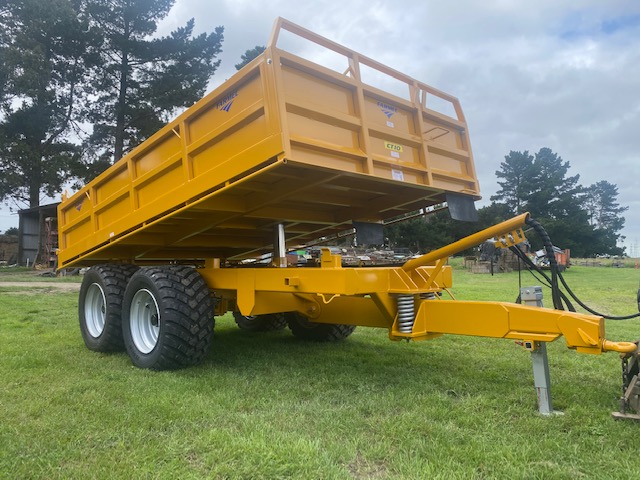

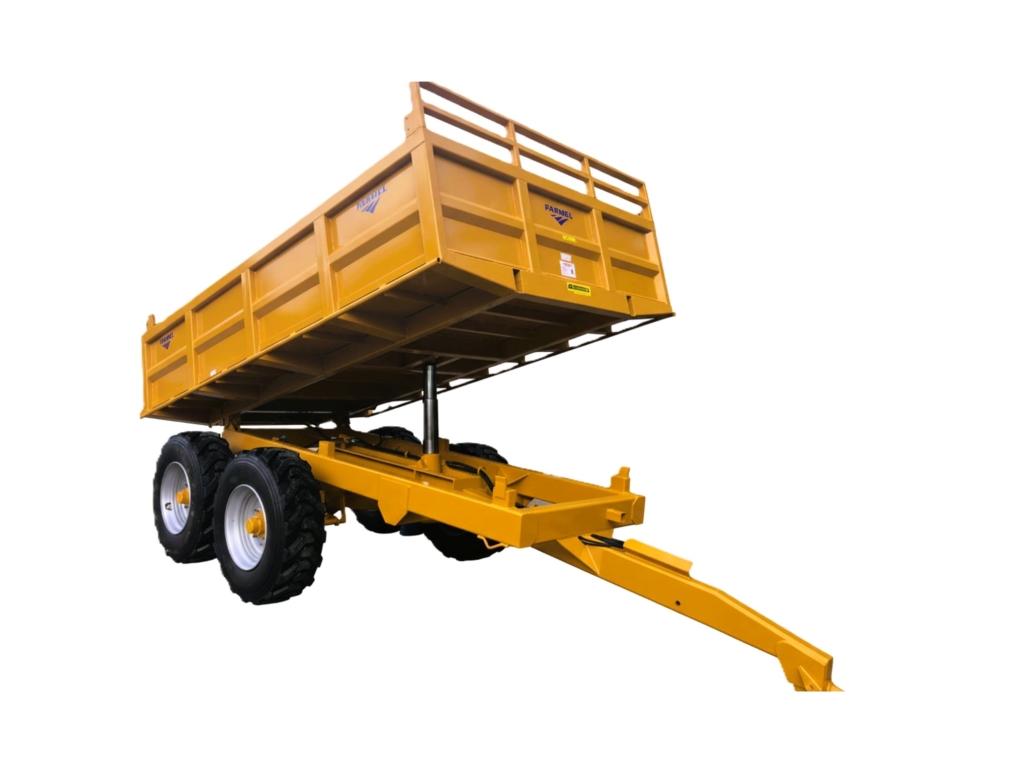

The ‘Contractor’ range of trailers is designed ‘super’ heavy duty (based on what some manufactures call heavy duty). These trailers are designed to shift 12 tonnes of material every 15 minutes 12 hours a day 7 days a week. The CT range all have fast tipping bodies, via the multi staged rams that give 60 degrees tip with minimum (27 Litres) oil usage.

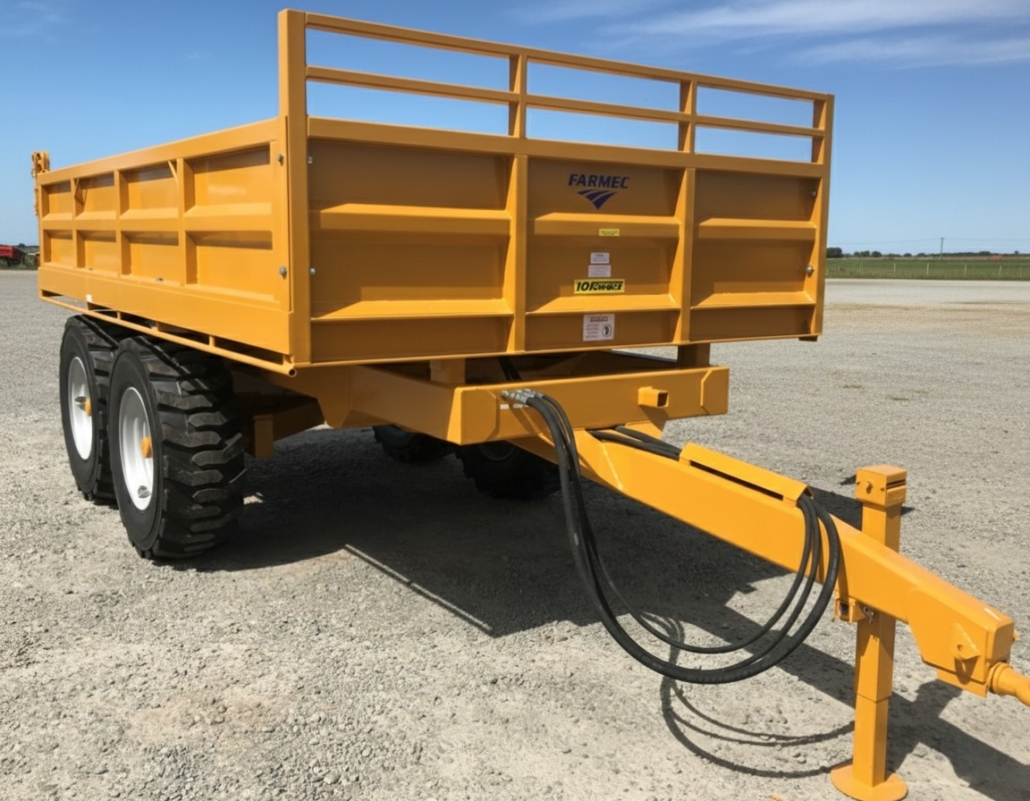

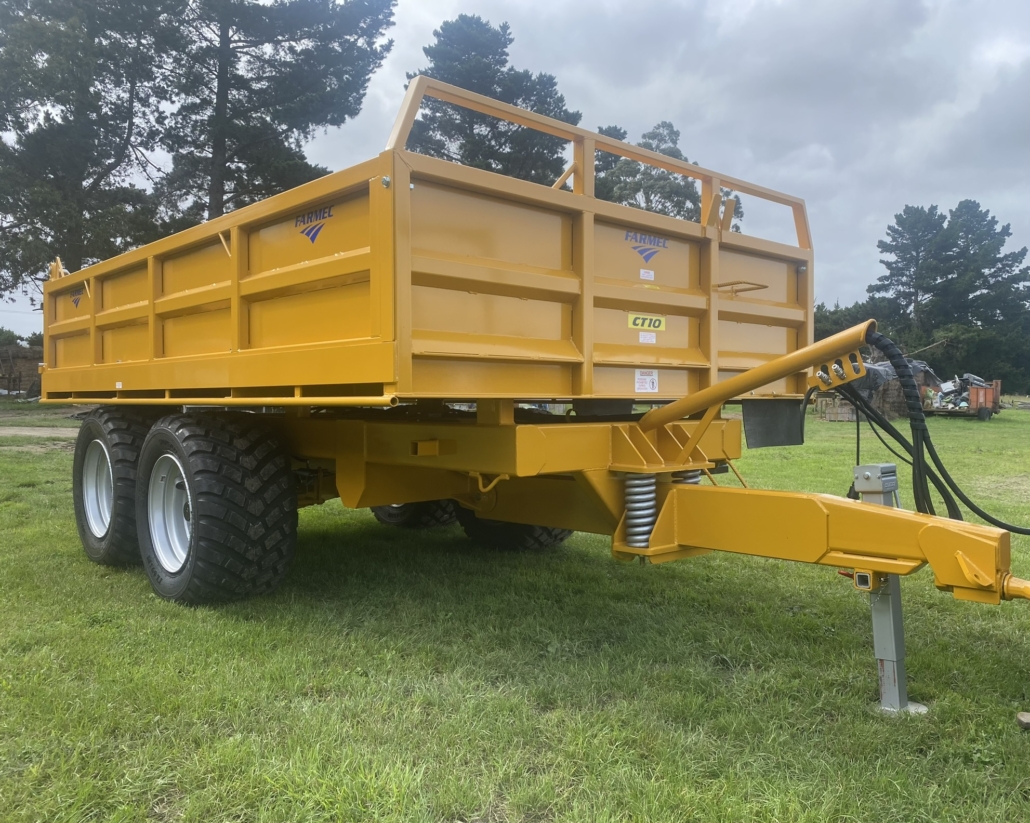

The full RHS chassis with single beam drawbar member gives high strength and maximum turning circle. All of these trailers are sold with heavy duty walking beam tandem axle, oscillating on a continuous 75mm high tensile pin with 6 easy grease-able bushes centrally lubricated as standard.

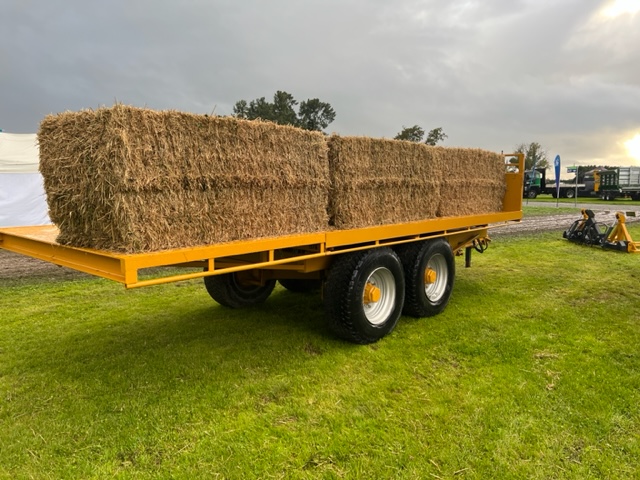

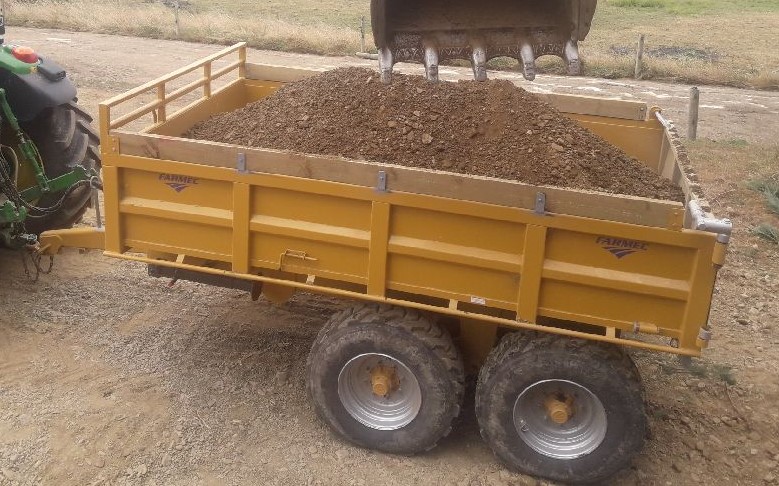

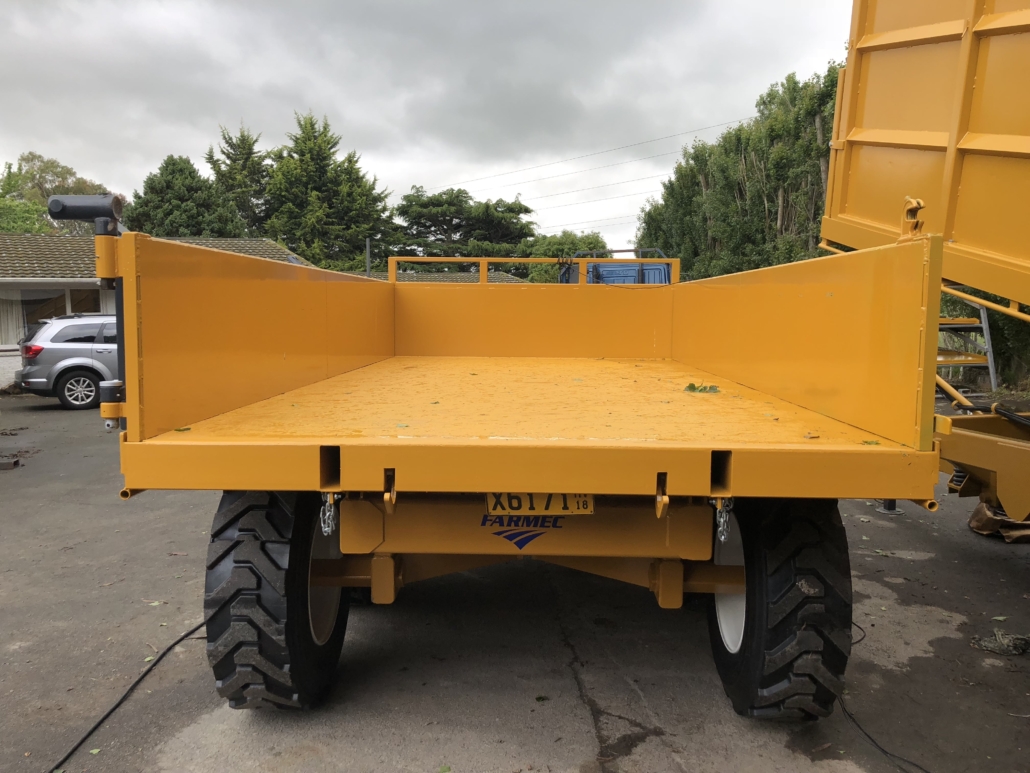

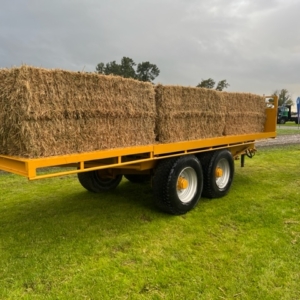

With 2 choices of body 1) mono lift one-piece sides are for customers that require the flexibility of being able to reduce the trailer to a flatbed for those ‘other’ jobs 2) fully welded monocoque (bath tube) for continuous bulk haulage work. Fixed headboards with extension rails are standard.

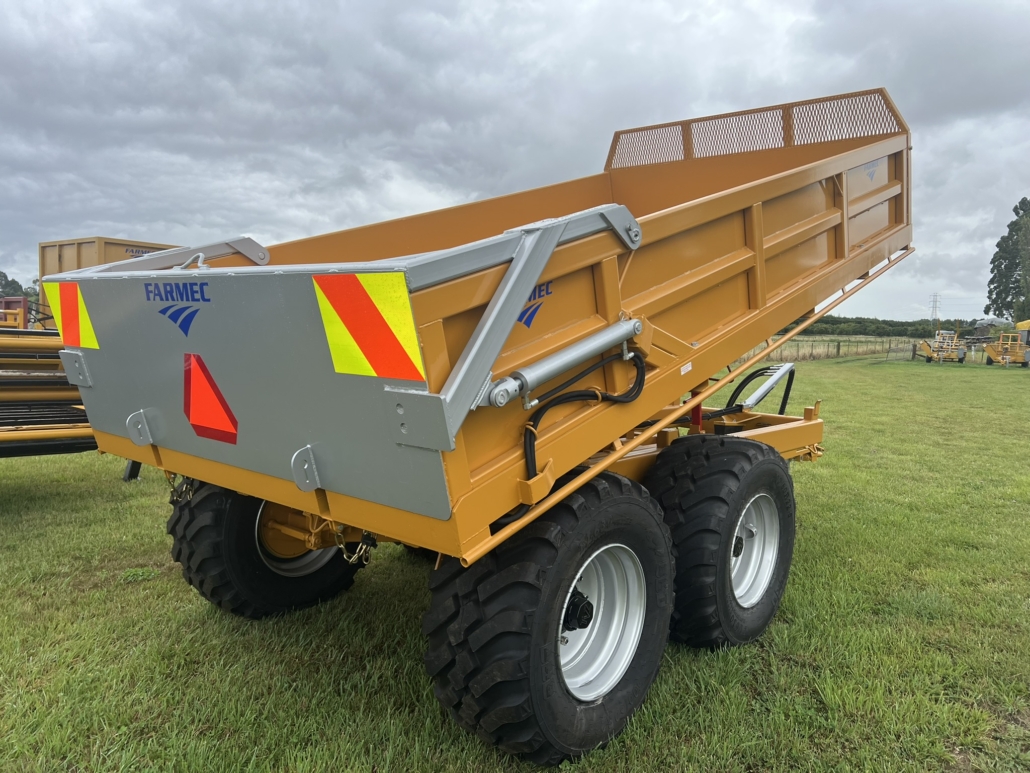

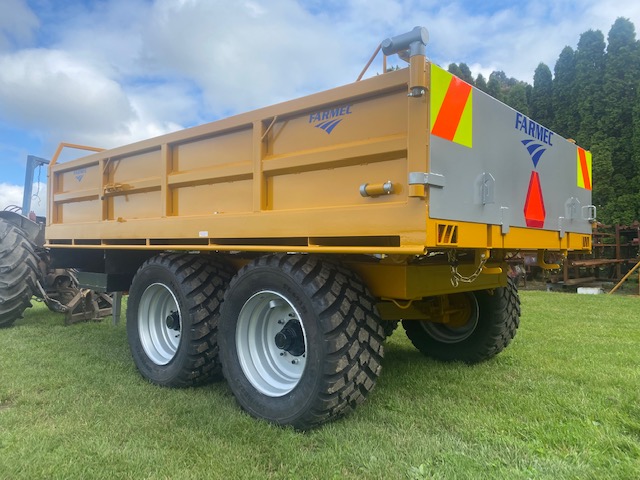

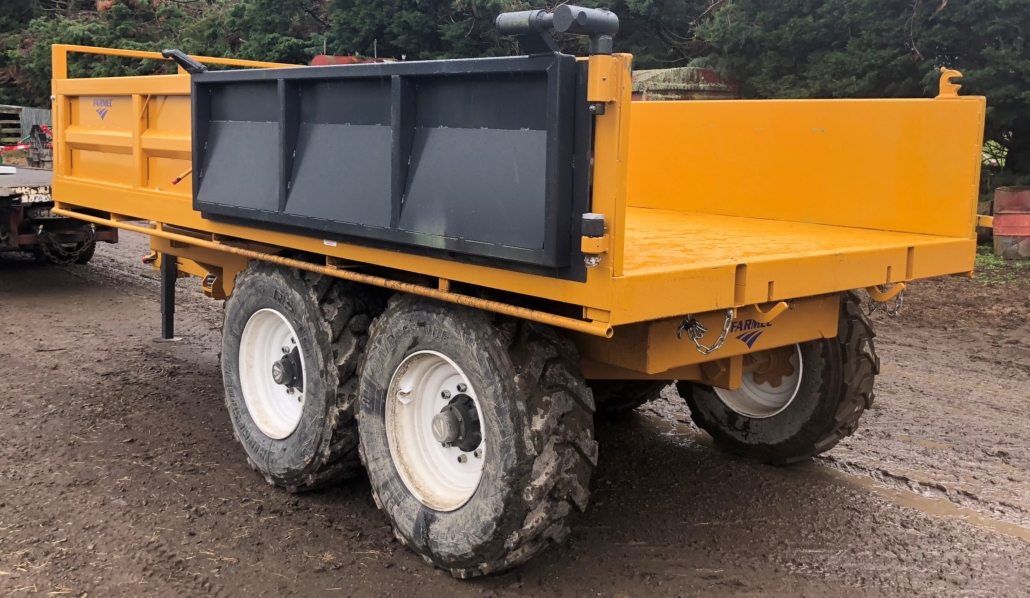

Tailgates are removable on both body types, whether a full hydraulic up and over door is fitted or just a standard top-hinged door or the double swing type door.

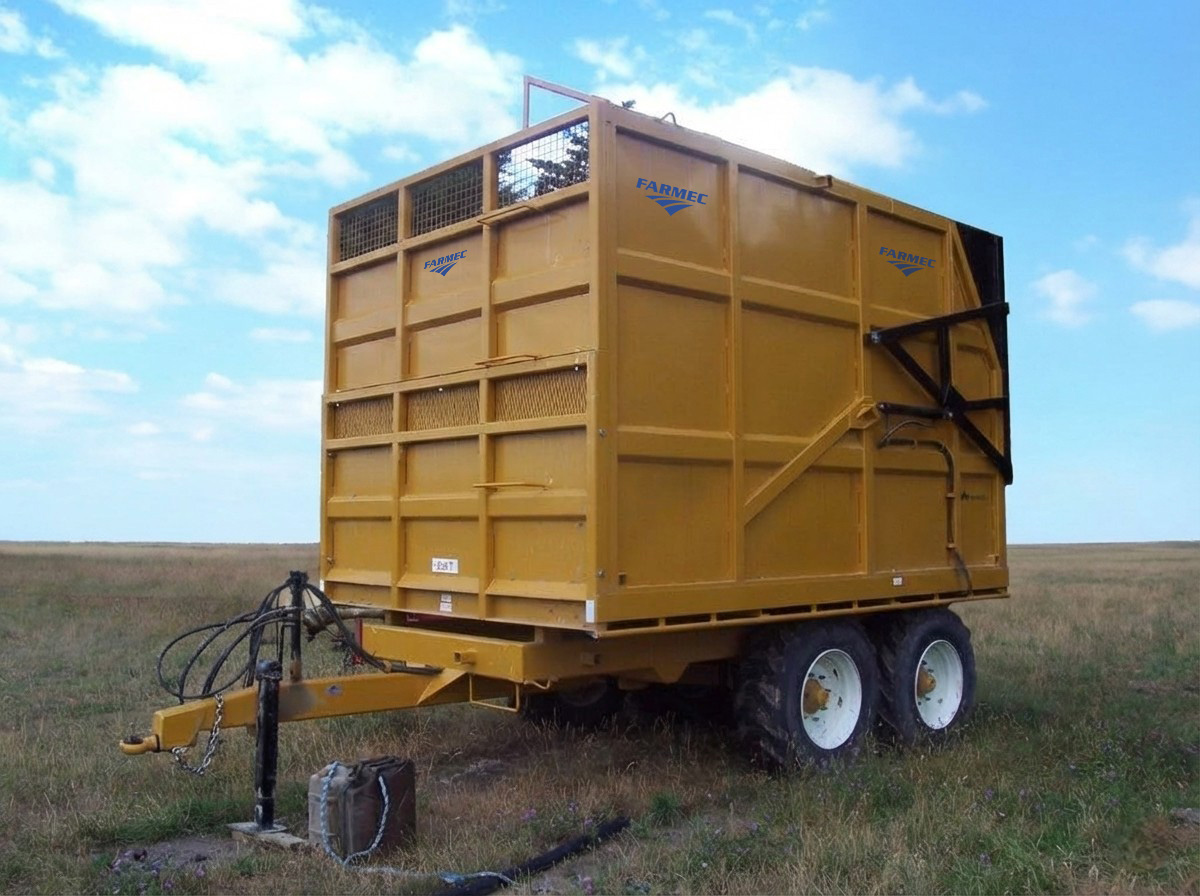

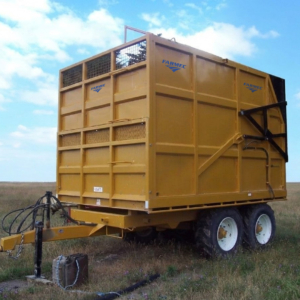

The silage kit option is available for customers wishing to use the trailer for the harvest periods, hauling chopped silage from the paddock to the clamp. Available as a one-piece lift-off kit or individual bolt-together panels. It is fitted with a mesh window at the front that folds (optionally) down, and full rear doors with one third mesh centrally positioned for ease of empty reversing.
Wheel options are as standard 15R x 22.5 ideal for road work or floatation the 500/45 x 22.5 is an ideal swap-over tyre or at point of order we can fit 500/60 x 22.5’s. For radial options we offer 550/45R x 22.5 or the bigger 560/60R x 22.
