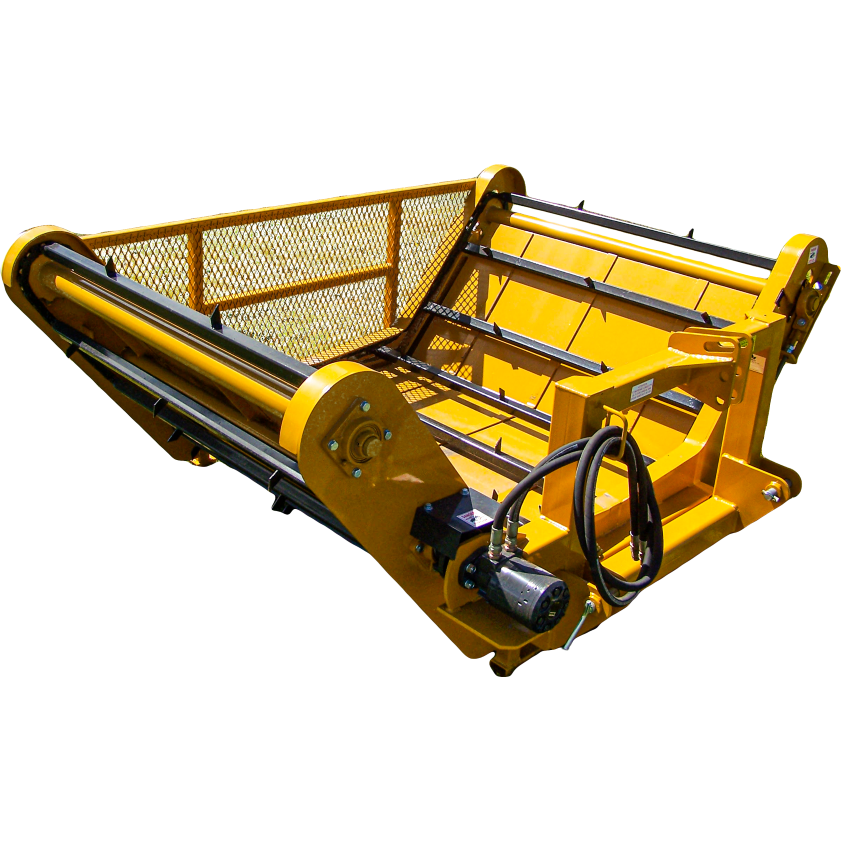

Farmec Single bale linkage feeder ‘R1-0’

Categories: ,

Description

Thank you for considering Farmec for your bale feed-out requirements. With an extensive 5 models to choose from these feeders are ready for the arduous work ahead with features that will give you peace of mind for years to come. Sold for over 40-year duration they certainly have lasted the task…

i)             a functional machine that exceeds your expectation in the field.

ii)            that the engineering, design and aesthetics of the machine prove to be optimum

iii)           that the price ensures that the unit is competitive whilst considering spec for spec

iv)           that the optional equipment ensures all customer requirements are covered

Features

  • ►All Farmec feeders are bi-directional feed, so unlike other brands you are able to feed on either side on the machine, with either fast un-rolling with the roll or slower teasing against the roll.
  • ►Floor chains are heavy duty 2” pitch as standard, this is 6,800lbs breaking strain which is better than a lot of the 3” and as well as increased strength and has a very competitive replacement cost it also reduces motor torque requirements.
  • ►Self-loading forks which easily fit to the tractor link arms via the double lug jaws with Cat II pins, these are conus machined 60mm solid bar with one tine 100mm longer than the other for ease of aligning.
  • ►The heavy duty hi-torque American hydraulic motor ensures that every bale will be fed out. The motor connects via the self-meshing heavy duty drive dogs allowing for quick attachment (there is no need to get off the tractor seat).

Specifications

CAPACITIES                                    :           1 bale

CHAMBER TYPE                            :           Double high curve

BALE TYPES                                    :           Round bales / chopped                                                                                bales chopped or long cut

FEED TYPES                                   :           Silage-Hay-Straw anything

CHASSIS                                          :           Fully welded RHS

FLOOR                                              :           Full steel floor 1.6m Corten                                                                           non rust 350G

LOADING                                          :           Via 3-point linkage                                                                                  mounted tines 60mm Ø 1040G

FLOOR CHAIN                                :           2” pitch 4 peined with                                                                         welded bars and 50mm spikes –                                                                with 6,800lbs breaking each chain

OIL REQUIREMENT                       :           Minimum of 32 litres /                                                                         minute – Parker TG405 motor

HYDRAULIC REQUIREMENTS   :           1 x double acting

SHIPPING SPEC                             :           Length 2.3m x Width 2.0m                                                                           x Height 1.0m (packed)

TARE WEIGHT                                 :           660kgs

Extras

Forks bale stop                         :  $622 – prevents cut silage coming out and also if feeding beet or pit silage contains product in cradle

Fixed trough extension           :   $2,220 – ideal for feeding into troughs

Hydraulic trough extension   :  $4,750 – prevents any transport issues with extension
