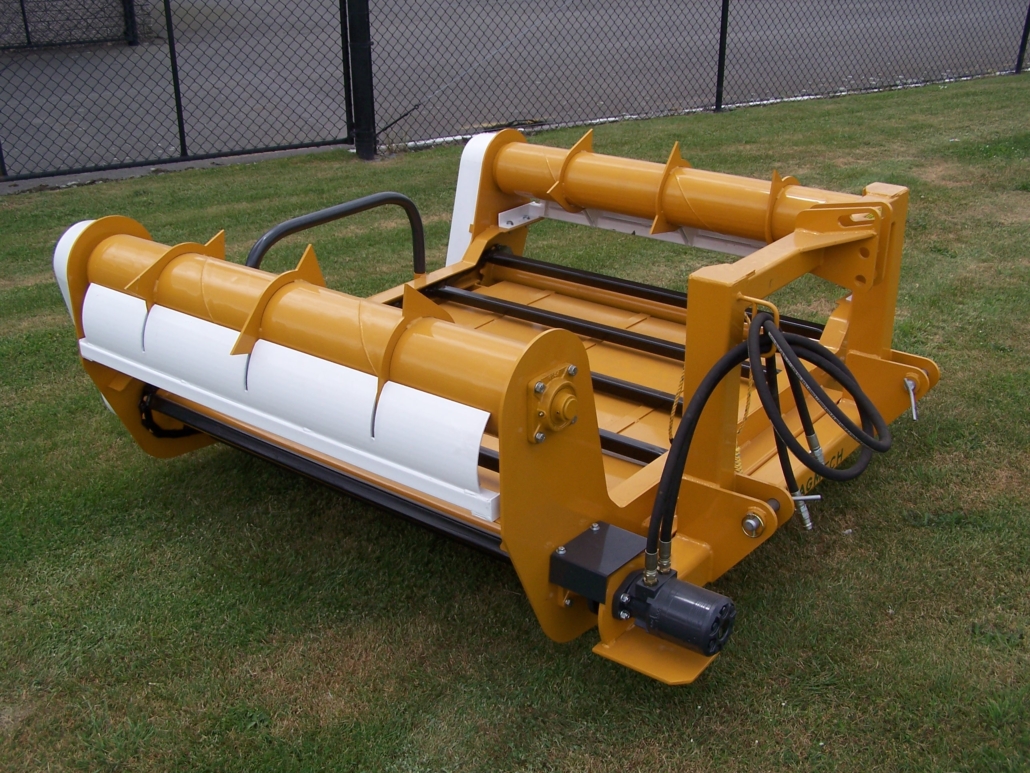

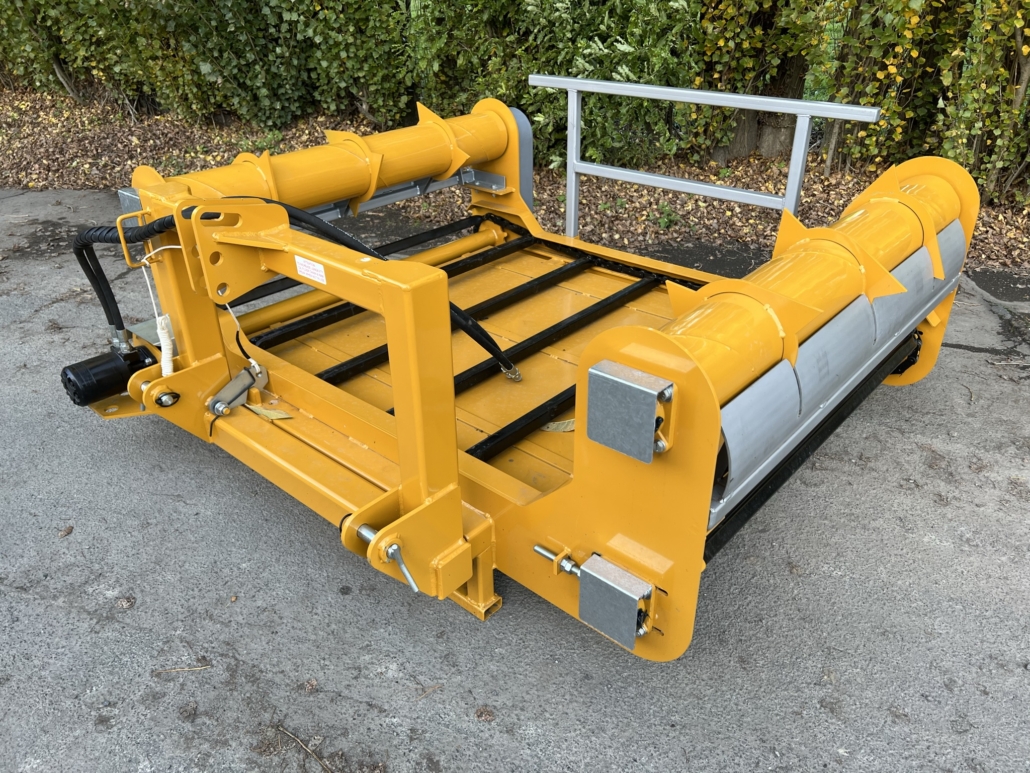

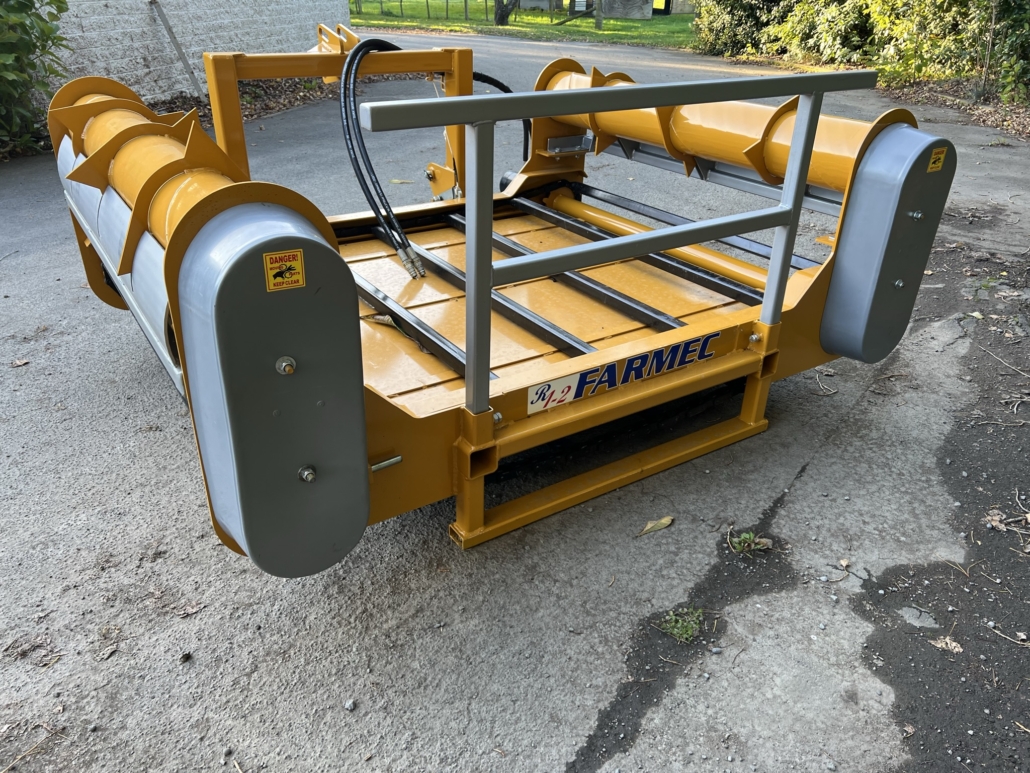

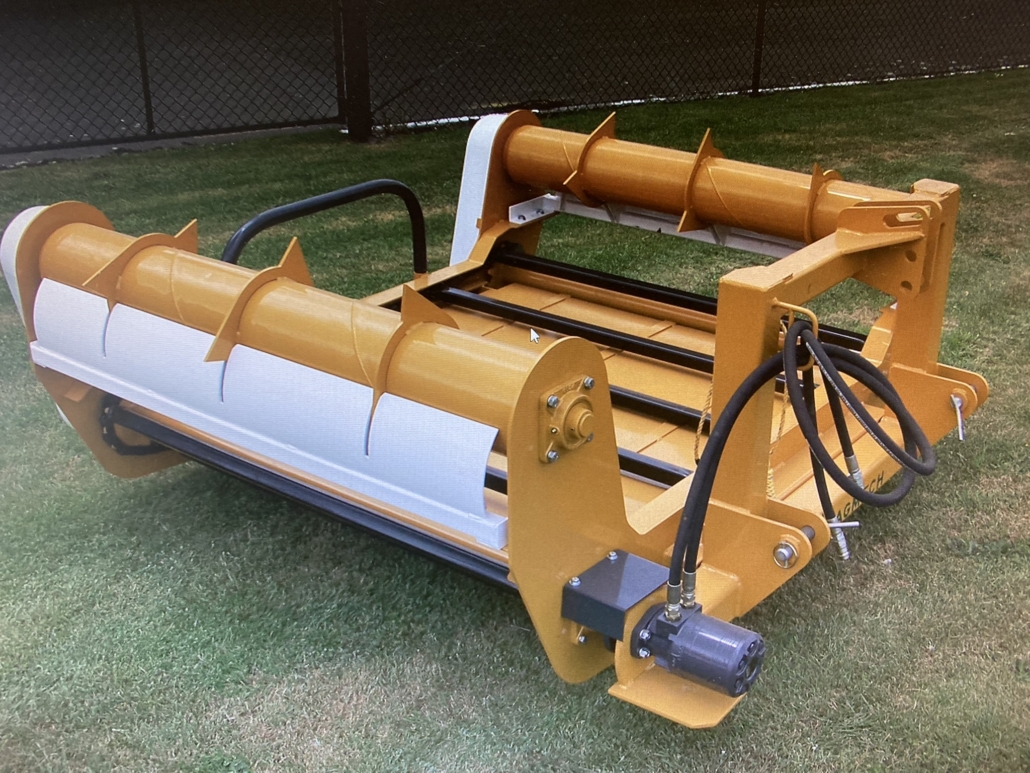

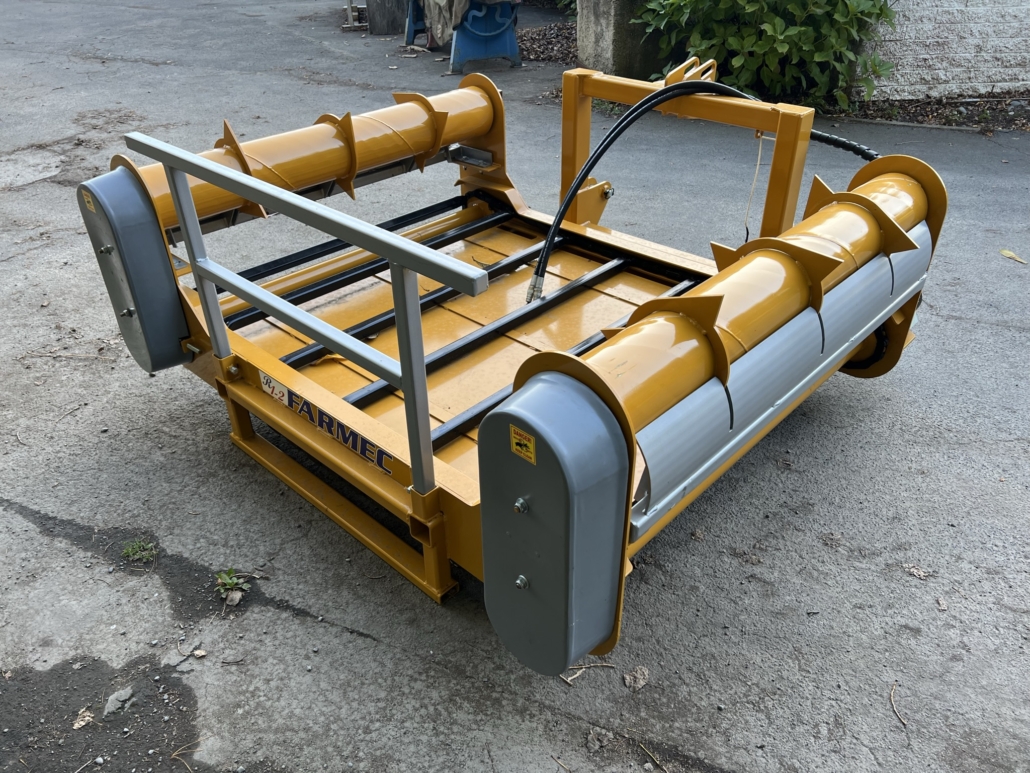

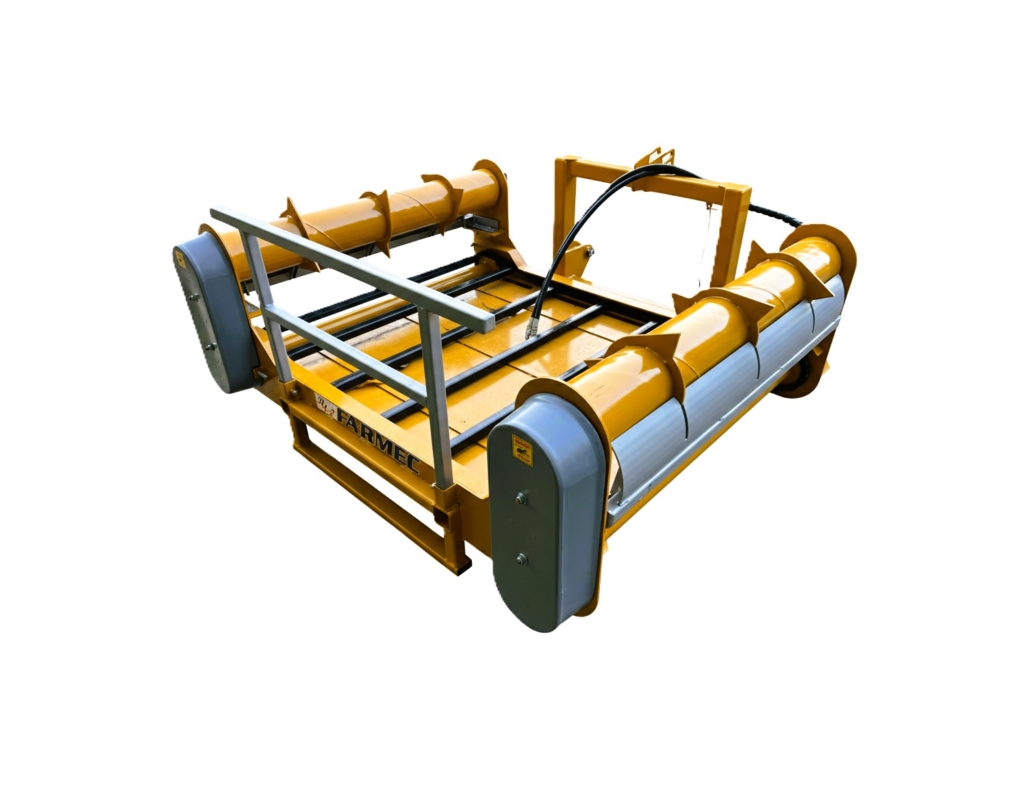

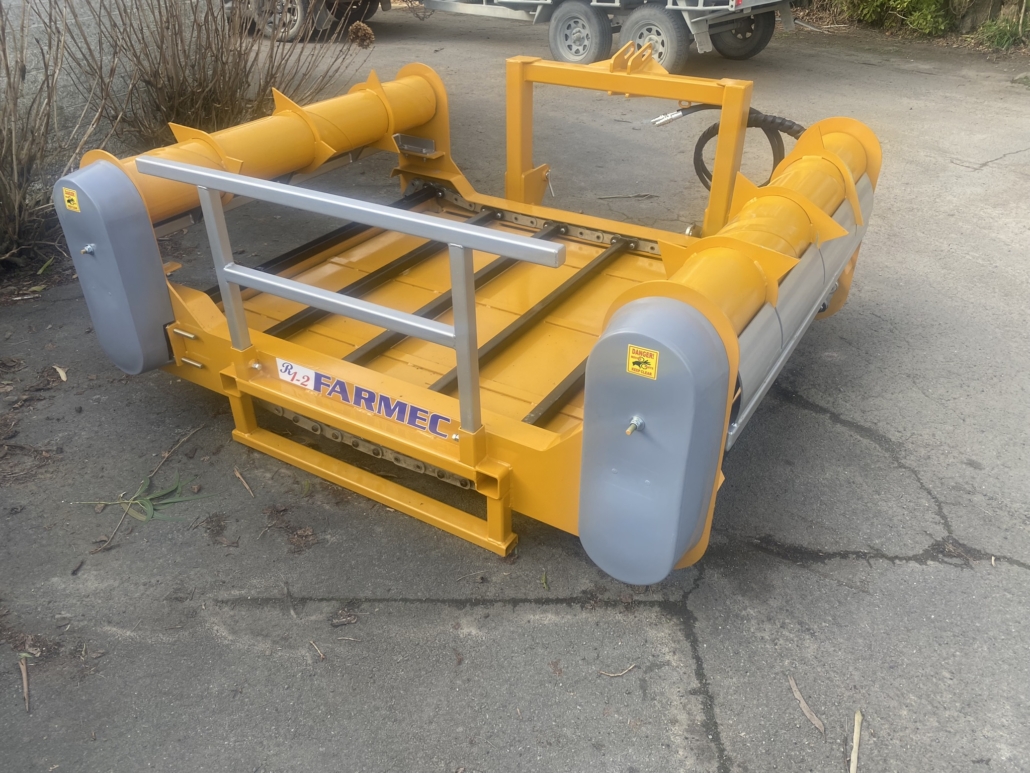

Single Bale Linkage Feeder ‘R1-2’

Features

• All Farmec Linkage feeders are bi-directional feed, so – unlike with other brands – you can feed on either side of the machine. With either fast un-rolling with the bale or slower teasing against the roll.
• Fitted with 2 x rota shredders with cleaning comb. This feeder offers aggressive action on tight bales, very common prior to the introduction of knives in the baler fitted with simple RHS frame headboard. This keeps the product contained and an optional frame that can fit on the fork frame is also available if required.
• Floor chains are heavy duty 2” pitch as standard. This is 6,800lbs breaking strain which is better than a lot of the 3”. As well as increased strength and a cost advantage in the replacement, it also reduces motor torque requirements due to the articulation of 2” over 3” chain. We use a pressed 40 x 40 RHS with aggressive spikes to ensure uniformed feed-out.

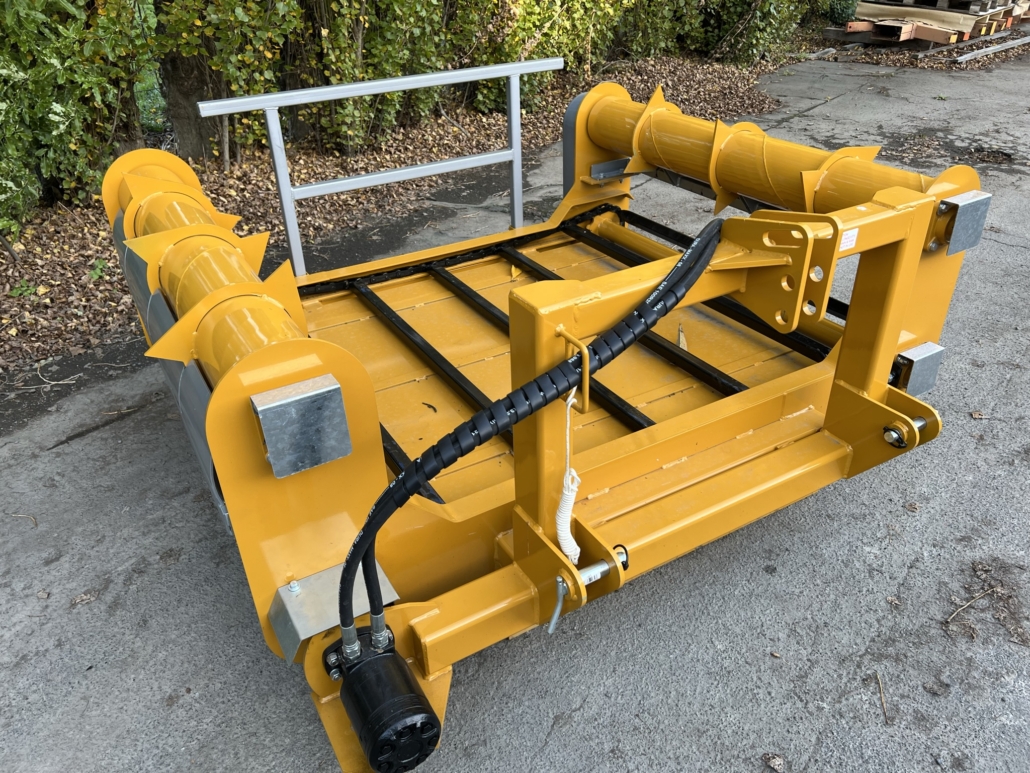

• Self-loading forks which easily fit to the tractor link arms via the double lug jaws with Cat II pins. These are conus machined 60mm solid bar with one tine 100mm longer than the others for ease of aligning.

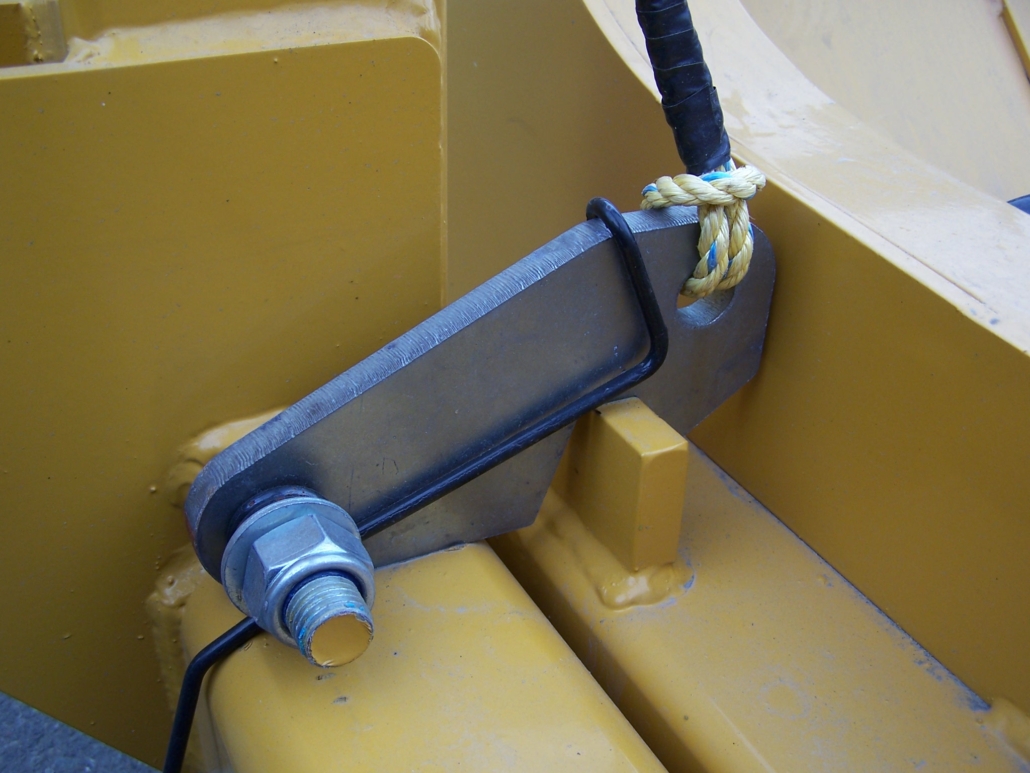

• The heavy duty hi-torque American hydraulic motor ensures that every bale will be fed out. The motor connects via the self-meshing heavy duty drive dogs allowing for quick attachment (there is no need to get off the tractor seat). With a quick release rope to the tractor cab or hydraulic locking if needed on steep farms.
