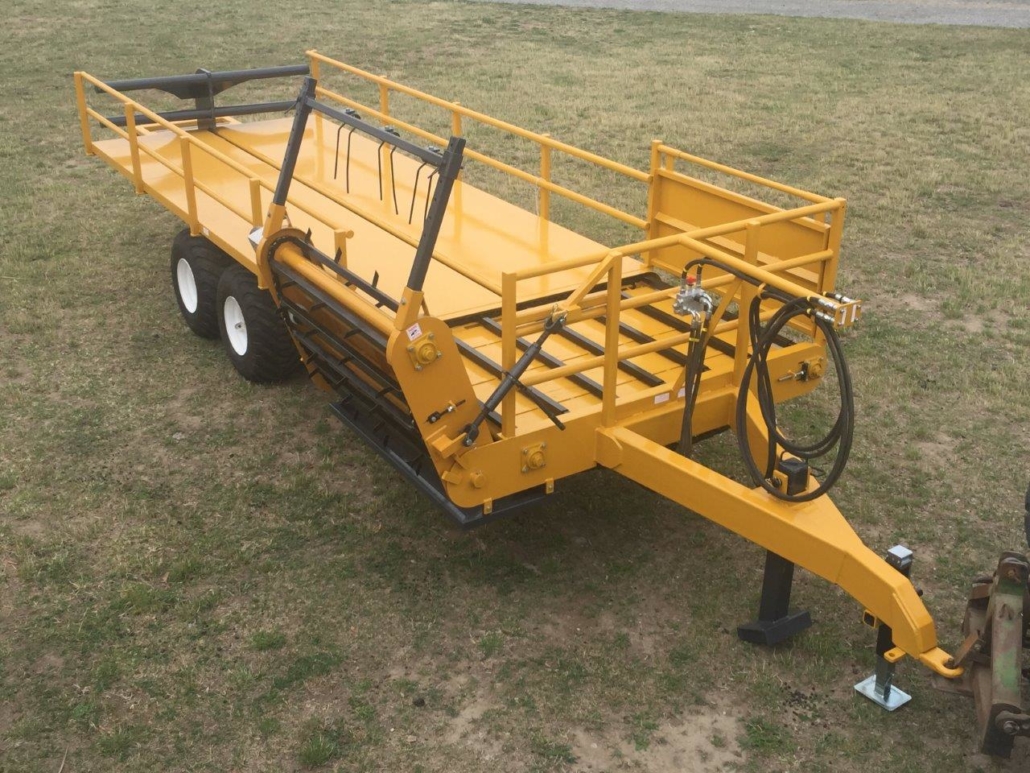

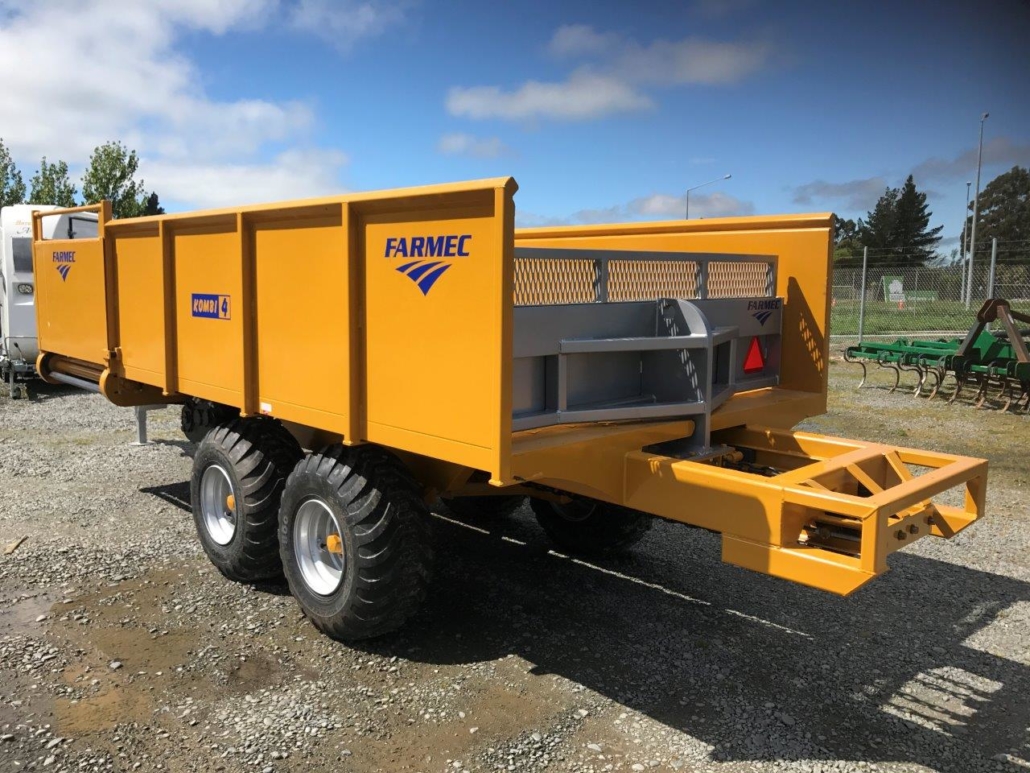

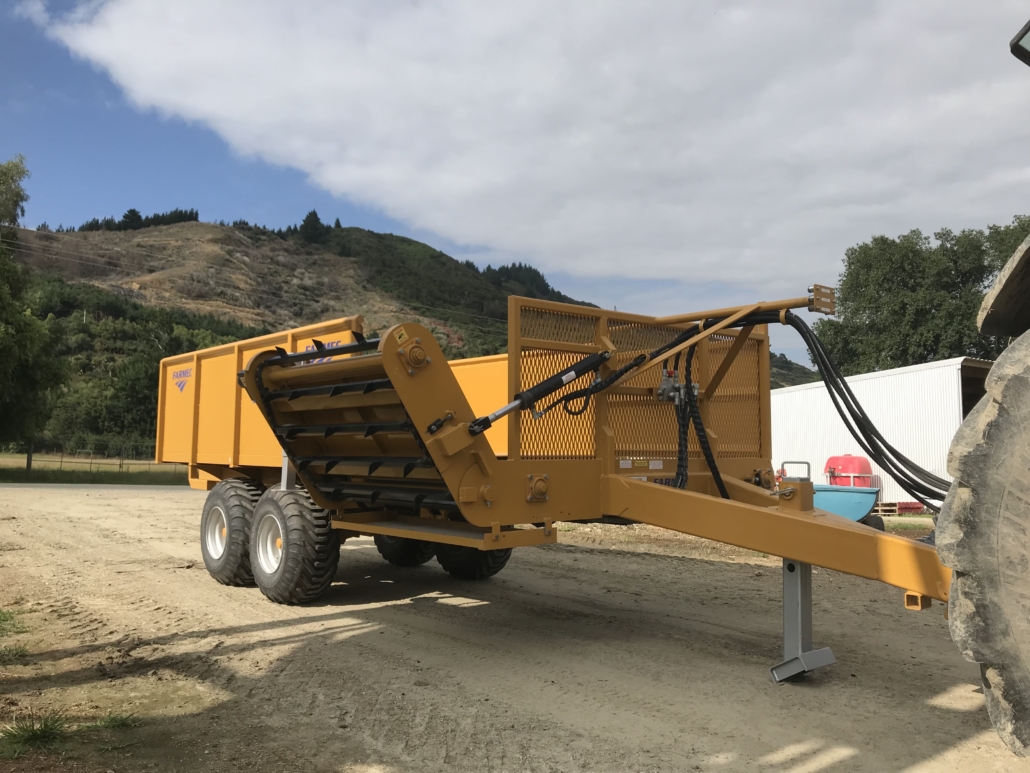

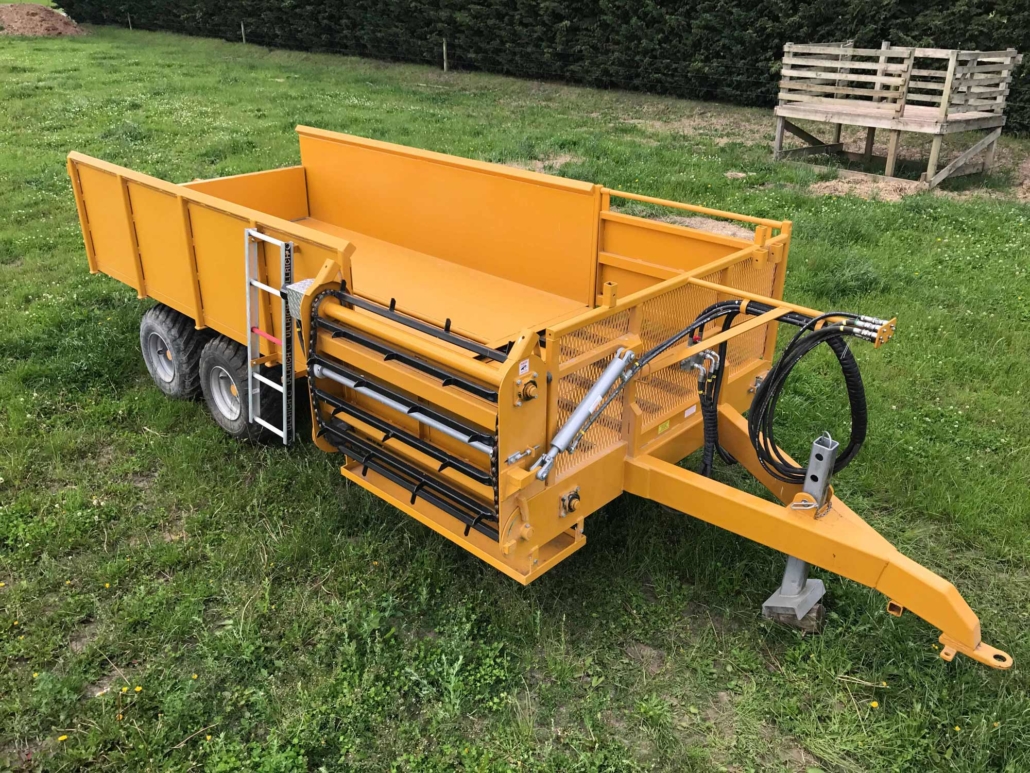

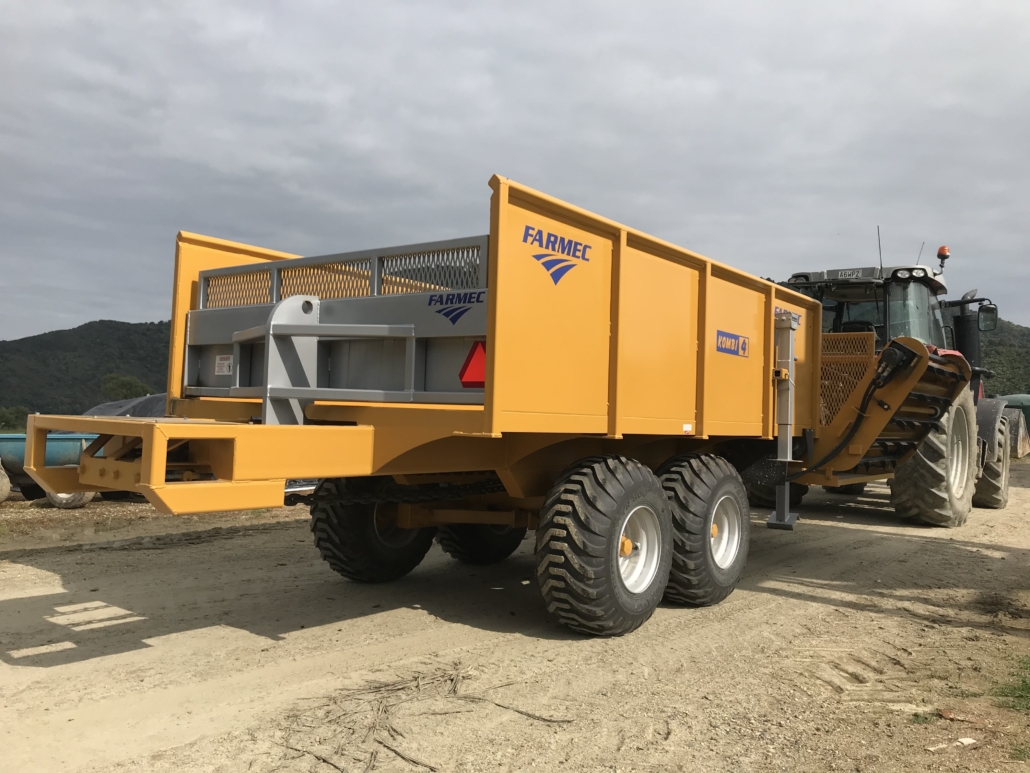

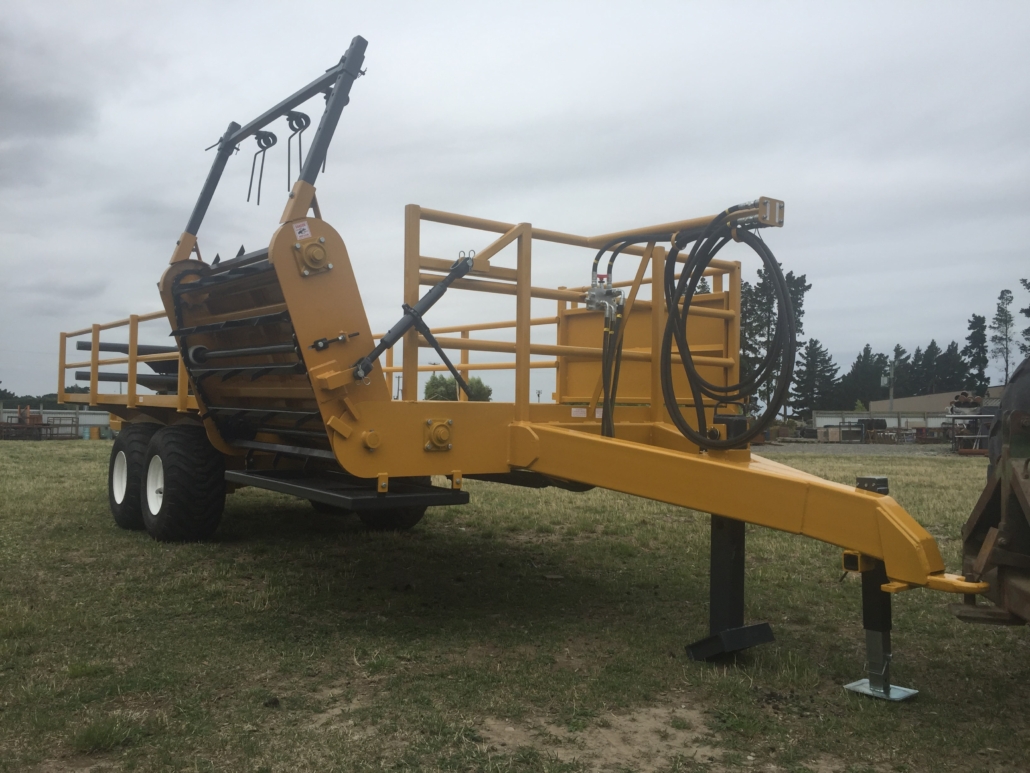

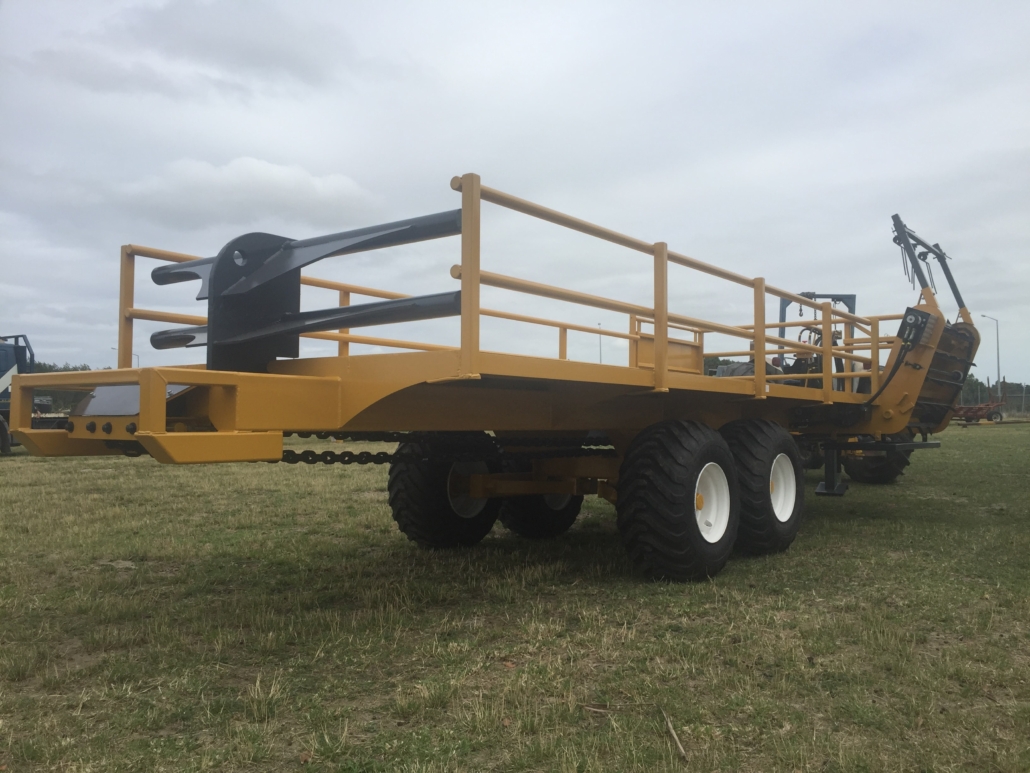

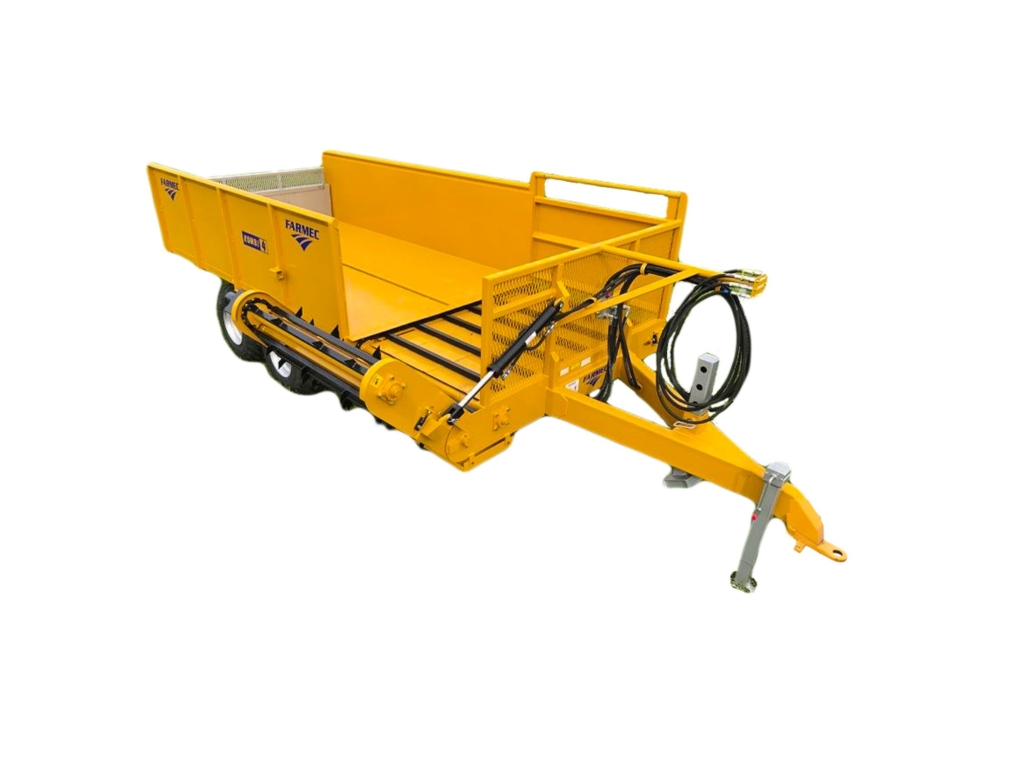

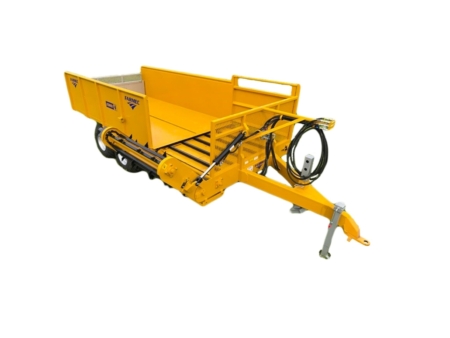

Model shown: Kombi 4B
Delivery time is currently to confirm.

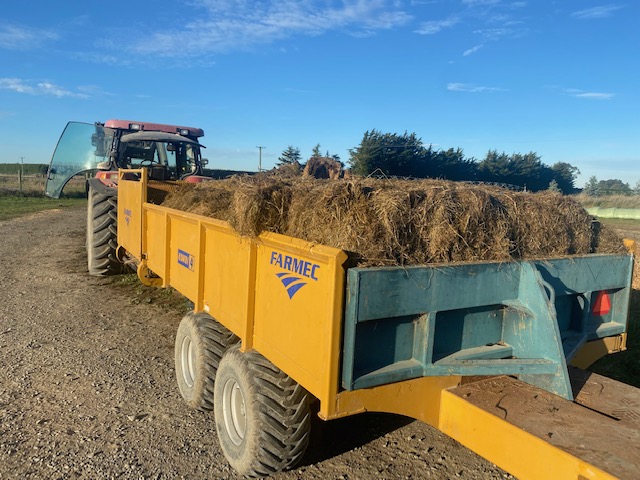

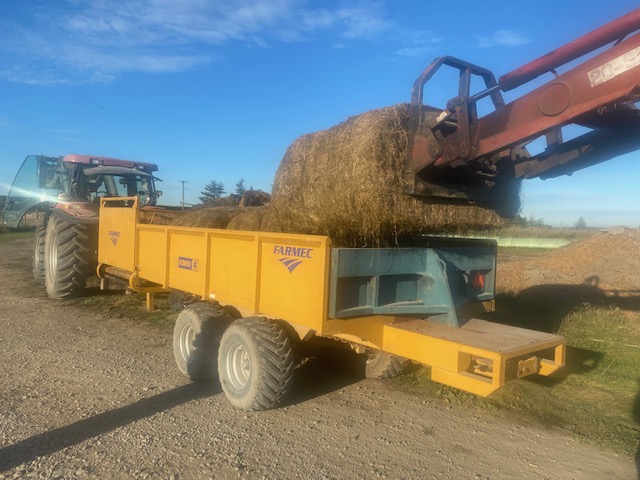

Thank you for considering our new Farmec 4 bale Kombi feeder for your feed-out requirements, we are very pleased to be able to offer you this latest addition. These feeders are capable of feeding out fine chop silage, all types of round bales and all square bales as well as beet. They are extremely well built with many features that set the new Farmec Kombi ahead of its competitors.
Very heavy-duty A frame drawbar that will take any load:
– 60mm drive shaft giving 30% increase over competitors
– Italian oil bathed gearbox eliminating all breakdowns and spare parts
– 600mm or optional 900mm one piece fully welded body
– The heaviest variable height landing leg ever offered
Hydraulic requirements for standard feeders:
– Tease elevator & Floor chains = 1 x double remote
– Shuttle pusher = 1 x double remote
– Hydraulic tilting elevator = 1 x double remote
|
BODY TYPE |
3mm steel flat floor with reinforced sides nominally braced with RHS top shock rails. |
|
FEED OUT |
Via the direct driven elevator feeding to the off side. Bidirectional feed is achieved via the swinging door which is ideal for beet. |
|
ELEVATOR CONTROL |
Hydraulic variable angle to 60° degrees. |
|
CAPACITIES |
12m³ of pit silage with a slight heap on 900mm side. |
|
4′ ROUND BALES |
4 up to 6’ diameter. |
|
4′ x 3′ SQUARE BALES |
4 at 7’ long (as a single layer). |
|
CAPACITY |
6,000kgs. |
|
BODY LENGTH |
3,600mm + 1.4m chamber. |
|
BODY WIDTH ID |
6,920mm. |
|
OVERALL WIDTH |
2,100mm internal. |
|
SIDE DEPTH |
2,440mm at widest point. |
|
AXLE TANDEM |
70mm / 6 stud brakeless. |
|
WHEELS TANDEM |
400 x 15.5 floatation wheels. |
|
SUSPENSION |
Tandem walking balance beam. |
|
LOADING HEIGHT |
980mm approx + 600mm side height. |
|
CHASSIS |
200 x 100 x 6mm fully welded chassis. |
|
HEADBOARD |
Fixed headboard with 3mm agrimesh. |
|
BODY |
Sheet steel 3mm floor and sides. |
|
DRAW BAR |
Rigid drawbar 1,450mm fitted with delivery jack. |
|
TOWING EYE |
Fixed eye as standard or optional swivel eye $250. |
|
LOADING FOOT |
This optional drop down foot is ideal to rest the unit on when loading, it digs into the ground assisting when rear loading, used in conjunction with a quick hitch. |
|
FINISH |
Blasted, etch base zinc high build primer then dried. Followed by 2 x gloss coats of gloss paint. |
|
COLOUR |
CAT yellow and silver. |
