Kombi 2 Bale

$36,444

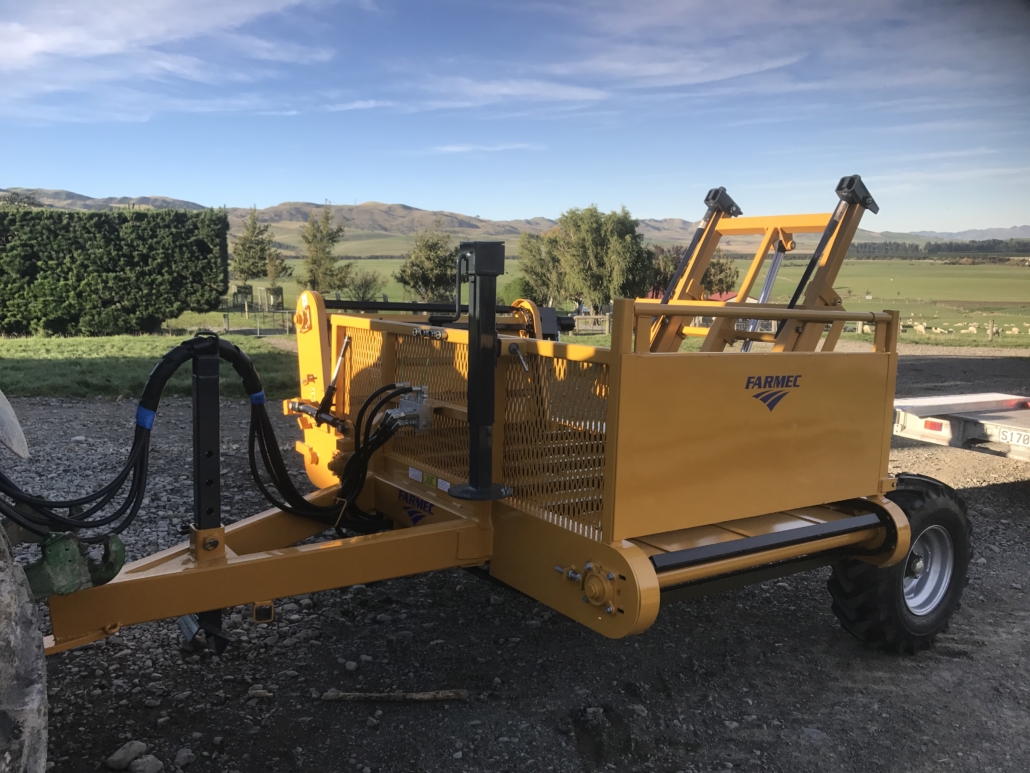

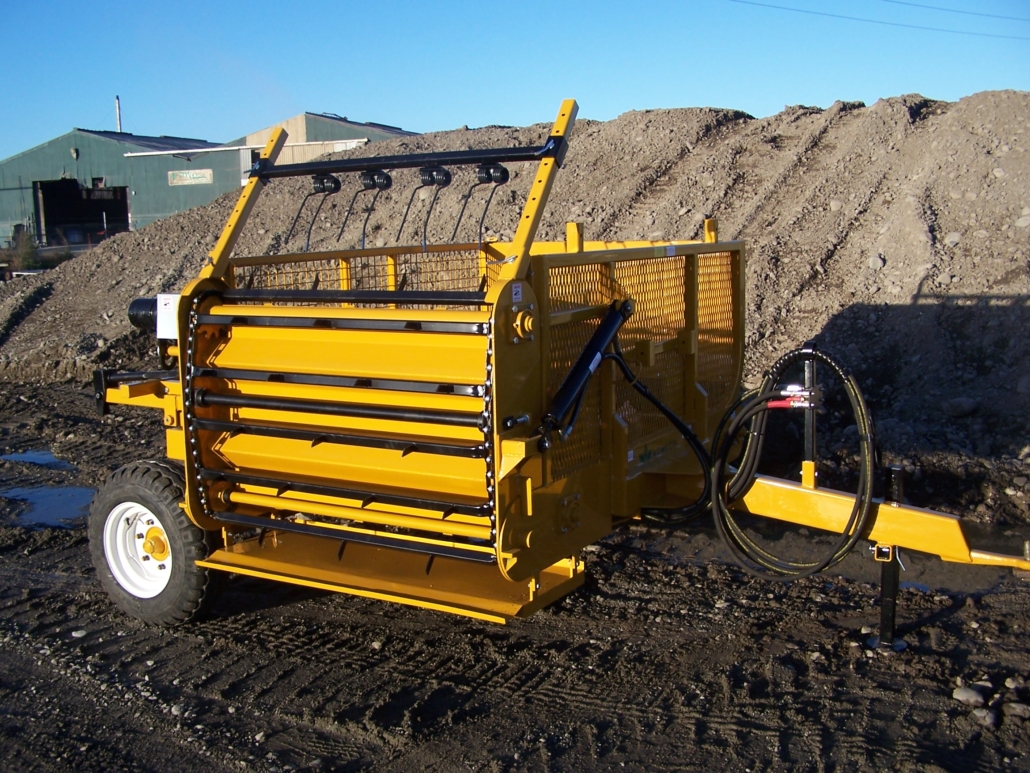

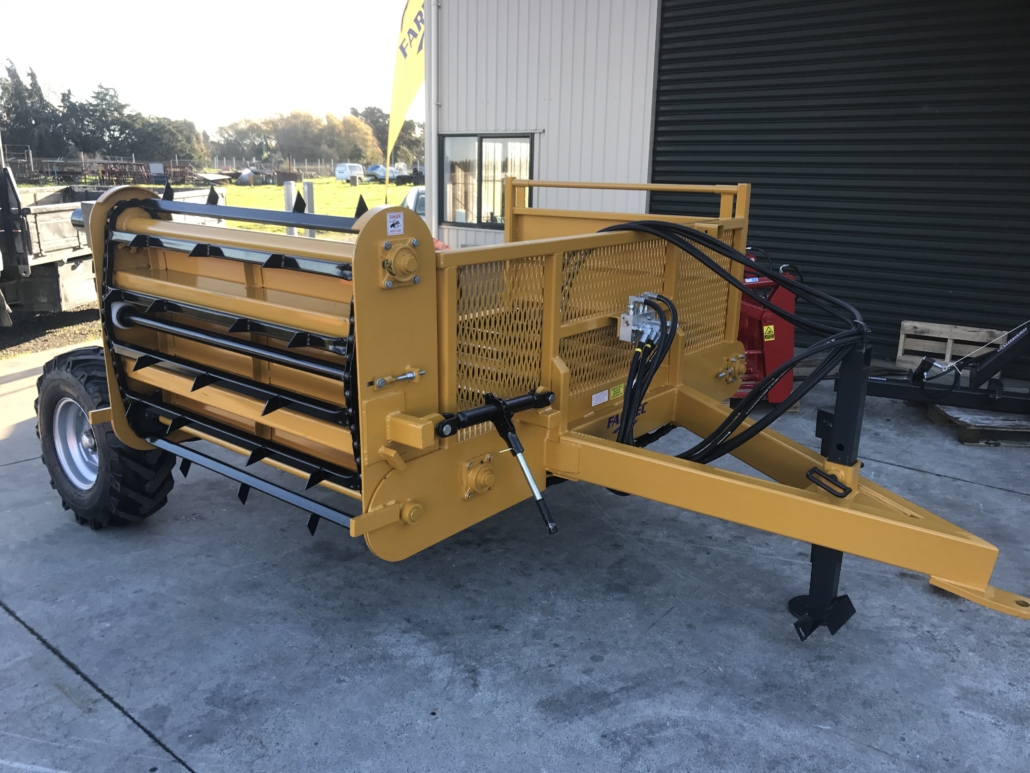

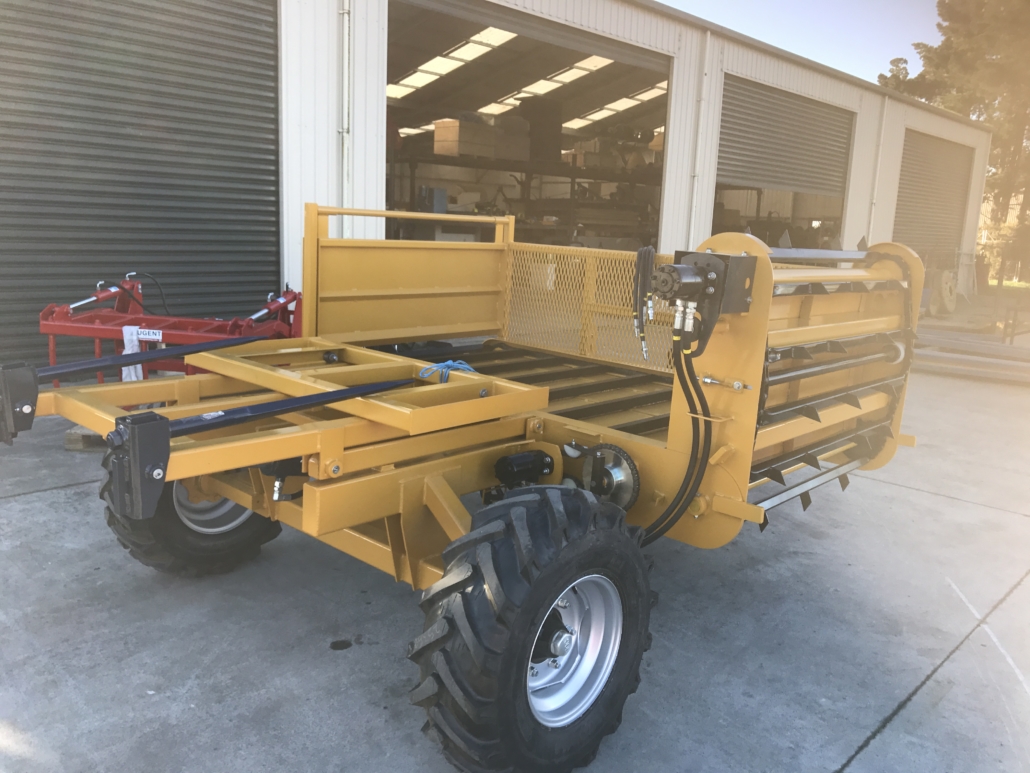

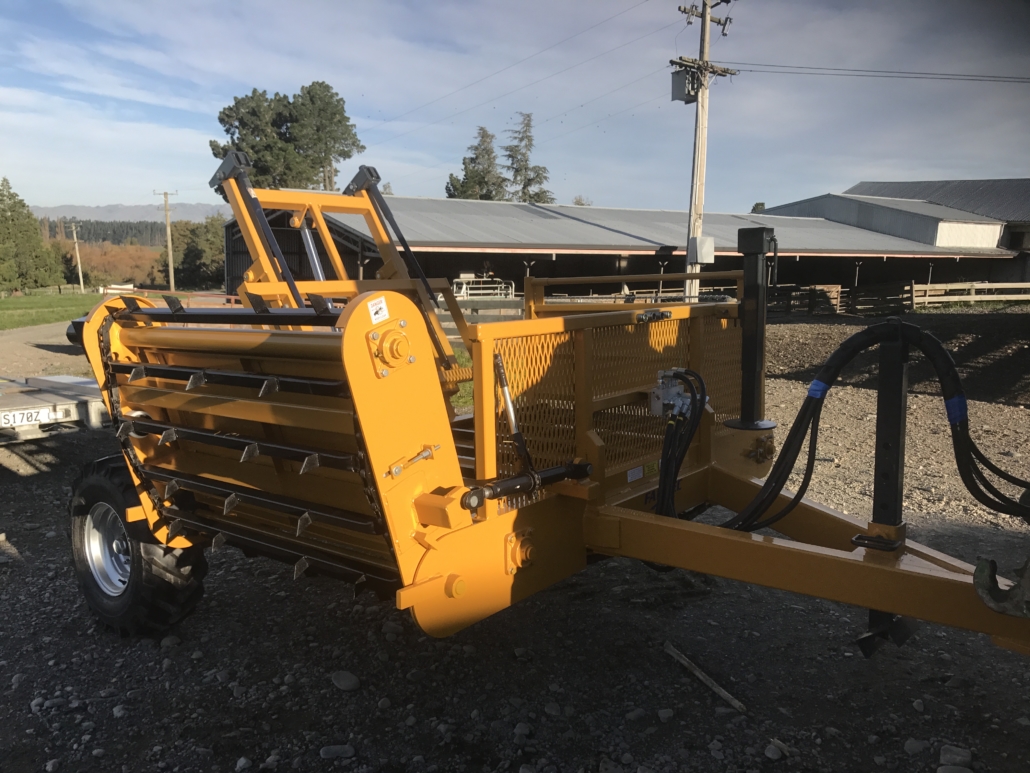

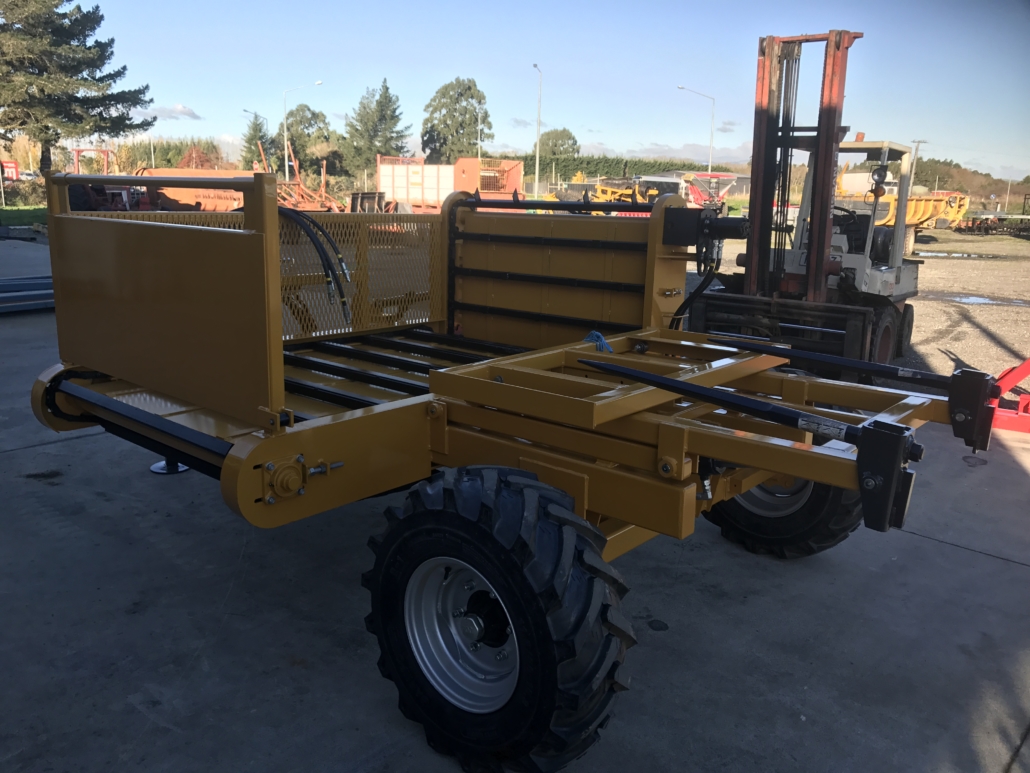

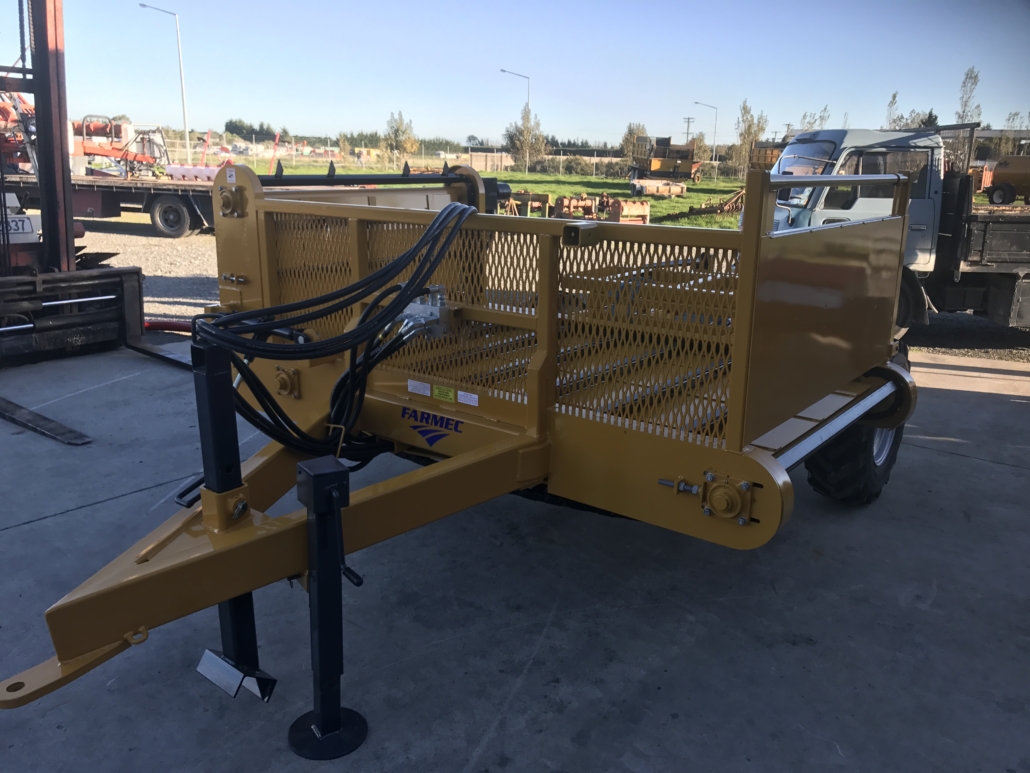

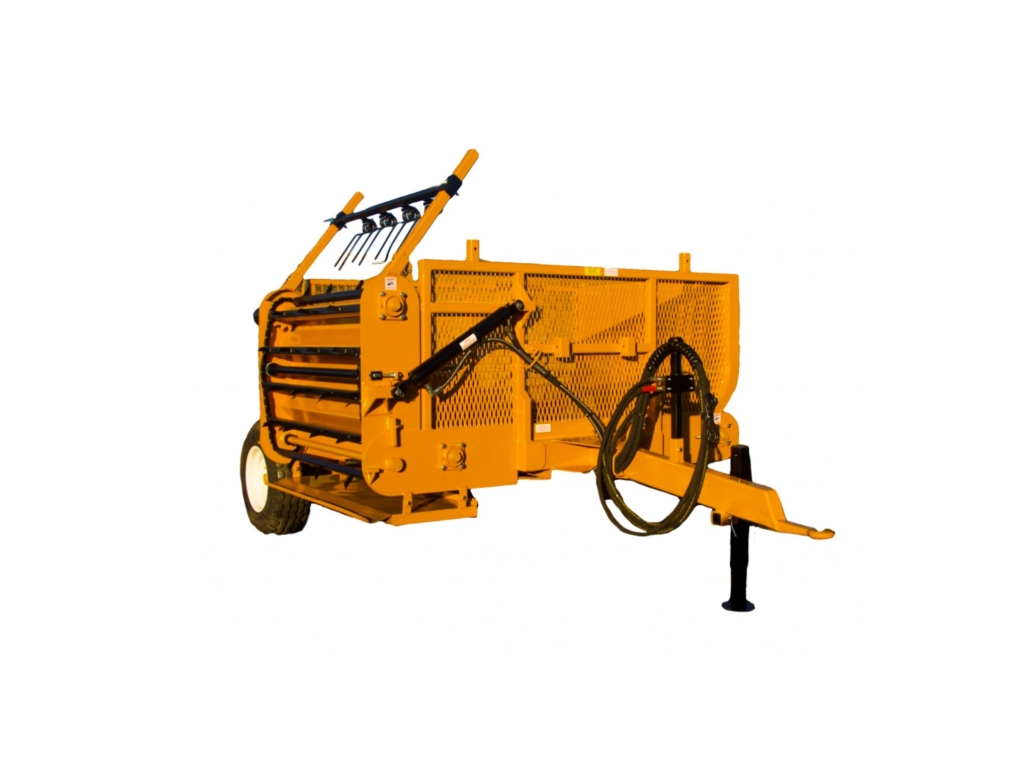

Model shown: Kombi 2 bale

Delivery time is currently to confirm.

Thank you for considering the Farmec 2 bale feeder range, with 3 models to choose from these feeders are ready for the arduous work ahead with features that will give you peace of mind for years to come.

Categories: , ,

Description

Thank you for considering our Kombi 2 Bale Feeder for your feedout requirements, we are very pleased to offer you this latest addition. These feeders are capable of all types of round and square bales, as well as beet and fine chop silage. They are the most advanced feeder on the market with the teasing elevator running on a separate hydraulic motor to the cross-floor motor. Combining a tractor-controlled hydraulic tilting elevator, the operator can achieve a desired row better than all other feeders on the market.

Features

The Farmec 2 Bale Kombi Feeder is a very advanced 2 bale feeder. Not only does it have the teasing elevator running on a separate hydraulic motor to the cross-floor motor – it combines a tractor-controlled hydraulic tilting elevator, which allows the operator to achieve a desired row better than all other feeders on the market.

Specifications

BODY TYPE

3mm steel flat floor with reinforced sides nominally braced with RHS top shock rails.
FEED OUT

A special load sensing hydraulic block operates both the floor and tease elevator from 1set of tractor remotes – it gives bi-directional feed which is ideal if doing rounds or feeding beets.
ELEVATOR CONTROL

Hydraulic variable angle to 60° degrees.
CAPACITIES
4′ ROUND BALES

2 up to 6’ diameter.
4′ x 3′ SQUARE BALES

2 at 7’ long (as a single layer).
CAPACITY

3,000kgs.
BODY LENGTH

3,600mm + 1.4m chamber.
OVERALL WIDTH

2,340mm at widest point with shredder.
SIDE DEPTH

800mm.
TANDEM AXLE

70mm / 6 stud brakeless.
WHEELS TANDEM

11.5 / 80 x 15.3 wheels (see options)
LOADING HEIGHT

980mm approx + 600mm side height.
CHASSIS

152 x 76 x 6mm fully welded chassis.
HEADBOARD

Fixed headboard with 3mm agrimesh.
BODY

Sheet steel 2mm floor and sides.
DRAW BAR

Rigid drawbar A frame 1,450mm.
SUPPORT JACK Fitted with 70mm jack support.
TOWING EYE

Fixed eye as standard or optional swivel eye $250.
LOADING FOOT

This optional drop-down foot is ideal to rest the unit on when loading, it digs into the ground assisting when rear loading, used in conjunction with a quick hitch.
FINISH

 Blasted, etch base zinc high build primer then dried. Followed by 2 x gloss coats of gloss paint.
COLOUR

CAT yellow and charcoal.

Extras

ROUND BALE SHREDDER $1,290 in lieu of beet door
400/60 TRACTION FLOTATION WHEELS $620 for the pair
LOADING LEG FOR QUICK HITCH USE $560
HYDRAULIC TILTING ELEVATOR $1,250
TWINE BOX $540
