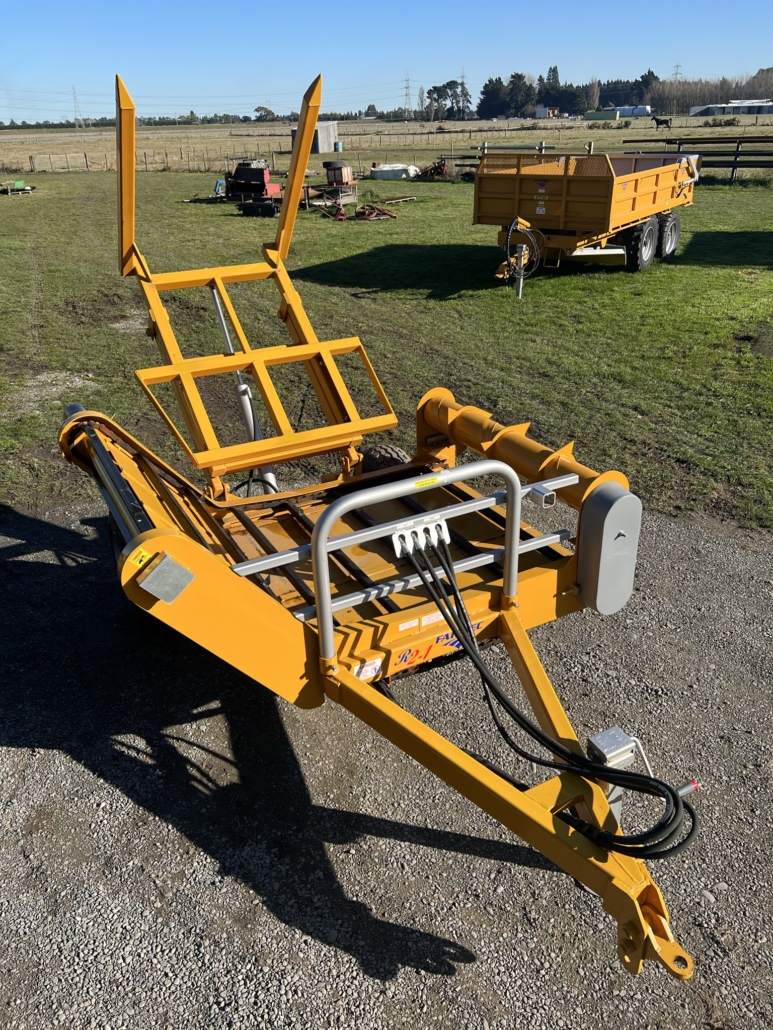

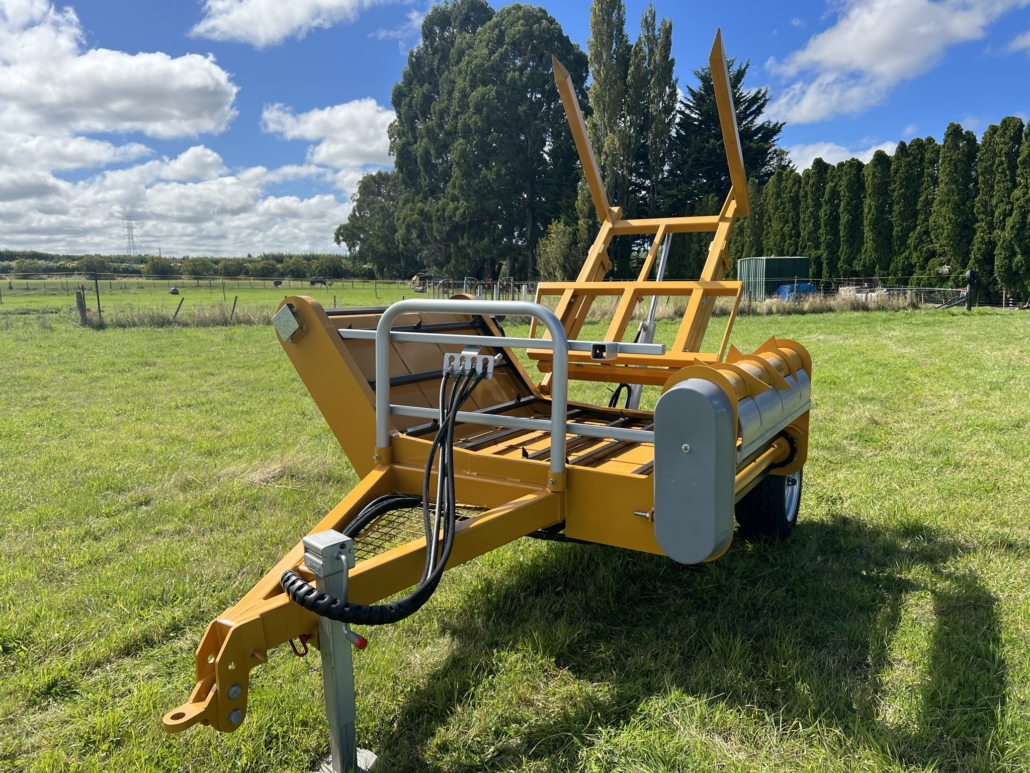

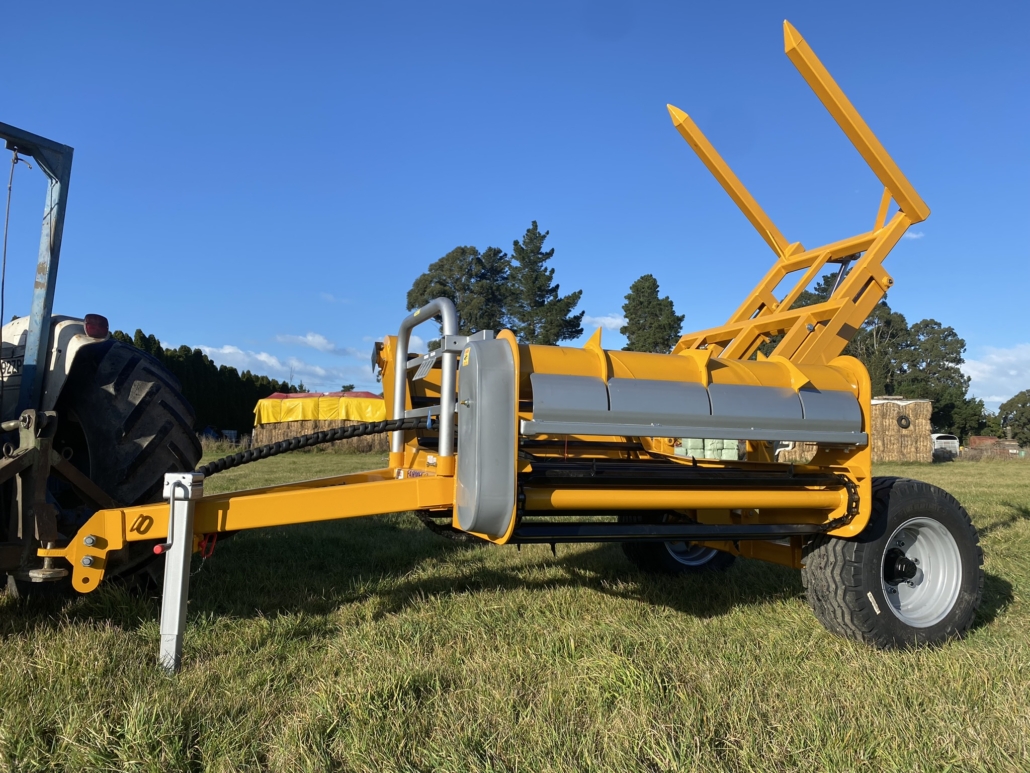

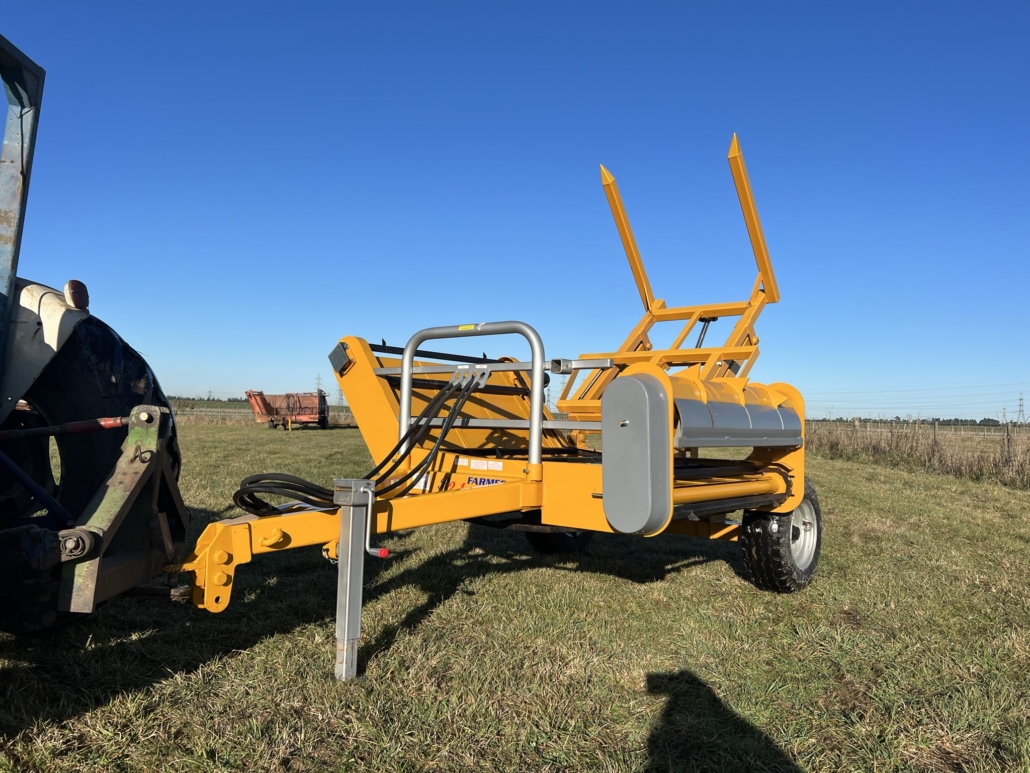

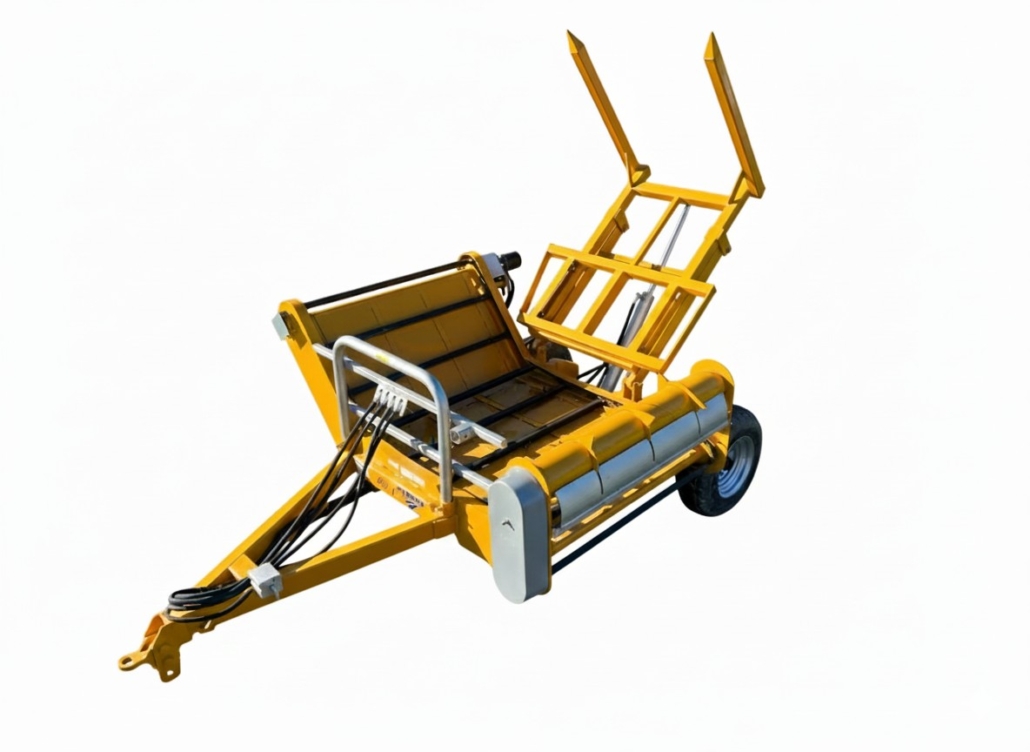

The model shown has the rota shredder fitted to one side which is ideal for any odd shaped round bale or bales that have a tight crust – with the deep cradle holding the bale tight and rota shedder combination this is by far our most popular model. The rota shredder runs at 25% faster than the floor chain which tares the bale to make a uniform row via the bi-directional feed-out…
Thank you for considering this Farmec feeder for your feed-out requirements, this is one of an extensive range of tried and tested machines sold throughout New Zealand. These feeders have developed out of 40 years of working with both farmers and engineers, so you can rest assured knowing you have invested in the best there is to offer. What we have aimed to achieve is:-
a functional machine that exceeds your expectation in the field.
that the engineering, design and ascetics prove to give you maximum longevity
That the machine is simple to operate but totally functional in operation
that the price ensures that the unit is competitive whilst considering spec for spec
that the optional equipment ensures all customers’ requirements are covered.
Features

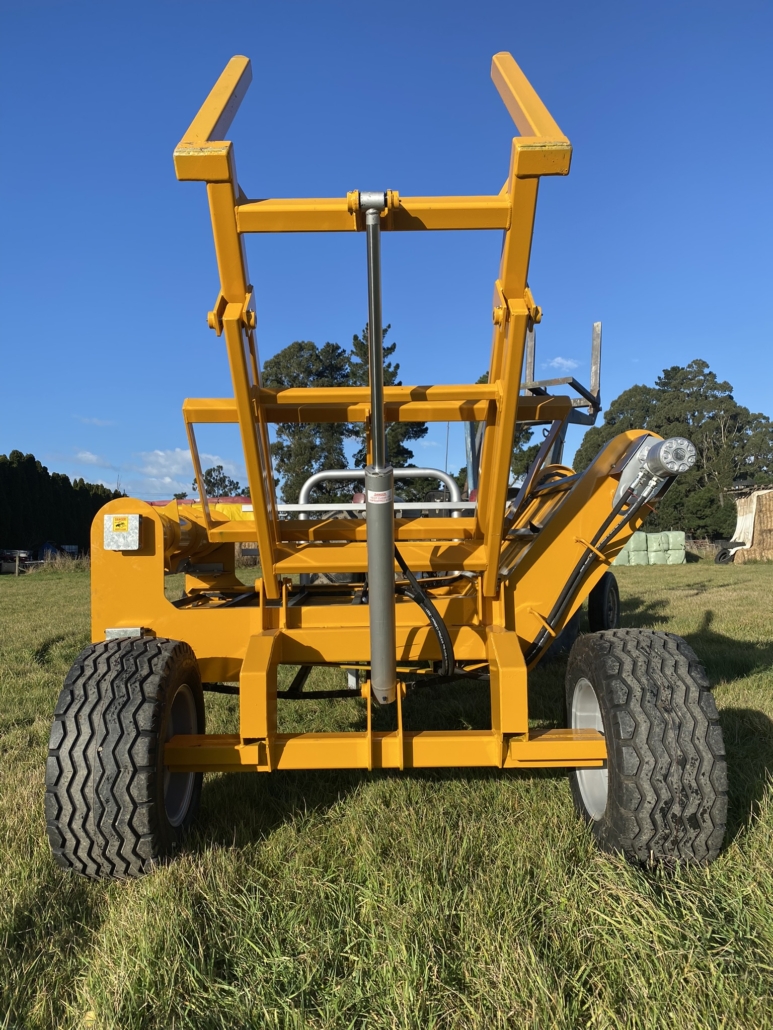

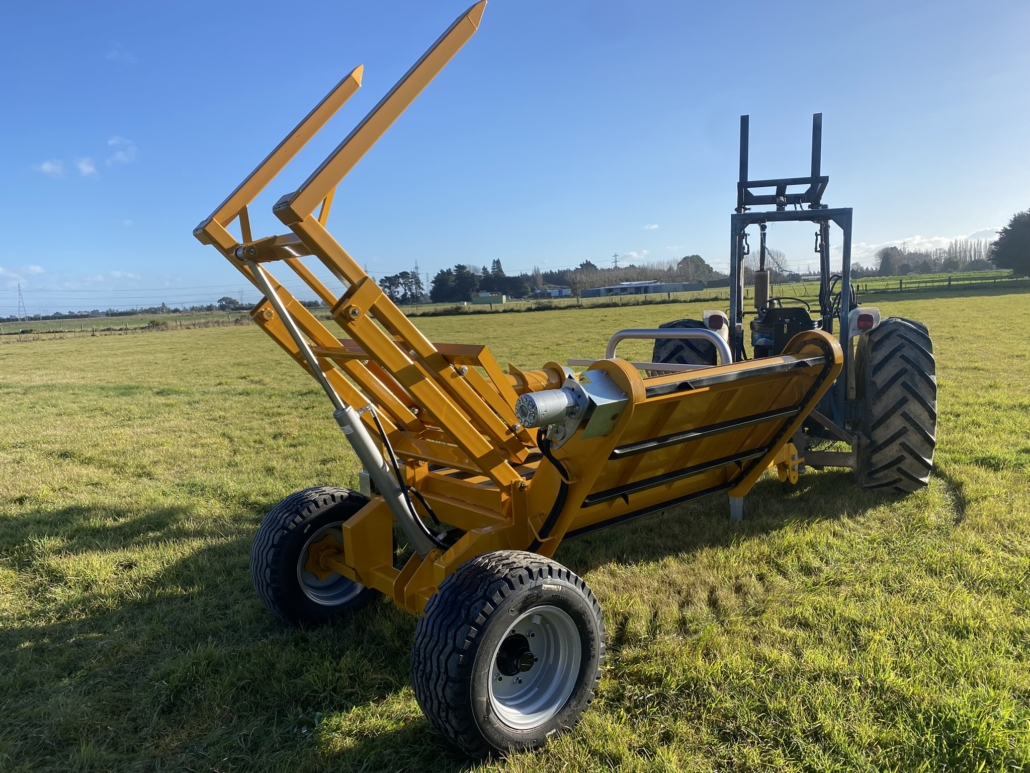

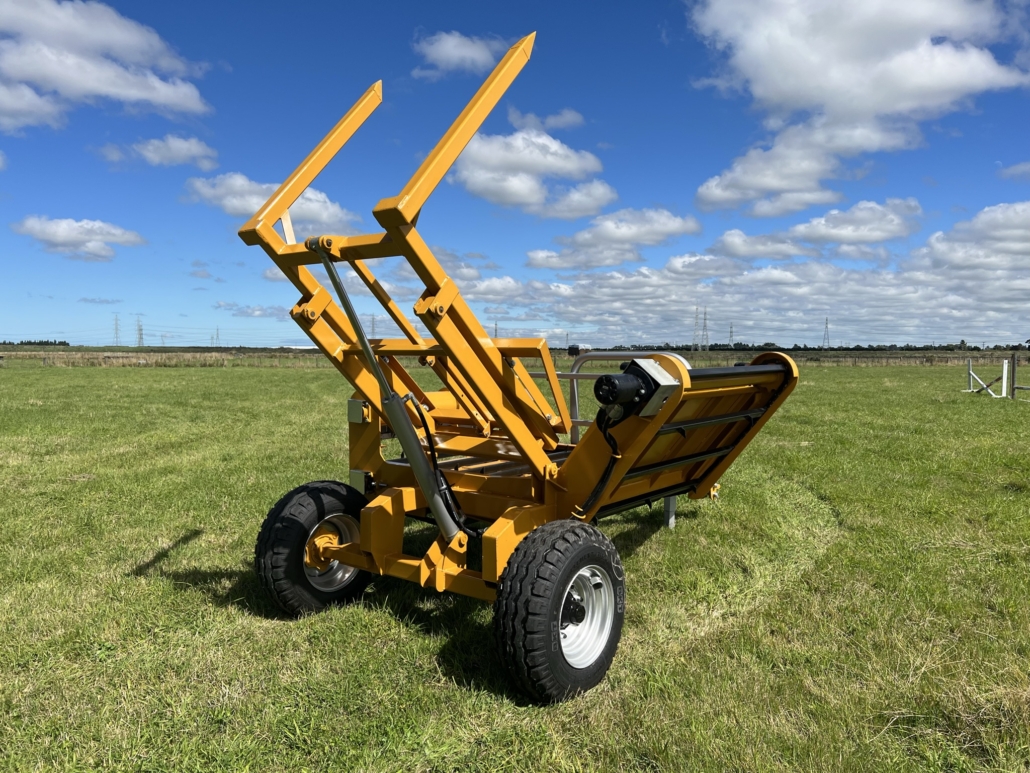

All of the 2 bale trailing models are uniquely self-loading. The forks have been designed to ‘cradle’ the bale with the tines sliding under allowing for easy removal of the wrap. The loading tine is mounted to a high load 3” bore loading ram which allows for all tractors to load heavy bales. The self-loading forks allow for a 2nd bale to be transported to the waiting stock.
► We have now added a variable height tow-eye which ensures that the loading tines get the optimum angle under the bale so the tractor drawbar height won’t matter.
► The 2” pitch chain with welded RHS floor bar not only facilitates bi-directional feed, but it also allows for smooth running and a low torque requirement to drive and allows for feeding off either side which is ideal on hilly country or for rota cut bales that fall to pieces. With 6,800lbs of break strength this chain has certainly proven its worth.

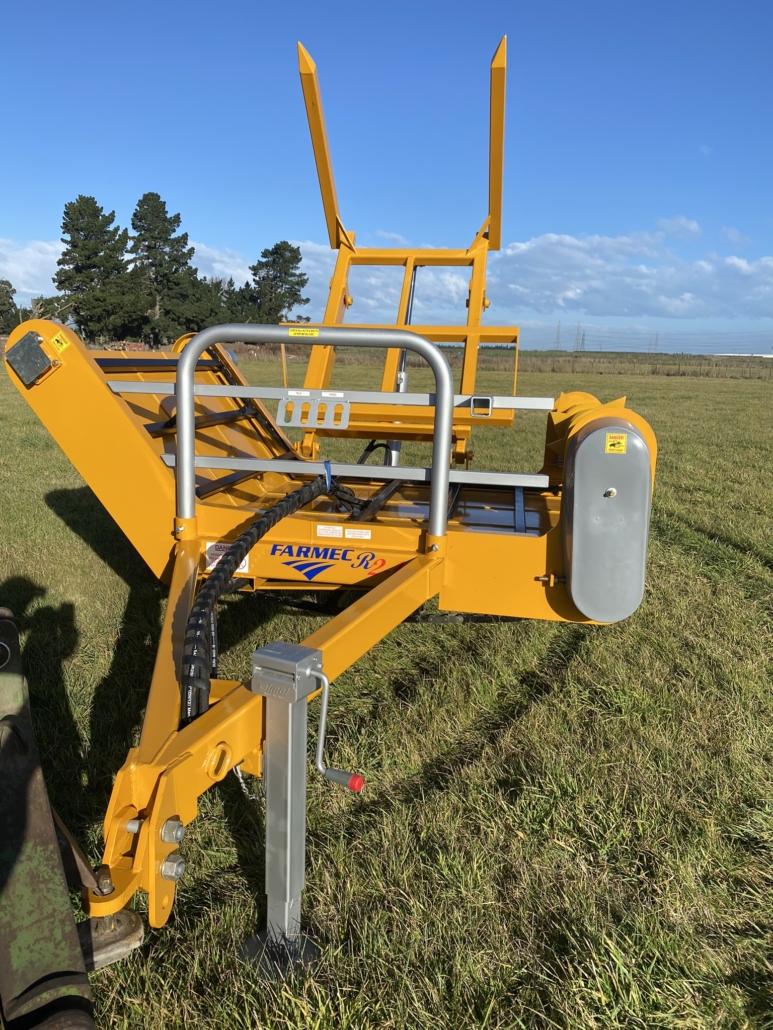

► All drives consist of 40mm bearings and full length shafts, whilst the fully welded chassis 125 x 75 x 5mm section RHS chassis is the basis of the heavy-duty construction. The ‘A’ frame drawbar gives massive strength and ensures no cracking even after thousands of bales. A 70mm jack is also fitted for the operator to attach with.
► All Farmec feeders are bi-directional feed, so unlike other brands you are able to feed on either side on the machine, with the fast tease un-rolling with the swath, or slower teasing against the roll. The shredder ensures that if you get even the tightest of crusty bales this spiked drum will tear through the material. Fitted with a none blocking self-sweeping comb.

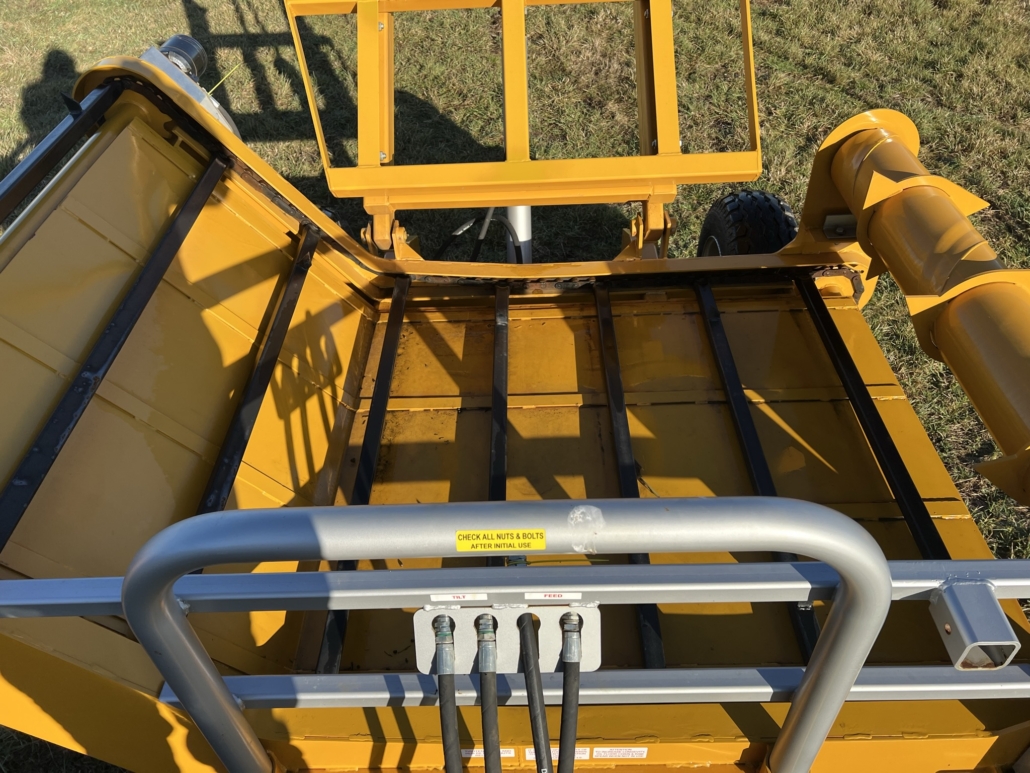

► Non rust 1.6mm Corten 350G steel floor with 4 x rub bars complements the design as do features such as – 2 wire hoses – high torque American Parker hydraulic motor – large axle and floatation wheels.
Specifications
CAPACITIES : 2 bales
CHAMBER TYPE : High curve and rota shredder ideal for all round bales
