Description
Thank you for considering Farmec for your feeder requirements, we are very pleased to be able to offer you our extensive range of feeders. These feeders are capable of many years of relentless operation. We are pleased that our customers appreciate the features that we added following 20+ years of development work with our customers.
What we have aimed to achieve is:
- a functional feeder that exceeds your expectation in the field.
- that the engineering, design and aesthetics of the machine prove to give you maximum longevity.
Features
These feeders are very simple feeders to operate, with only 2 sets of remotes required one to load and one to feed out. Specifically designed for large herd farmers or customers feeding over 5 bales a day, these feeders are state-of-the-art, designed hand in hand with farmers requirements, with over 20 years of field experience.

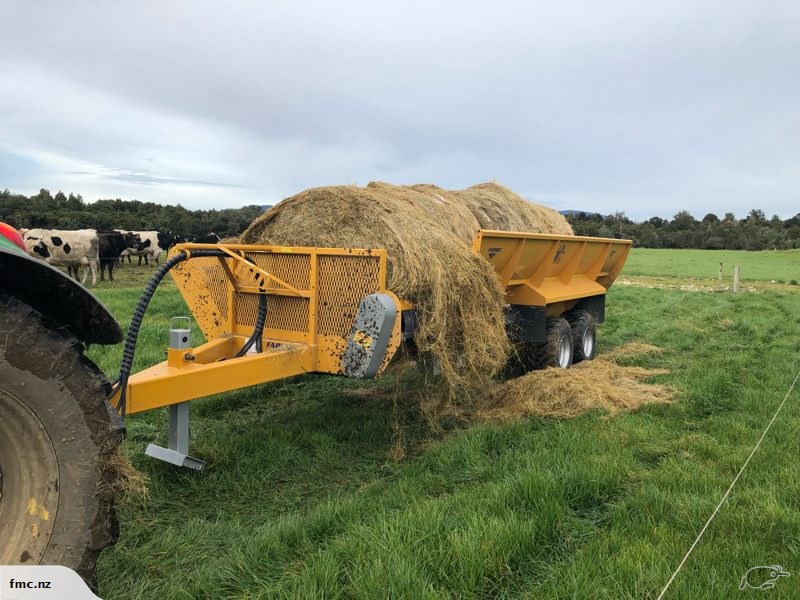

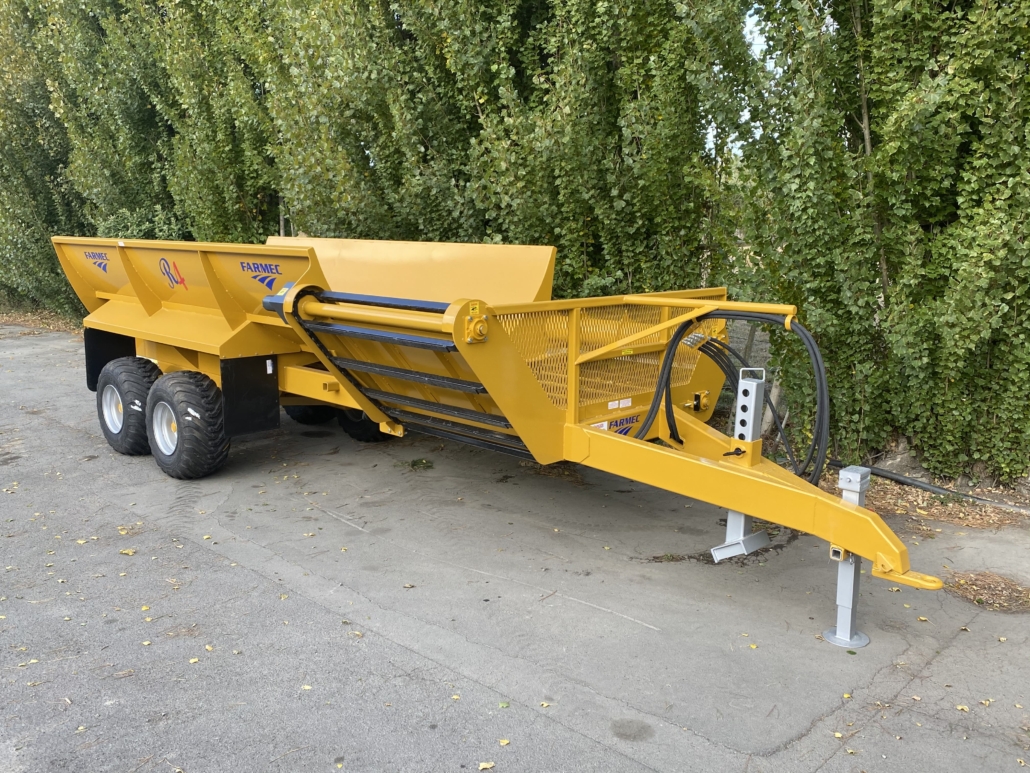

The R4 feeder is designed to handle all types of material and presents the crop to the animals in a condition that you the farmer will be satisfied with. With bi-directional feed from the endless chain, allowing the operator to maximise the volume of feed delivered over a certain distance. Whether you want to feed it out as fast as possible or just supplement feed with a fine row, the R4 feeder will be able to provide this day-in, day-out with just about any skill level operating the tractor.
Unique features:
- Tub body design for chopped bales
- Low centre of gravity
- Optimum ground clearance
- 3” pitch floor chain with RHS bars
- Fully welded 200 x 100 section RHS chassis
- A frame heavy duty drawbar with fixed tow eye
- 40mm bearings and shafts 50mm on shuttle drive
- Full steel floor welded to RHS frame
- 2 wire hose on all hydraulics
- Large 70mm axles and floatation wheels
- High torque American hydraulic motor
- Self-adjusting drive chain tensioners with ware blocks
(i) All Farmec feeders are bi-directional feed, so unlike other brands you are able to feed on either side of the machine, this is extremely useful for controlling feed out volume.
(ii) All floor chains are 3” pitch as standard, this has reduced motor torque requirements as well as increased strength. The hollow pin has allowed for on the spot repairs to be made if required and is sourced at a very competitive replacement cost.
(iii) 530cc shuttle gearbox drive motor transfers torque via a 4:1 ratio, this ensures even the heaviest of bales will transfer to the feed out chamber. The floor chamber is a 530cc motor direct drive.
Hydraulic requirements for standard feeders:-
Chamber chain = 1 x double remote
Shuttle pusher = 1 x double remote
Please find the following information pertaining to this specific machine Jumbo Tub R4 Feeder :-
