Farmec is NZ’s premium manufacturer of tip trailer for use with an agricultural tractor. What we offer is a new breed of trailer with many features specifically designed for the construction industry. We are very pleased to be able to offer you our extensive range of ‘Contractor’ tip trailers. These trailers are capable of many years of relentless operation. Our customers appreciate the features that we have added following 20 years of development work.
What we have aimed to achieve is:-
a very robust trailer capable of handling all operations whilst maintaining the ability to be as diverse as possible
a functional trailer that exceeds your expectations in the field.
that the engineering, design and aesthetics of the machine prove to give you maximum longevity
the price ensures that the unit is competitive whilst considering ‘like for like’
that the optional equipment ensures all customer requirements are catered for
Features

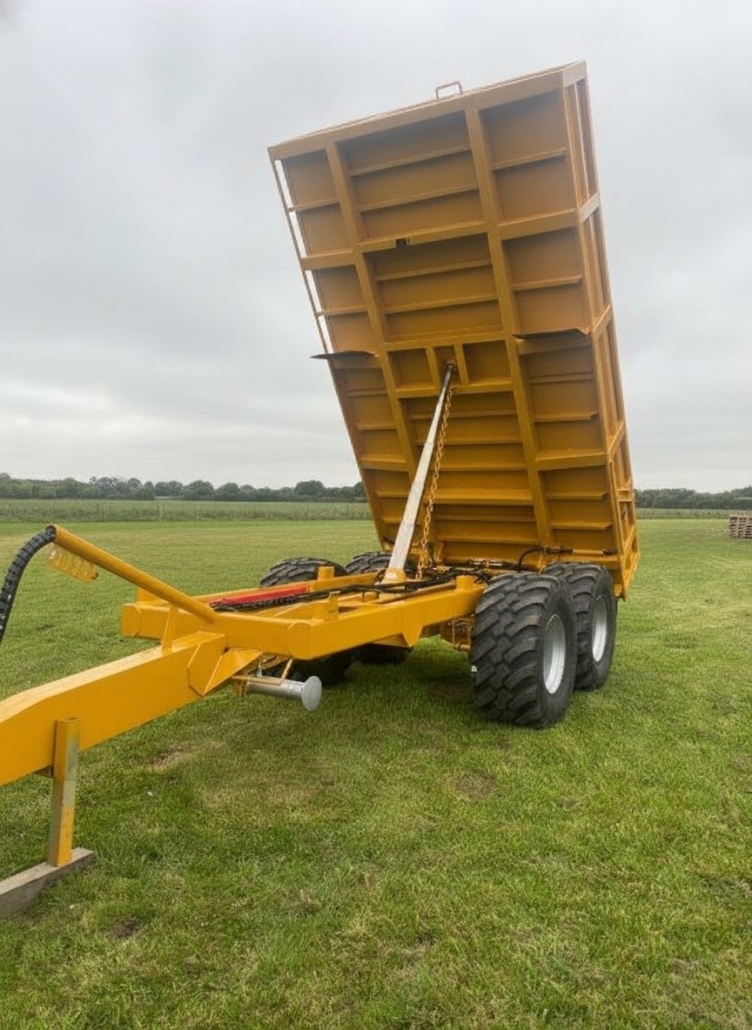

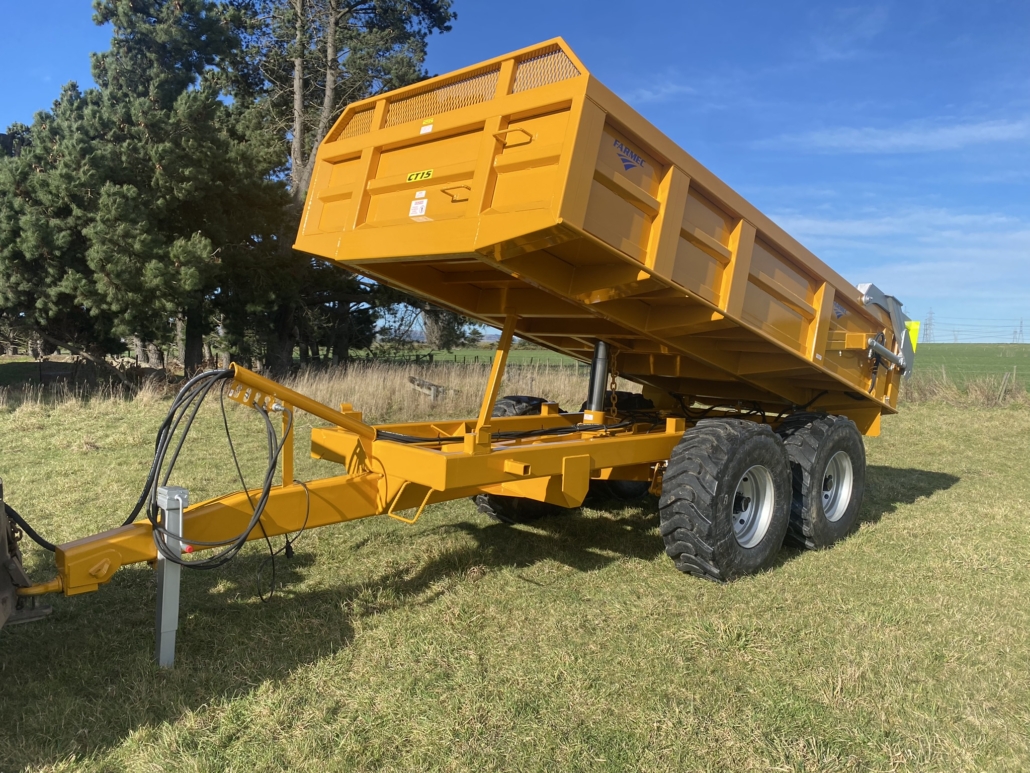

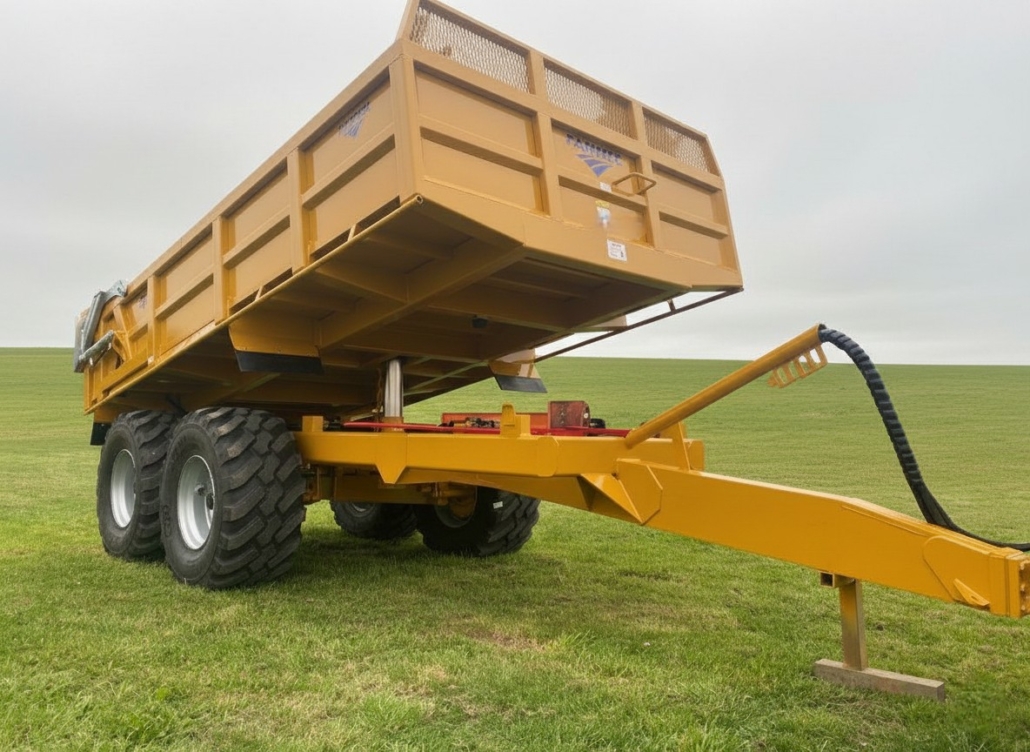

The ‘Contractor’ range of trailers is designed ‘super’ heavy duty (based on what some manufactures call heavy duty). These trailers are designed to shift 16 tonnes of material every 15 minutes 12 hours a day 7 days a week. The CT range all have fast tipping bodies, via the multi staged rams that give 60 degrees of tip with minimum oil usage.
The full RHS chassis with single beam drawbar member gives high strength and maximum turning circle. All of these trailers are sold with heavy duty walking beam tandem axle, oscillating on a continuous 75mm high tensile pin with 11 easy grease-able bushes centrally lubricated as standard. The pin is positioned 50mm off centre to reduce speed wabble with high-speed tractor.

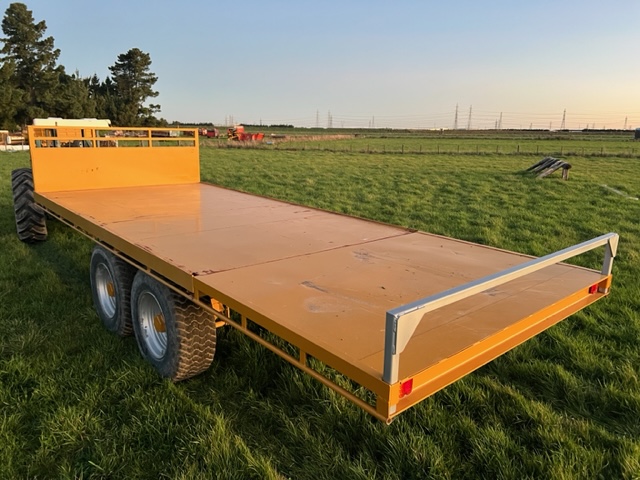

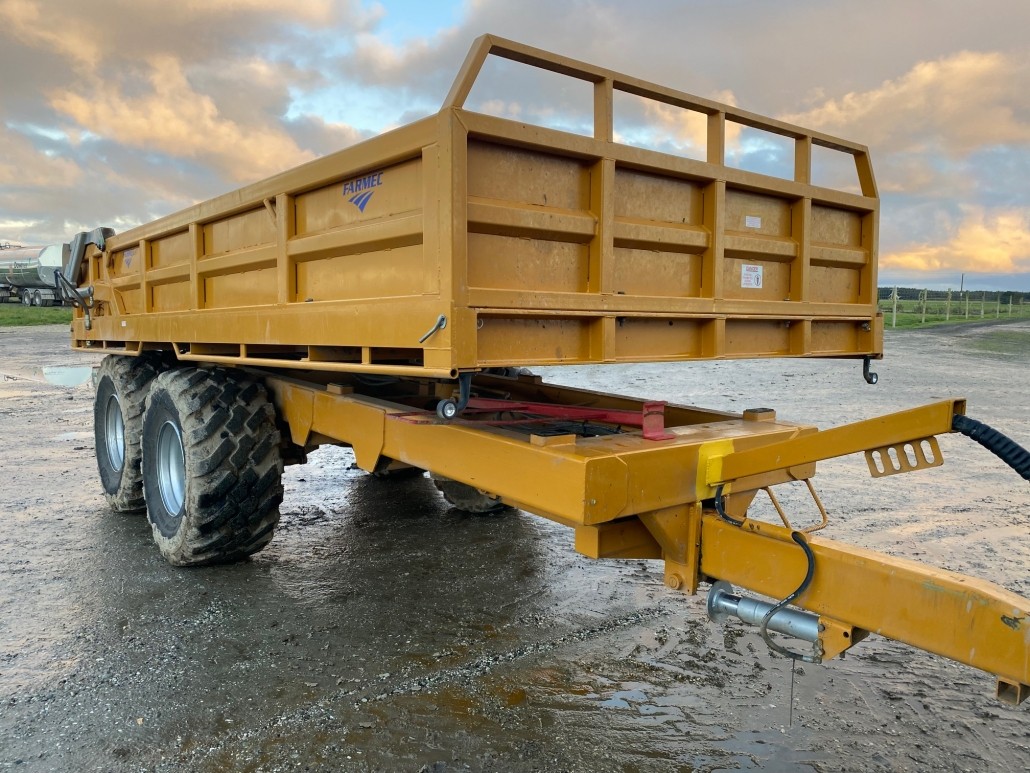

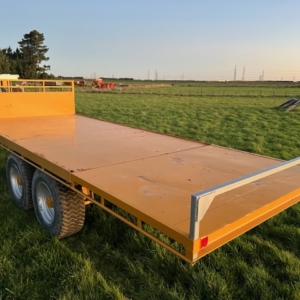

With 2 choices of body 1) mono lift-off one-piece sides are for customers that require the flexibility of being able to reduce the trailer to a flatbed for those ‘other’ jobs 2) fully welded monocoque (bathtub) for continuous bulk haulage work. Fixed headboards with extension rails are standard on both bodies…

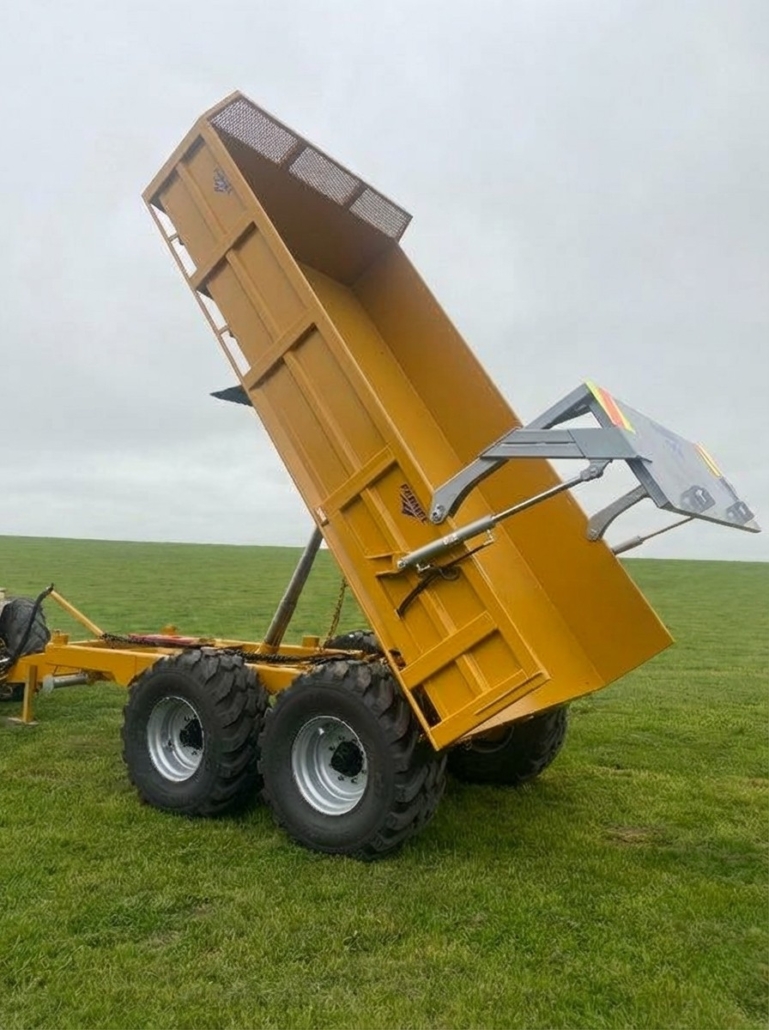

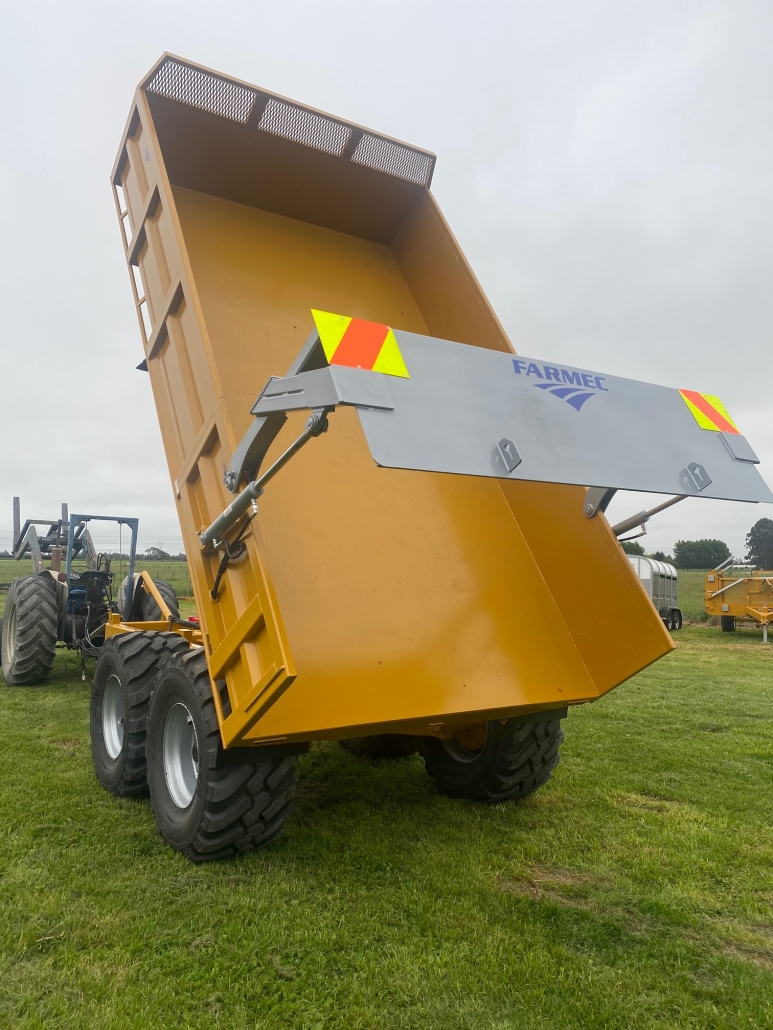

Tailgates are remove-able on both body types and whether a full hydraulic up and over door is fitted or just a standard top hinged door or the double swing type door.

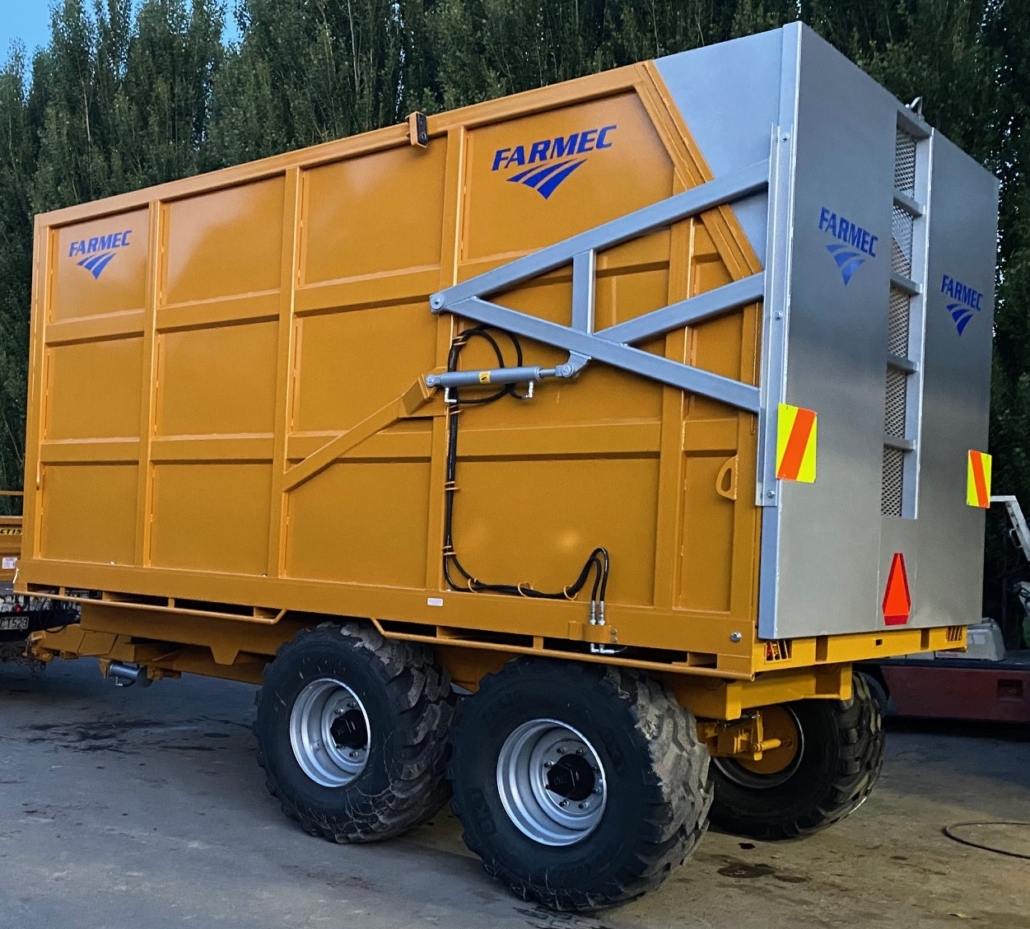

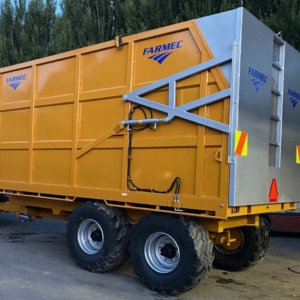

The silage kit option is available for customers wishing to use the trailer for the harvest periods, hauling chopped silage from the paddock to the clamp. Available as a one piece lift off kit or individual bolt together panels. It is fitted with a mesh window at the front that folds (optionally) down, and full rear doors with one third mesh centrally positioned for ease of reversing empty.
Wheel options are as standard 500/60r x 22.5 for floatation or the 445/65r x 22.5 for highspeed quarry work. However, we also offer for a big footprint the 560/45R x 22.5 and the bigger 560/60r x 22.6 for real soft application…
Specifications
BODY TYPE : Flat floor removable liftoff sides or tub body
CAPACITY : 16 tonnes payload
TARE WEIGHT : 4,840 kgs as standard
CAPACITIES : 7.8m³ level loaded @ 2,000 kgs/m³
BODY LENGTH : 4,800mm
BODY EXTERNAL : 2,530mm on the lift offside
: 2,640mm on the Monocoque tub body
SIDE DEPTH : 650mm (25”)
LOADING HEIGHT : 1,350mm depends on wheel equipment
TIPPING : Via 20 tonne hydraulic Multi-stage cylinder requiring 25 litres of oil to lift to 60° and terminating at ¾” QRC – #4051F
BRAKES : fitted with 4 x actuators to tractor brake pedal as std
DRAWBAR : 250 x 100 x 9mm single beam drawbar fabricated
CHASSIS : 250 x 100 x 6mm fully welded
TOP CHASSIS : 200 x 100 x 9 RHS
HEADBOARD : Fixed with RHS top shock rail and extension rail
SIDES : Fully welded bathtub with flat floor and 90° corner reinforced with 75 x 75 x 10mm angle – 4mm non rust corten 350 grade panels – with up right bracing extrusions at 1050mm ¢ and centre horizontal folded stiffener – top rails are heavy 125 x 75 x 6mm RHS to prevent damage. Or lift off side as standard.
TAILGATE : Tailgate top hinge bottom locking see options
TAILGATE LOCKING : Hydraulic opening & locking controlled from tractor
ROPE RAILS : Fitted with heavy wall pipe bar attached nominally
