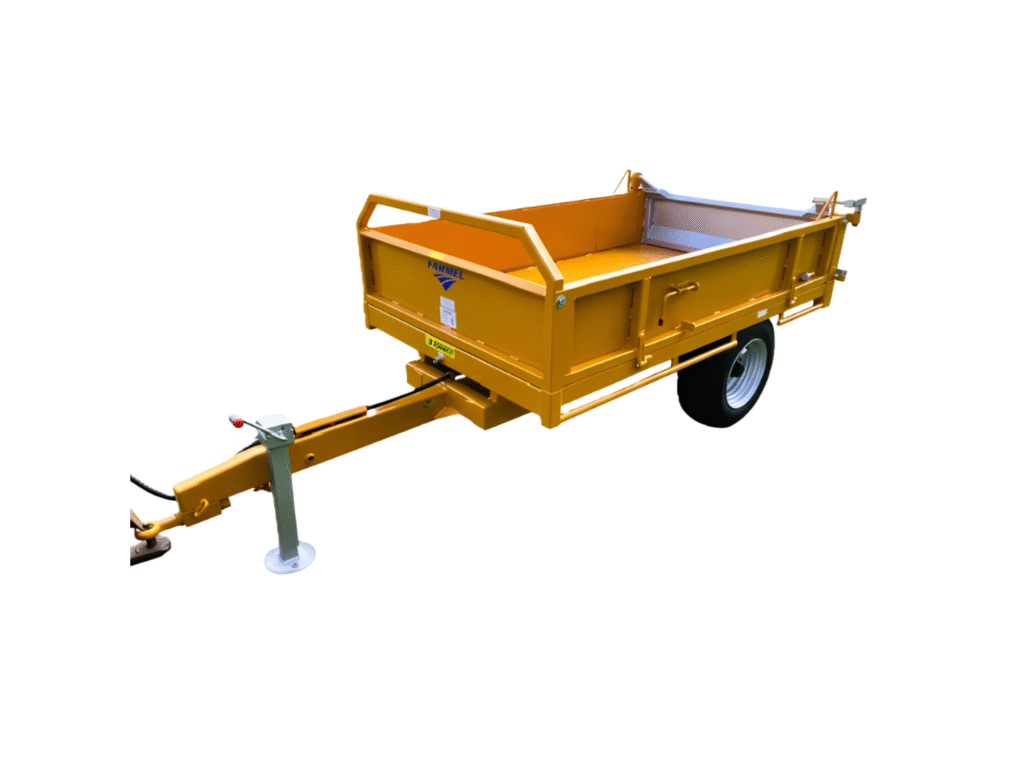

Farmec Compact Trailer 'TC03' - Product Image

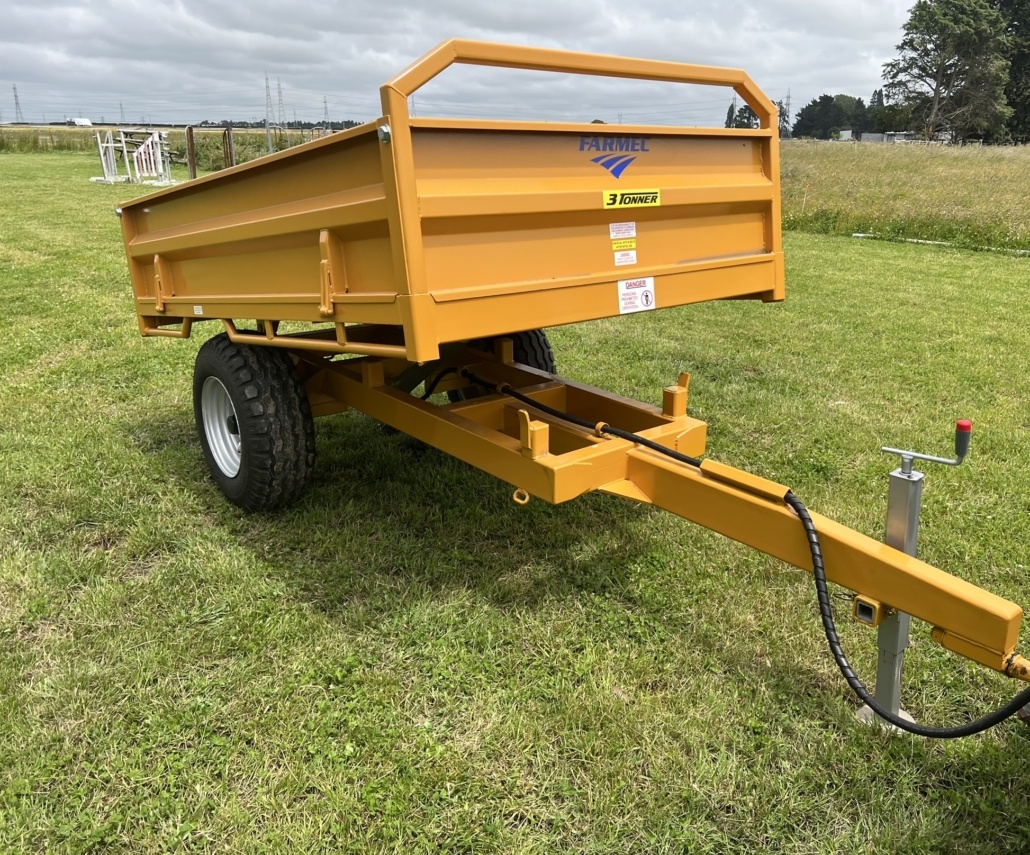

3 Tonne Tipping Trailer ‘TC03’

$13,646

These trailers are aimed at the small farmer or narrow horticulture and viticulture rows ideal for orchardist and larger avid life styler. Fitted with many features these trailers are multi-tasking and with a list of options that will ensure their usability around the property.

Categories: ,

Description

Thank you for considering Farmec TC03 for your compact trailer requirement. Please find our very nice smaller farm trailer that we manufacture to a very strong robust heavy-duty design but is still appealing to the compact tractor market. With around 750 kg tare weight often used with bigger hp tractors on viticulture but can still handled with ease with 35-45hp compact tractors, safely and easily with many of the simple tasks where additional hauling capacity is a great benefit.

What we have aimed to achieve is:

  • a robust trailer capable of handling all required operations whilst maintaining the ability to be as functional possible
  • a user-friendly product that exceeds your expectation in its field
  • that the engineering, design and ascetics of the machine prove to give you maximum longevity.
  • a price that ensures the unit is competitive whilst considering ‘like for like’
  • that the optional equipment ensures all customer’s requirements are catered for

This video shows one of our TC03 Trailers:



Features

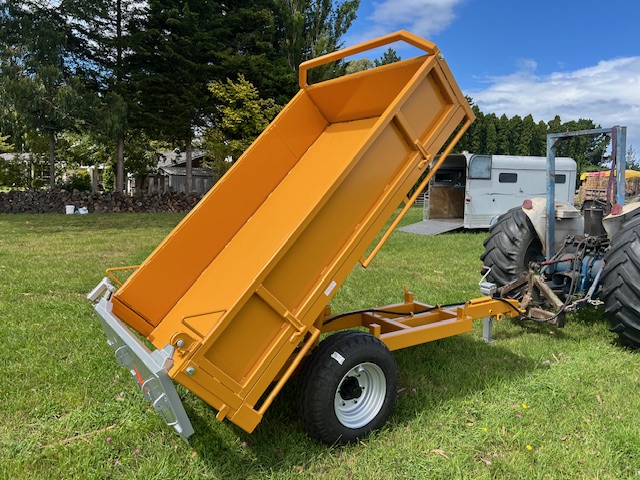

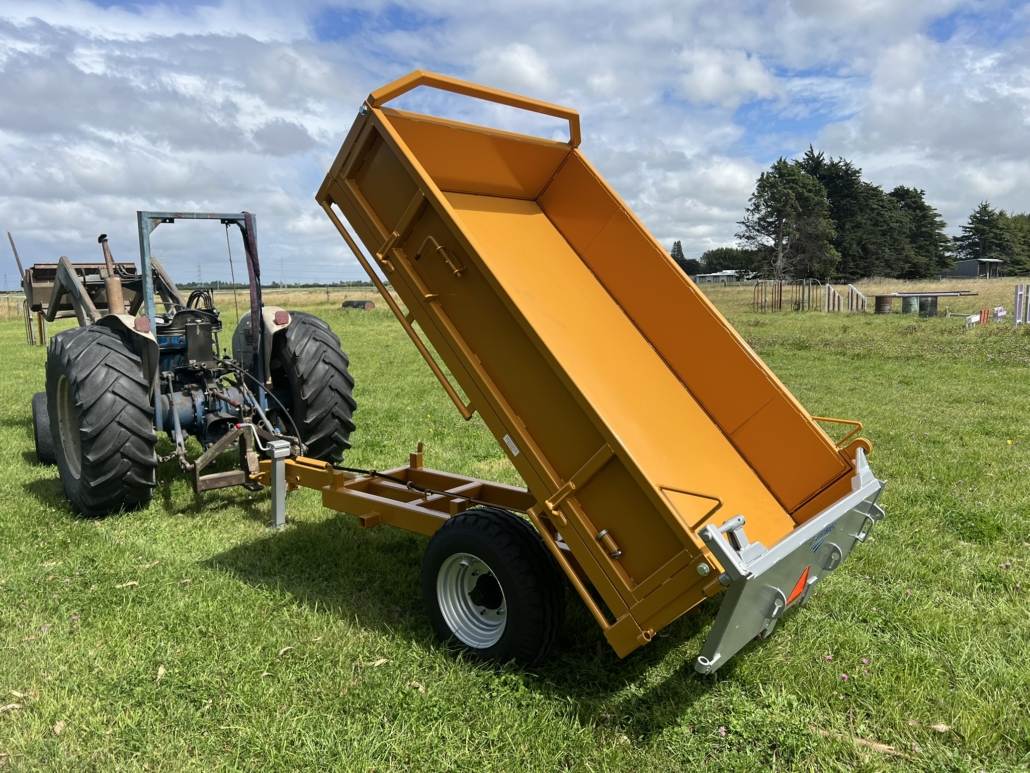

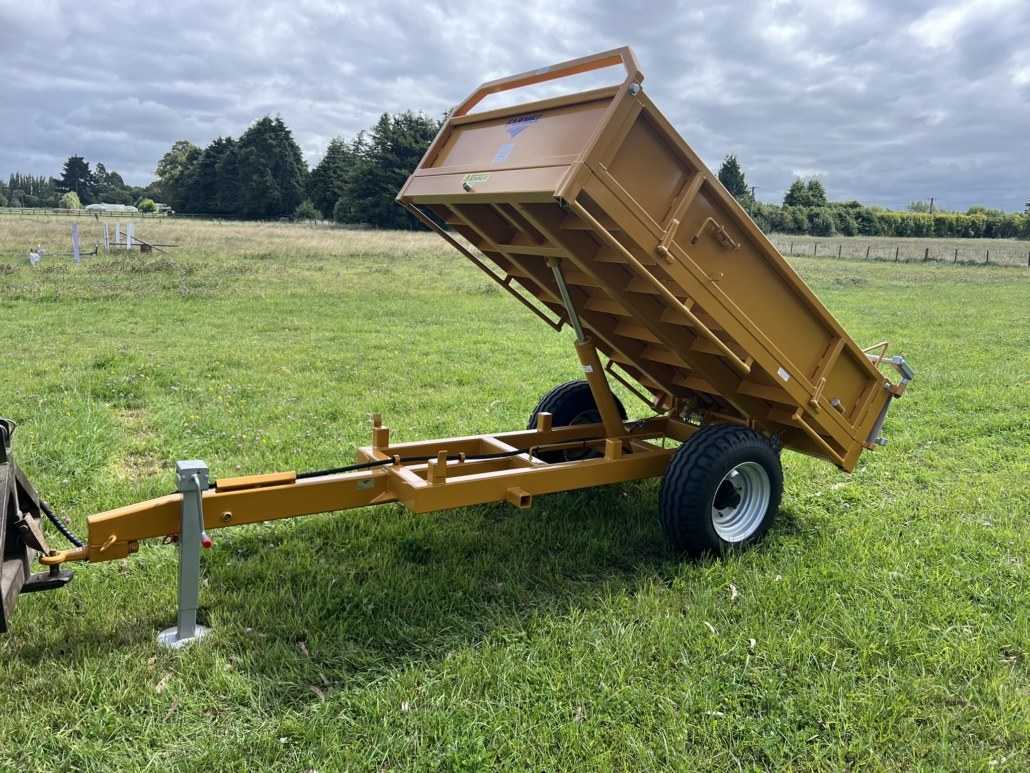

  • The Compact range of trailers are designed for everyday general use, with a fast-tipping body that goes to 55° which will ensure even sticky loads will tip.
  • Full RHS chassis with single drawbar member gives high strength and maximum turning circle.

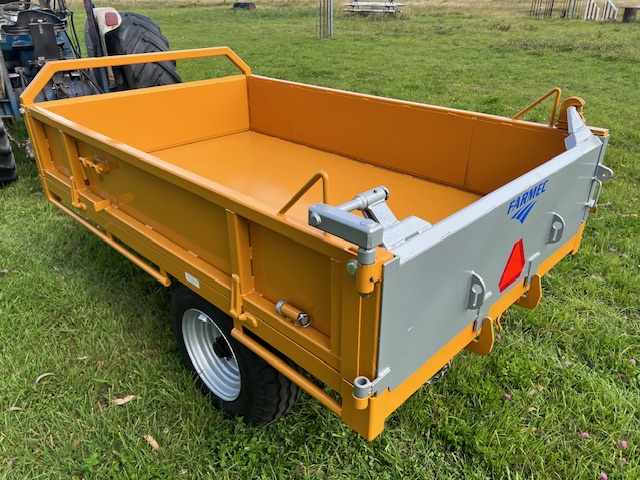

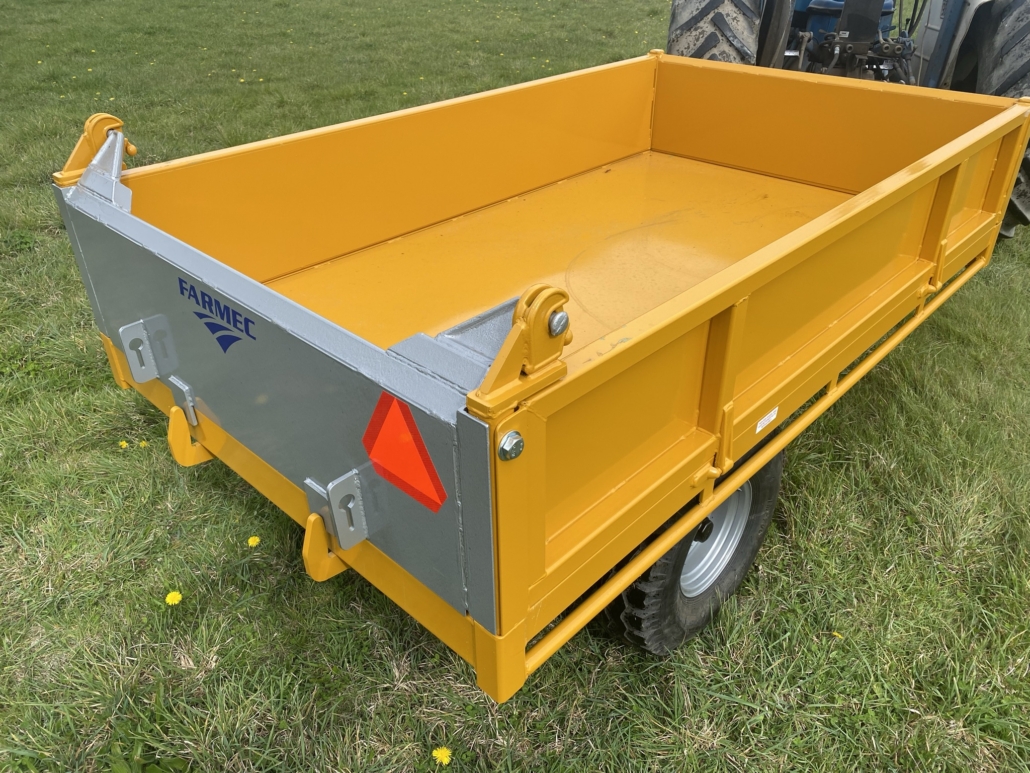

  • The sides are hinged (& removable) with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides. This makes it a very diverse trailer for any operation.
  • A particular feature is that the headboard can lift out of its location sockets. Bolsters can then be fitted to the 4 corner sockets making the flatbed ideal for pole transport.

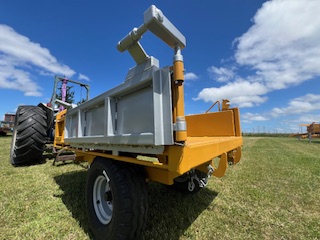

  • Please consider the list of options that add to the functionality and ease of use including the mechanical auto opening tailgate is extremely popular, this inexpensive but effective option allows the tailgate to open at about 15° and has the aperture fixed by spreading chains (as option) ensuring the right amount of material is spread.
  • Wheel options are 10.0 / 75 x 15.3 – 12ply 6H as standard wide, ideal for sporting courses at 250mm wide – trailer maximum speed is 40 km/h and not for road use.

Specifications

BODY TYPEFlat floor with hinged removable sides
CAPACITY (kg)3 tonne payload by design
CAPACITY (m³)1.5m³ level loaded at 2,000 kgs/m³ shingle
BODY LENGTH2,500mm
BODY WIDTH1,500mm
BODY DEPTH400mm
CHASSIS125 x 75 x 4mm RHS fully welded chassis
TOP CHASSIS125 x 75 x 4mm RHS top deck

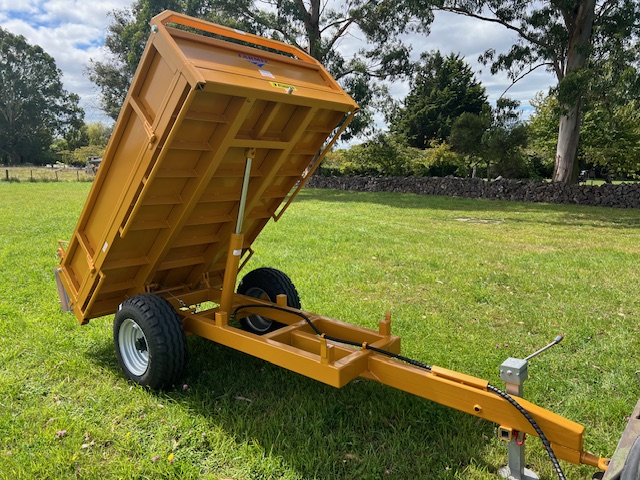

RAM TYPEVia under body single stage hydraulic cylinder requiring 7 litres of oil to lift and terminating at ½’’ QRC
SINGLE AXLE50mm / 6 stud brakeless (3,100kgs at 40km/hr)
WHEELS STD.10.0/75 x 15.3 – 12 ply (3,100kgs capacity)
LOADING HEIGHT825mm depending on wheel
TARE WEIGHT750kgs applying 15% to tractor  drawbar
DRAWBARRigid drawbar 125 x 75 x 5mm RHS
DB SUPPORTFitted with 60mm jack stand (see extras)
HEADBOARDDetachable with RHS top shock rail and extension rails with corner sockets in deck
SIDESDetachable hinging sides that bolt in rigid, allowing easy access to side loading, RHS top shock rail to prevent damage
TAILGATEDetachable tailgate with RHS top shock rail, includes independent corner posts to allow rear door to be removed yet sides remain fixed. Drop lock anti loose fastening locks fitted (see extras)
DOOR LOCKINGBottom Hinged, top locking via anti-loose latches as standard (see extras)
DECK THICKNESS3mm steel floor braced every 350mm
SIDE THICKNESS2mm steel with RHS up right bracing
FINISHBlasted, zinc base primer, 2 x gloss coats
COLOURStandard yellow with door / wheels silver

Extras

Auto-opening tailgate$655
Double swing back door$875
Spreading chains$165
Swivel tow eye$195
Rope rails$195
Jockey wheel in lieu of jack stand$454

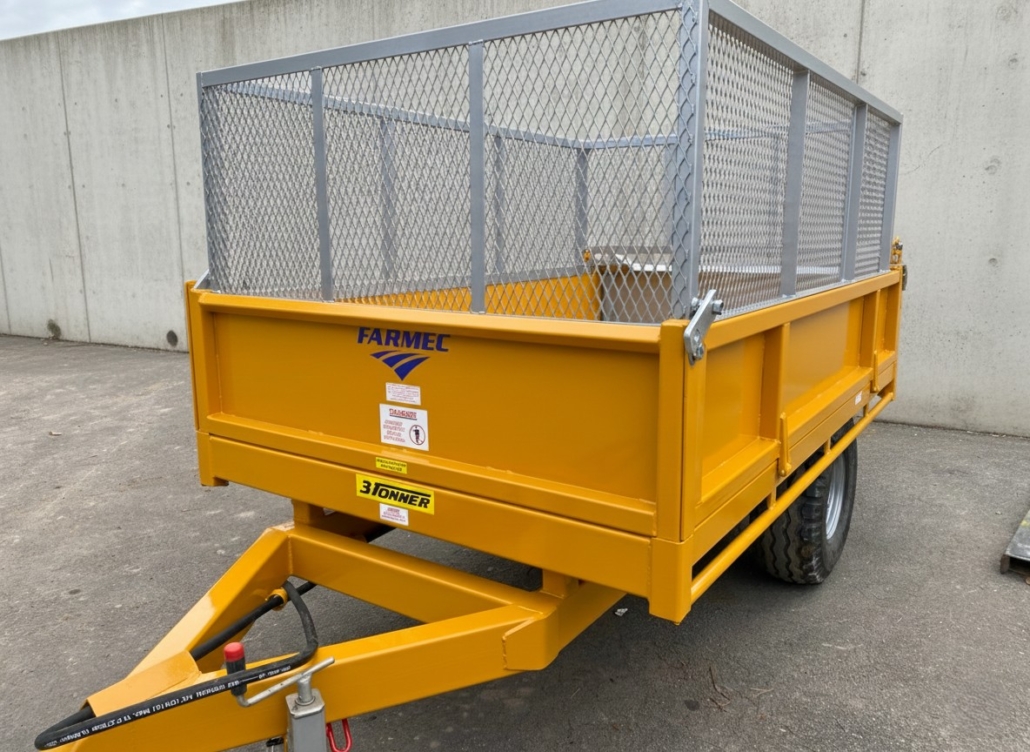

600mm Mesh cage with top or side door (includes mesh tailgate)$2350
2 Pac paint in lieu of enamel$750
