Features

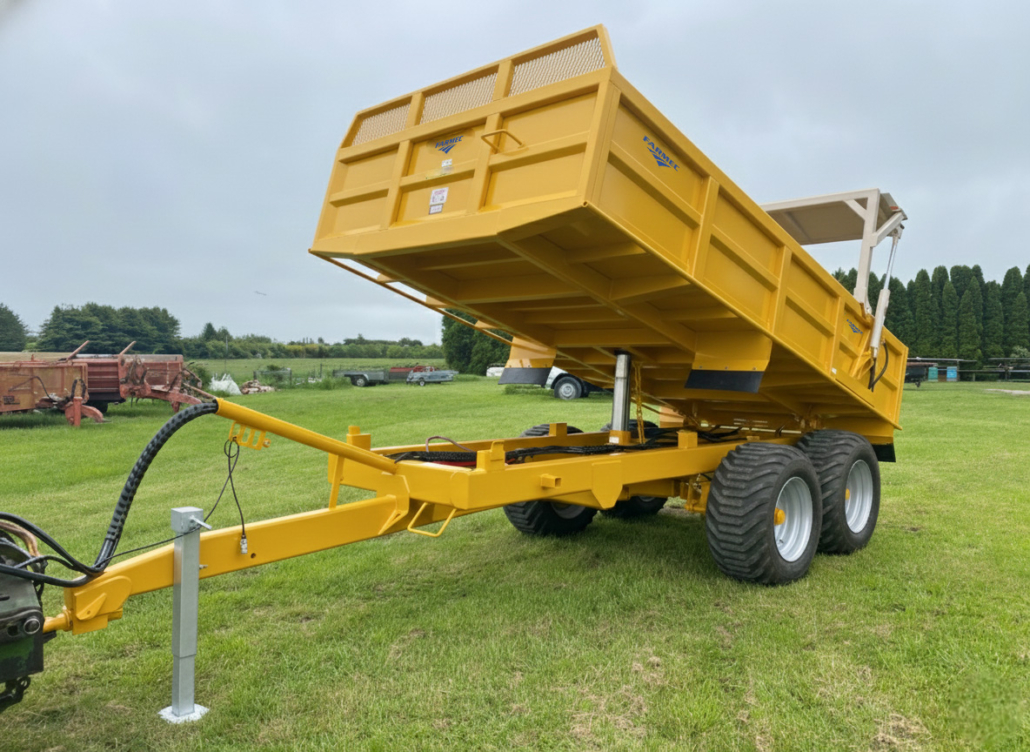

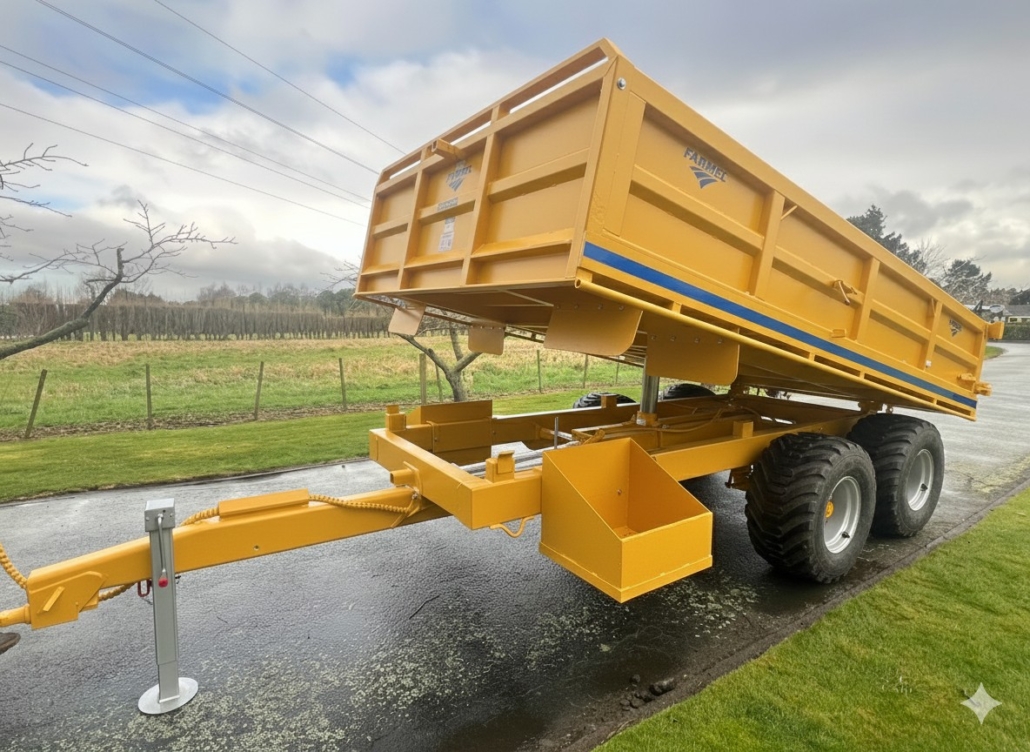

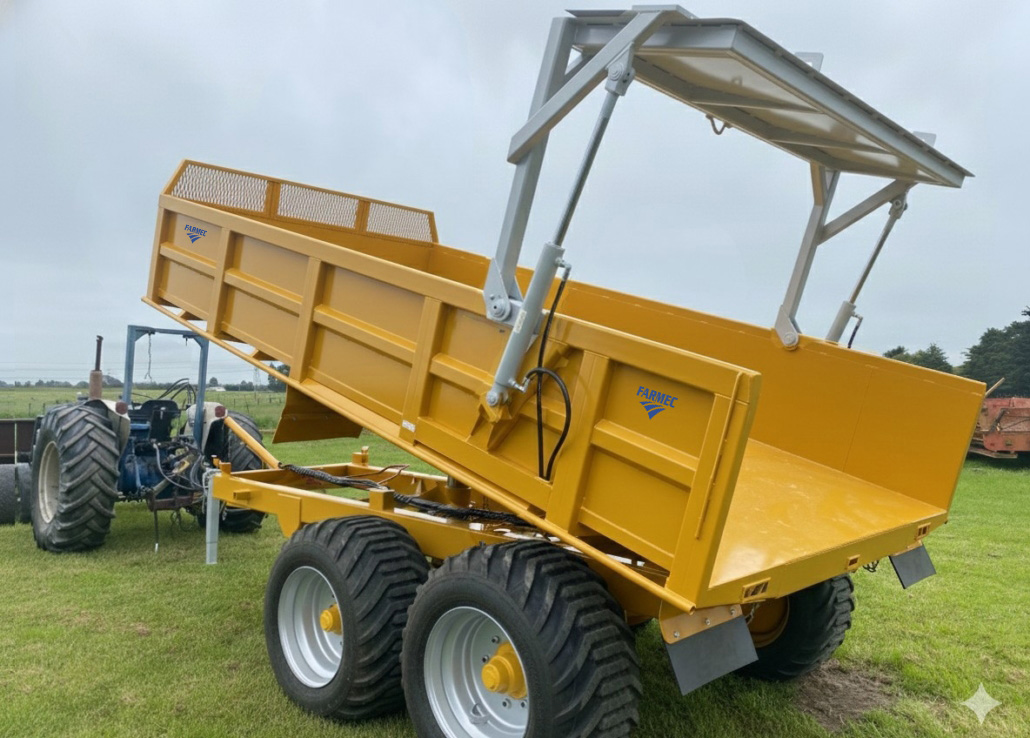

The ‘Contractor’ range of trailers is designed ‘super’ heavy duty (based on what some manufactures call heavy duty). These trailers are designed to shift 12 tonnes of material every 15 minutes 12 hours a day 7 days a week. The CT range all have fast tipping bodies, via the multi staged rams that give 60 degrees of tip with minimum oil usage.

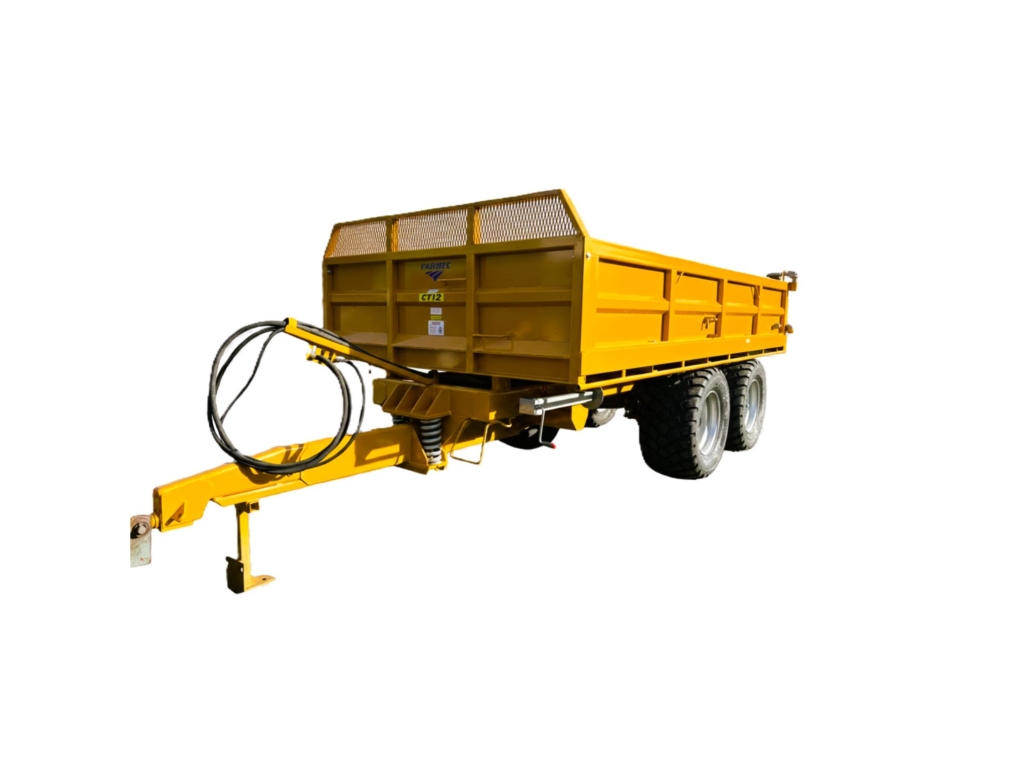

The full RHS chassis with single beam drawbar member gives high strength and maximum turning circle. All of these trailers are sold with heavy duty walking beam tandem axle, oscillating on a continuous 75mm high tensile pin with 6 easy grease-able bushes (11 bushes on bigger trailers) centrally lubricated as standard. The pin is positioned 50mm off centre to reduce speed wobble with high-speed tractor.

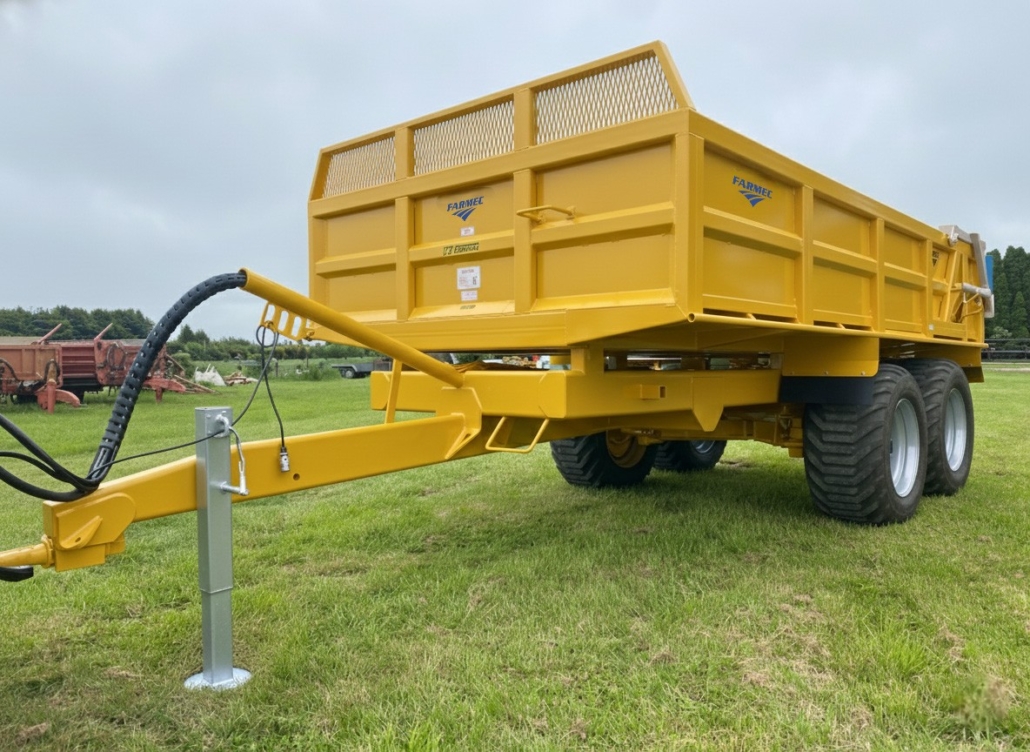

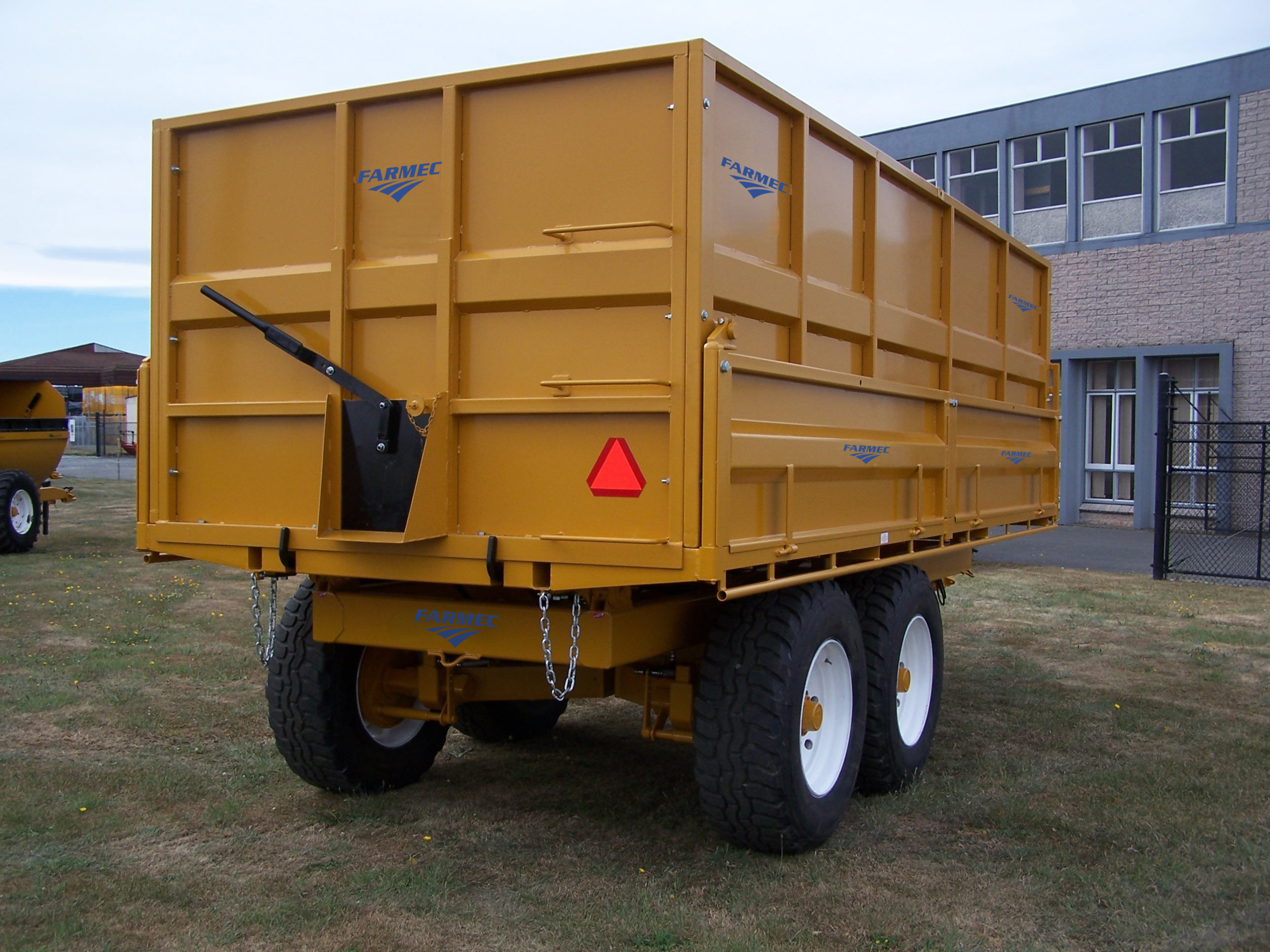

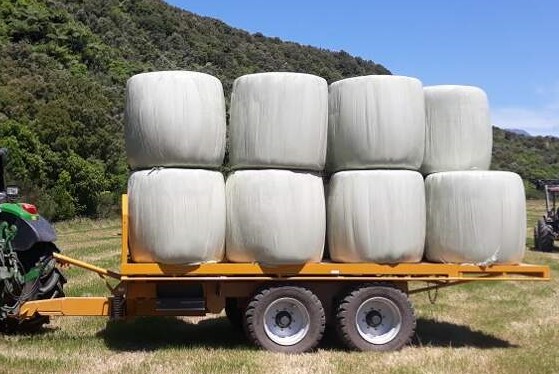

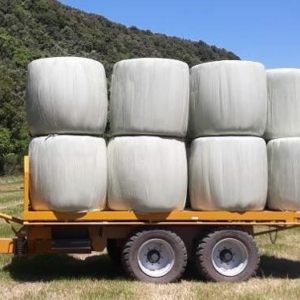

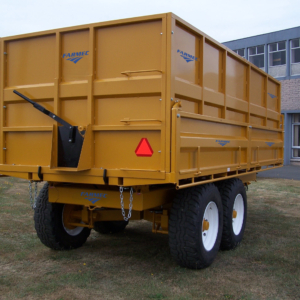

With 2 choices of body 1) The one-piece side are easily removed with the tractor front end loader and are for customers that require the flexibility of being able to reduce the trailer to a flatbed for those ‘other’ jobs 2) fully welded monocoque (bathtub) for continuous bulk haulage work. Fixed headboards with extension rails are standard on both bodies…
Tailgates are removeable on both body types and whether a full hydraulic up and over door is fitted or just a standard top hinged door or the double swing type door.

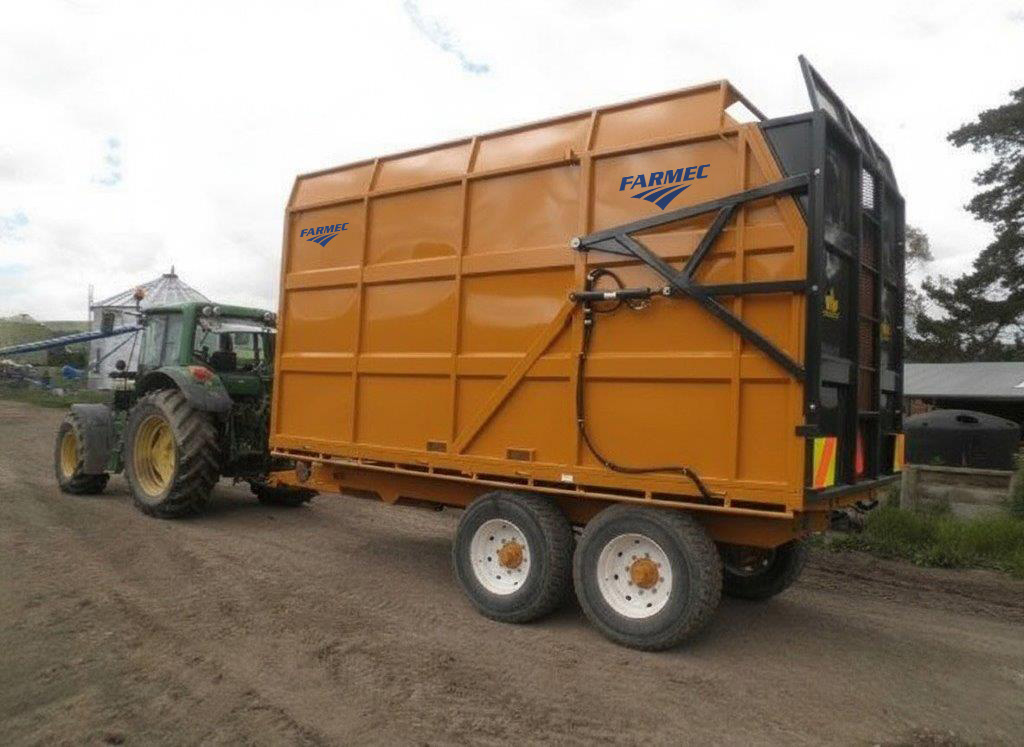

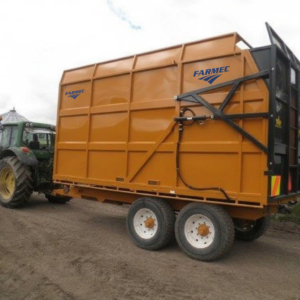

The silage kit option is available for customers wishing to use the trailer for the harvest periods, hauling chopped silage from the paddock to the clamp. Available as a one piece lift off kit or individual bolt together panels. It is fitted with a mesh window at the front that folds (optionally) down, and full rear doors with one third mesh centrally positioned for ease of reversing empty.

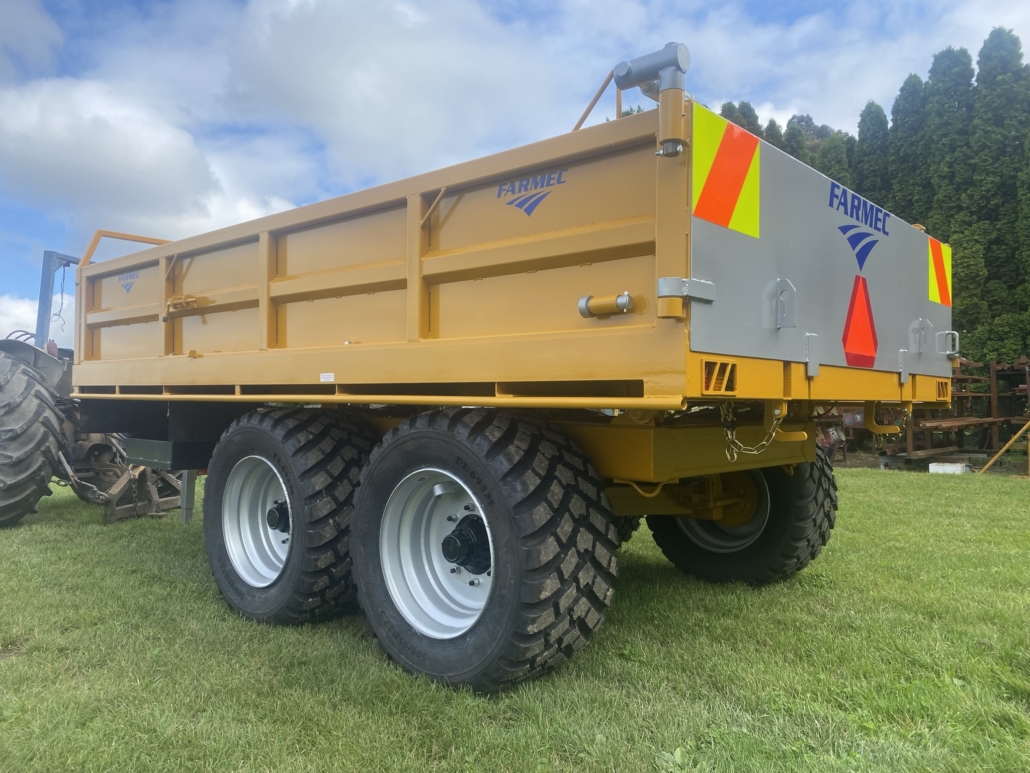

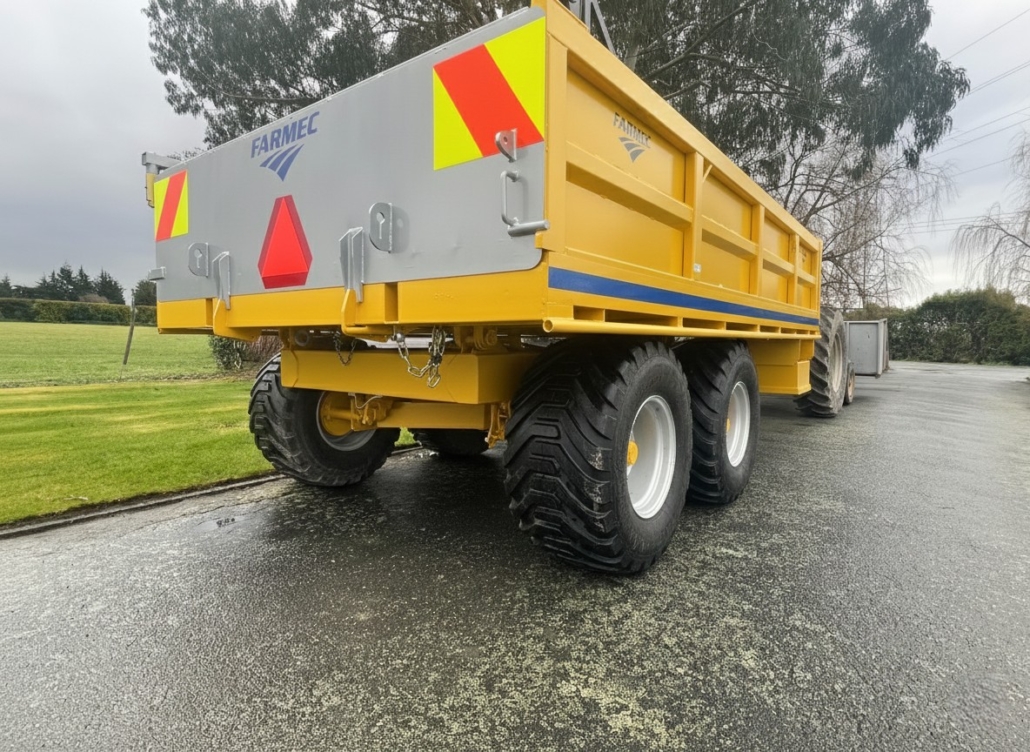

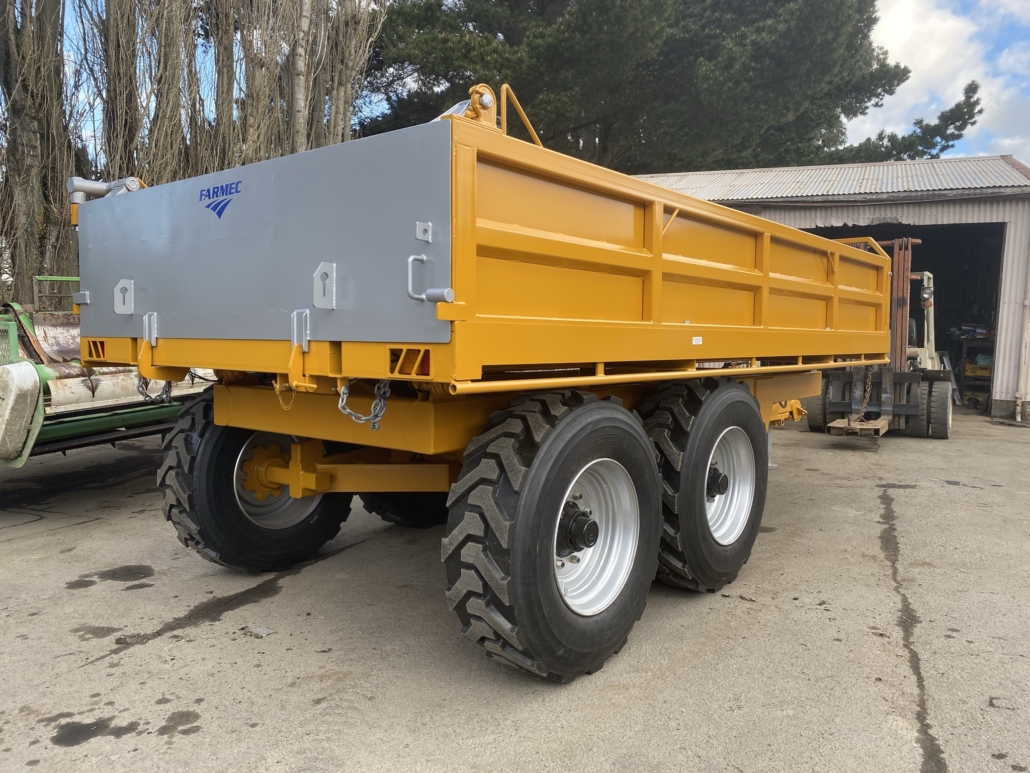

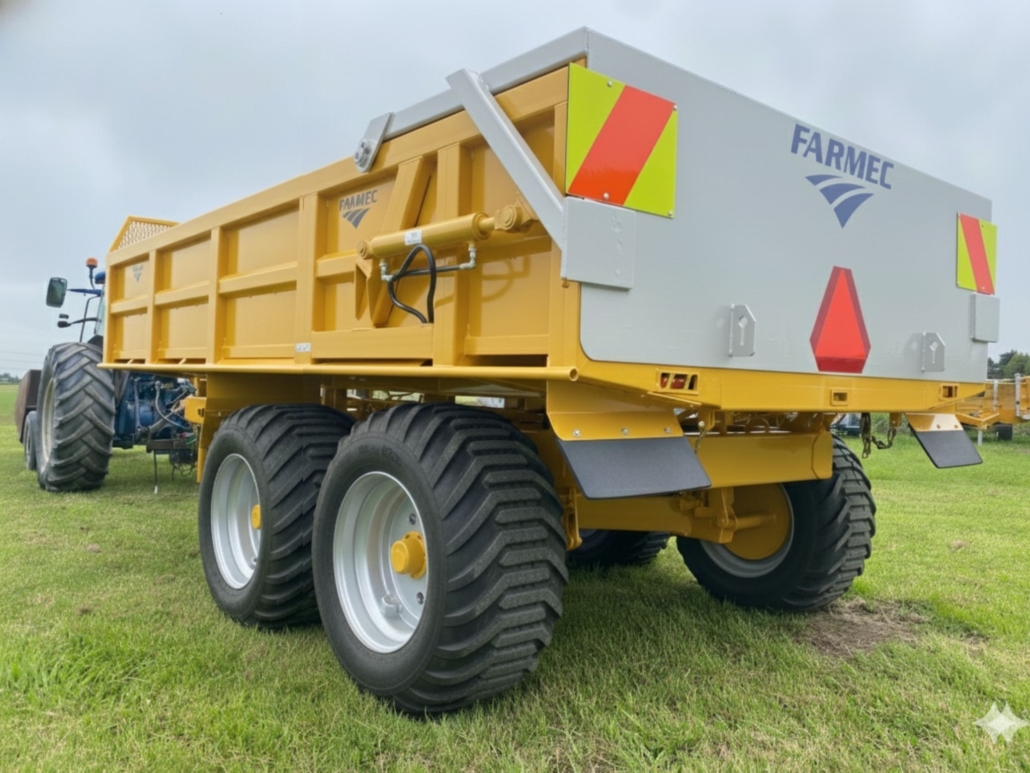

Wheel options are standard wide road wheels 385/65r x 22.5 (1080mmØ) ideal as the industrial option giving high speed high load puncture resistance with a decent footprint, or floatation and lower ground pressure the optional 500/45r x 22.5 fits nicely at 1035mmØ.
Specifications
BODY TYPE : Flat floor with removeable liftoff sides
CAPACITY : 12 tonnes payload by design
TARE WEIGHT : 3,440 kgs as standard
CAPACITIES : 6.3m³ level loaded @ 2,000 kgs/m³ – shingle
BODY LENGTH : 4,400mm
BODY EXTERNAL : 2,530mm on the lift offside
: 2,640mm on the Monocoque tub body
SIDE DEPTH : 650mm (25”)
LOADING HEIGHT : 1,150mm depends on wheel equipment
TIPPING : Via 12 tonne hydraulic Multi-stage cylinder requiring 15 litres of oil to lift to 60° and ½’’ hose terminating at ½” QRC – #3055
1st Stage 22.4 tonnes
2nd stage 16.1 tonnes
3rd stage 10.9 tonnes
4th stage 8.1 tonnes
5th stage 5.2 tonnes
WHEELS : 385/65r x 22.5 (18,500kgs @ 40km/hr)
TANDEM AXLE : 80mm / 8 stud axles (18,400kgs @ 40k) 50mm offset
BRAKES : optional with 4 x actuators to tractor brake pedal
CENTRAL LUBE POINTS : 4 x convenient grease nipples located on chassis to easily lubricate the tandem bushes
CHASSIS : 200 x 100 x RHS fully welded
TOP CHASSIS : 152 x 76 x 6mm RHS
HEADBOARD : Fixed with RHS top shock rail and extension rail
SIDES : Lift off-sides fully welded with flat inside steel panels 4mm non rust corten 350 grade – with up right bracing and stiffener extrusion in the centre – top rails are heavy wall RHS to prevent damage.
TAILGATE : Tailgate top hinge bottom locking
TAILGATE LOCKING : Hydraulic opening & locking controlled from tractor
ROPE RAILS : Fitted with heavy wall pipe bar attached nominally
FLOOR THICKNESS : 5mm Corten 350G braced every 400mm (8.5mm mild steel equivalent)
ROAD LIGHTS : Optional with large LED cluster with profile guarding and if needed flashing orange beacon with on off switch
DRAW BAR : Fixed drawbar with optional 2 coil spring option
DRAWBAR SUPPORT : Fitted with manual jack or optional hydraulic jack support
TOW EYE : Swivel 50mm eye as standard
FINISH : Blasted, zinc base primer, 2 x gloss coats
COLOUR : Standard Yellow with door / wheels silver
