Description
Thank you for considering Farmec for your trailer requirements, we are pleased to be able to offer you our extensive range of locally built tip trailers. These Trailers are capable of many years of reliable operation, they are fast becoming the trailer that set the standard. We are pleased that our customers appreciate the features that we added following over 30 years of development work with both customers and our engineers.
What we have aimed to achieve is :-
- A robust trailer capable of handling all operations whilst maintaining the ability to be diverse as possible.
- a functional trailer that exceeds your expectation in the field.
- that the engineering, design and ascetics of the machine prove to give you maximum longevity.
- the price ensures the unit is competitive whilst considering ‘like for like’.

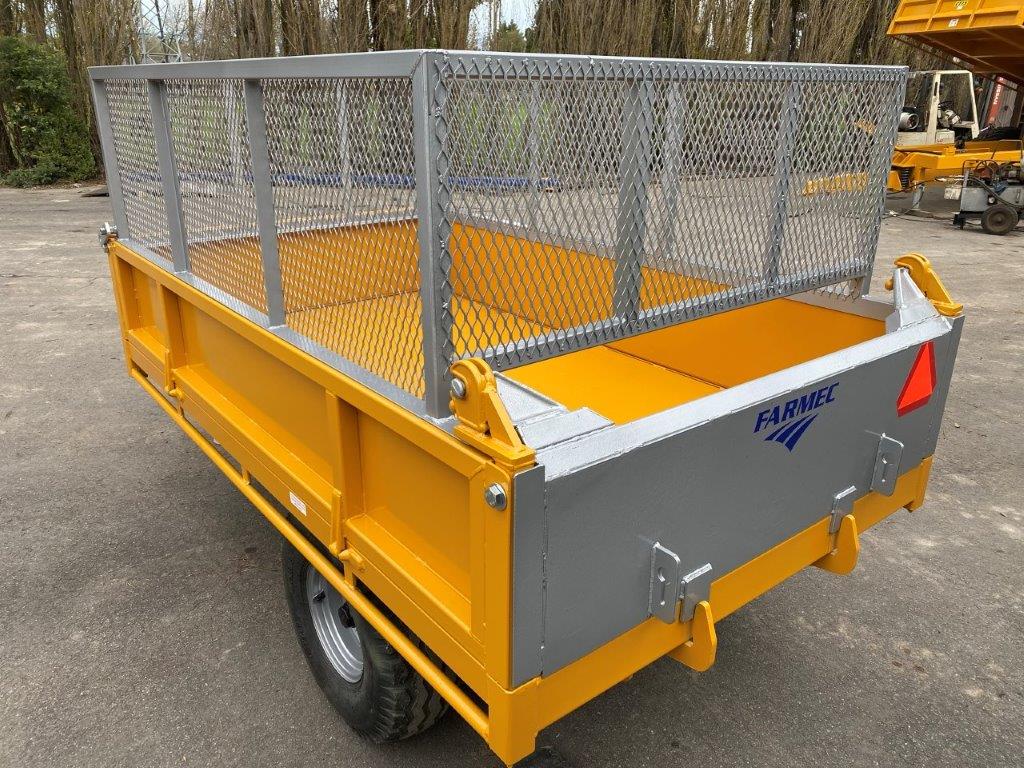

- that the optional equipment ensures all customer’s requirements are catered for
Features

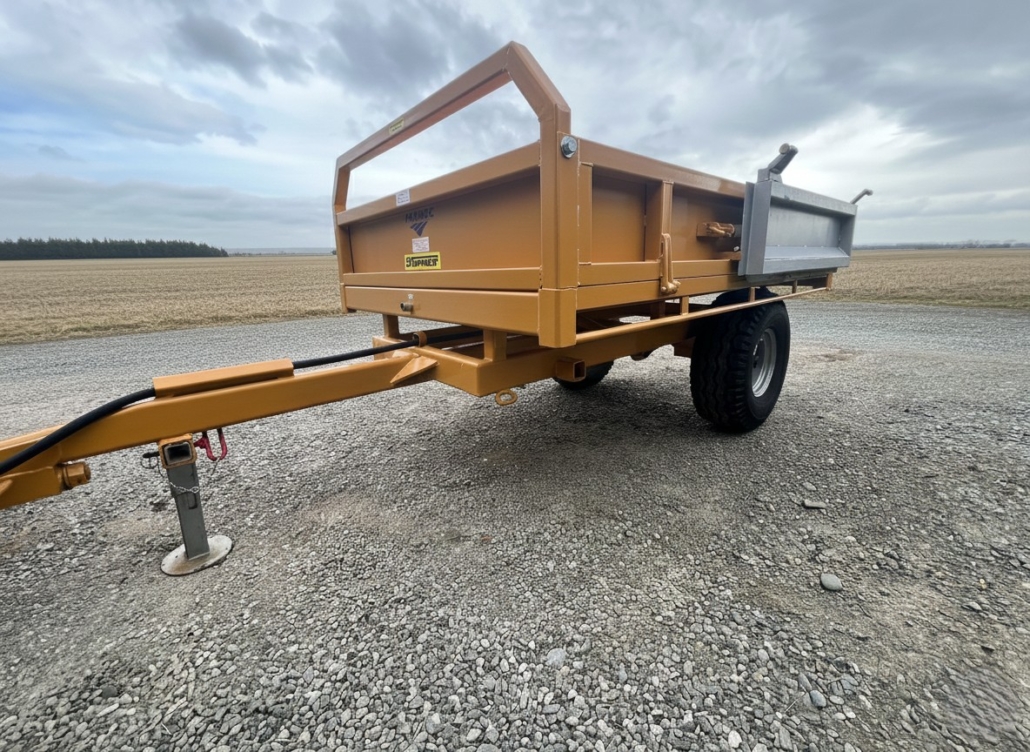

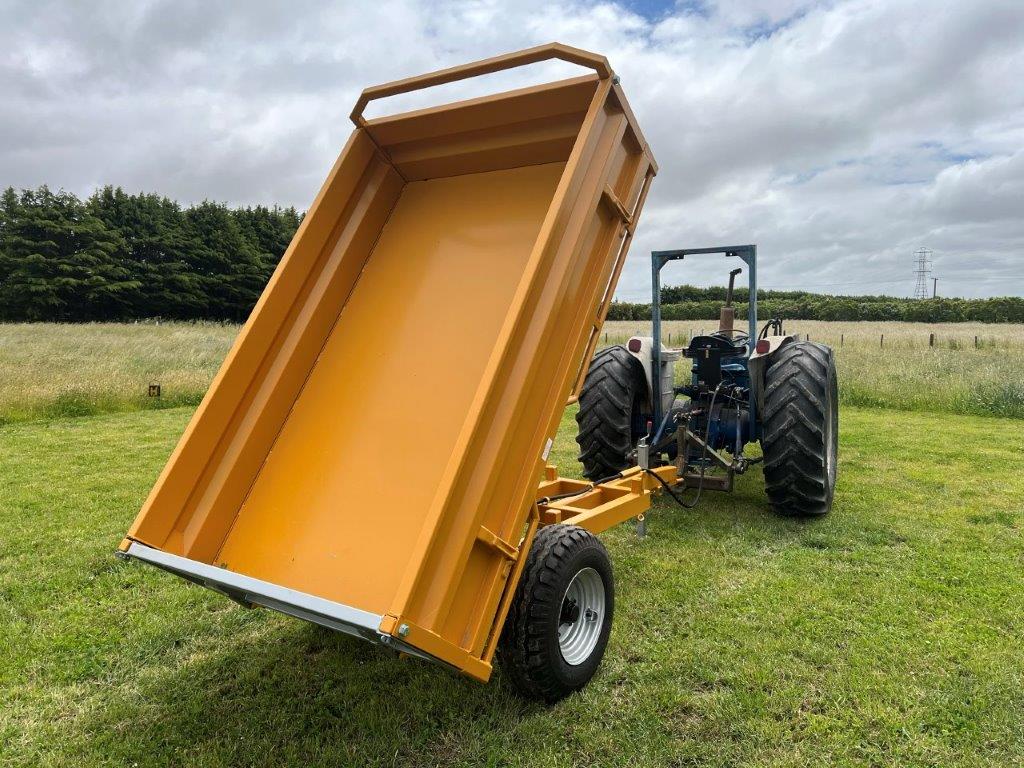

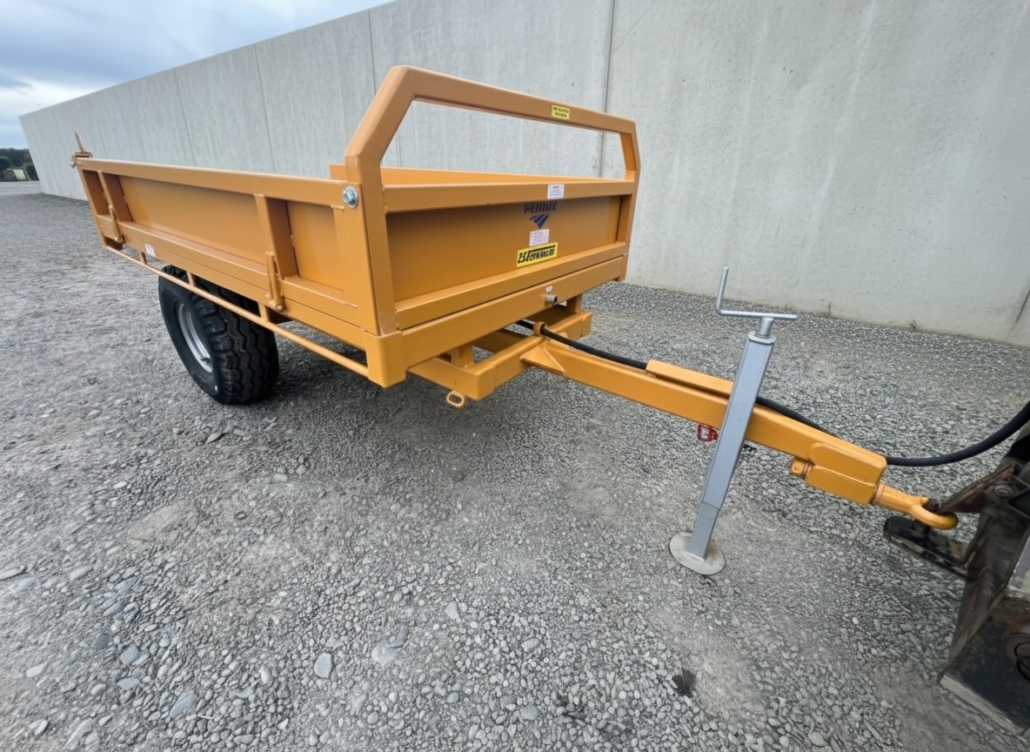

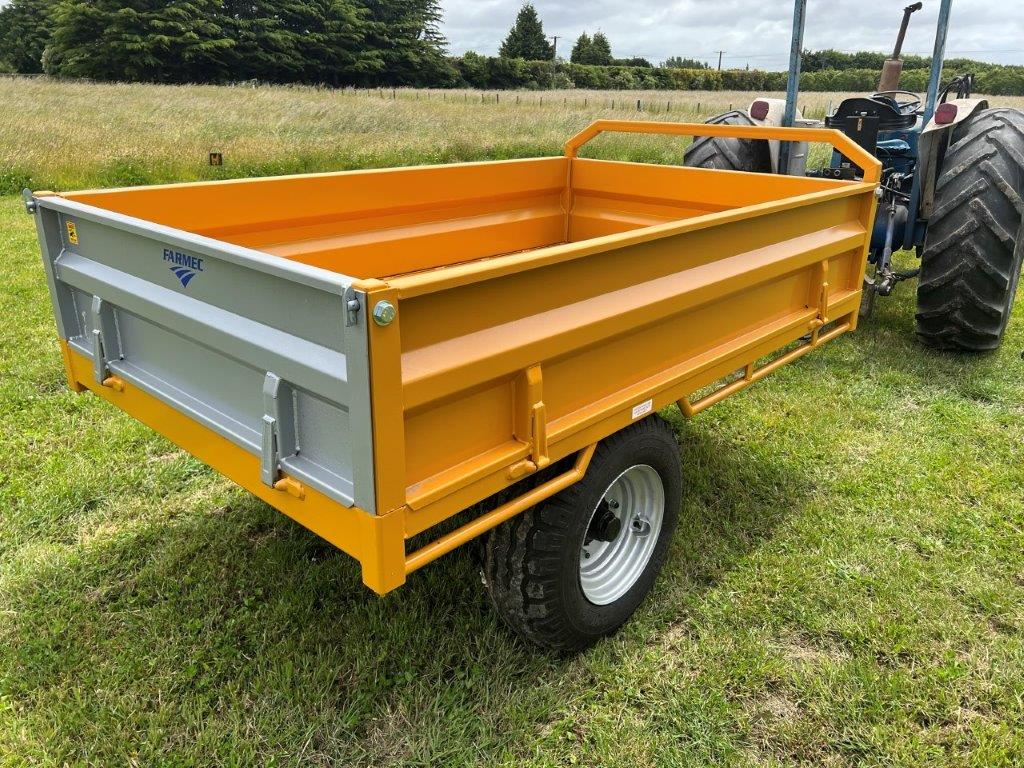

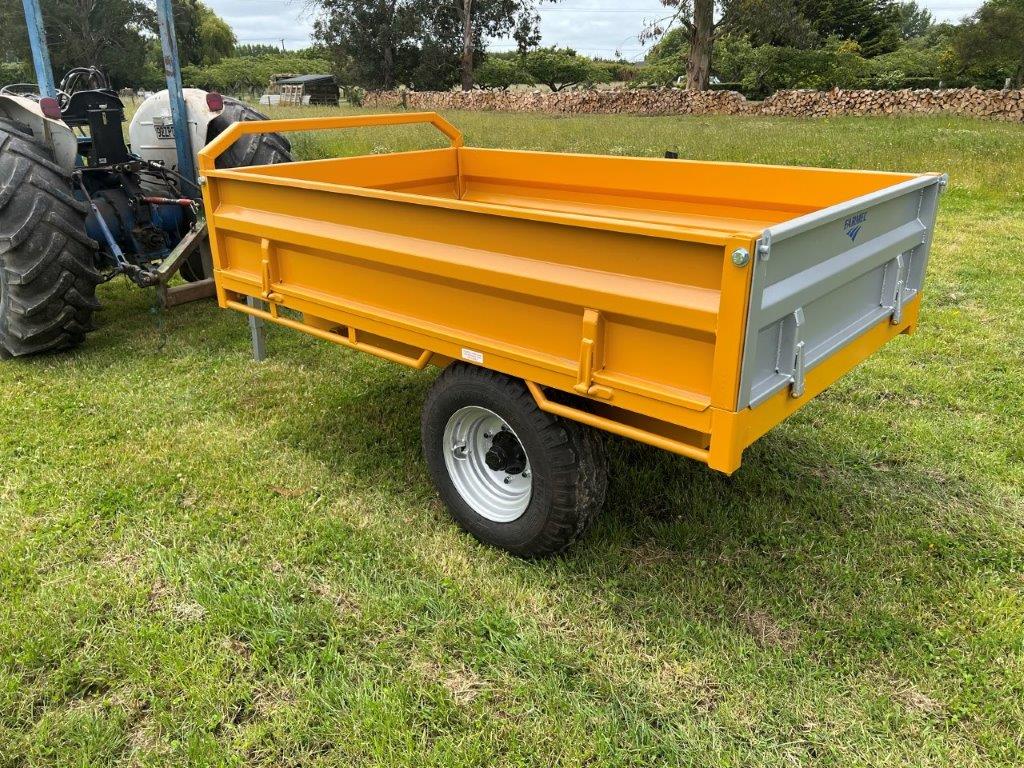

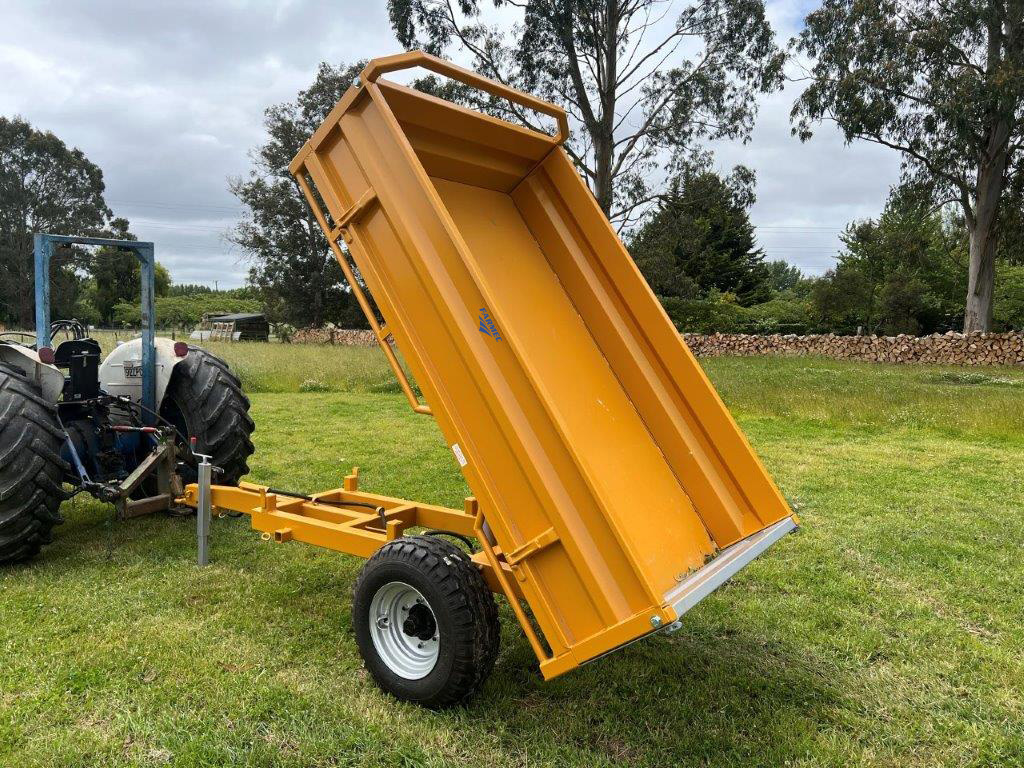

The Compact range of trailers are designed for general use, with a fast-tipping body that goes to 55° will ensure even sticky loads will tip. Full RHS chassis with single drawbar member gives high strength and maximum turning circle. The sides are hinged (& removable) with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides. This makes this a very diverse trailer for any operation.
A particular feature is that the headboard can lift out of its location sockets. Bolsters can then be fitted to the 4 corner sockets making the flatbed ideal for pole transport.
The mechanical auto opening tailgate is extremely popular, this inexpensive ($375) but effective option allows the tailgate to open at 15° and has the aperture fixed by spreading chains (as option) ensuring the right amount of material is spread.
Wheel options are 10.0/80 x 12 – 10ply as standard wide, ideal for golf courses at 250mm wide – trailer maximum speed is 30km/hr and not for road use.
Specifications
BODY TYPE : Flat floor with hinged removable sides
TARE WEIGHT : 340kgs applying 15% to tractor drawbar
CAPACITY : 2.5 tonne by design
CAPACITIES : 1.15m³ level loaded @ 2,000 kgs/m³ shingle
BODY LENGTH : 2,250mm
BODY WIDTH : 1,350mm
BODY DEPTH : 350mm
LOADING HEIGHT : 750mm depending on wheel

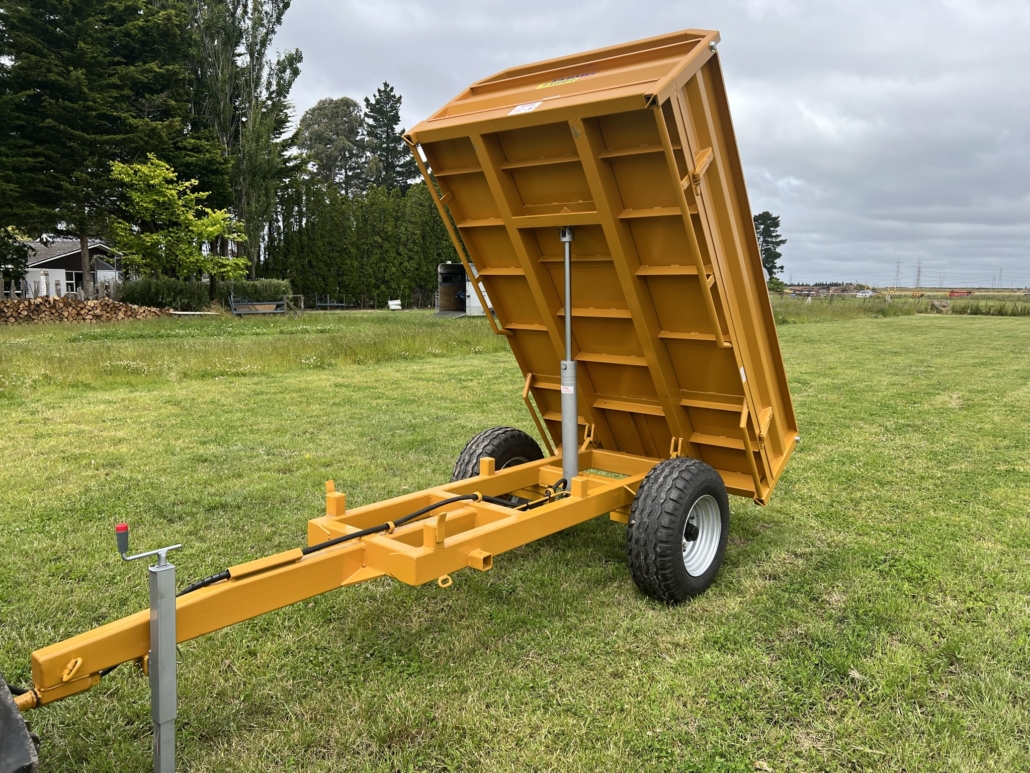

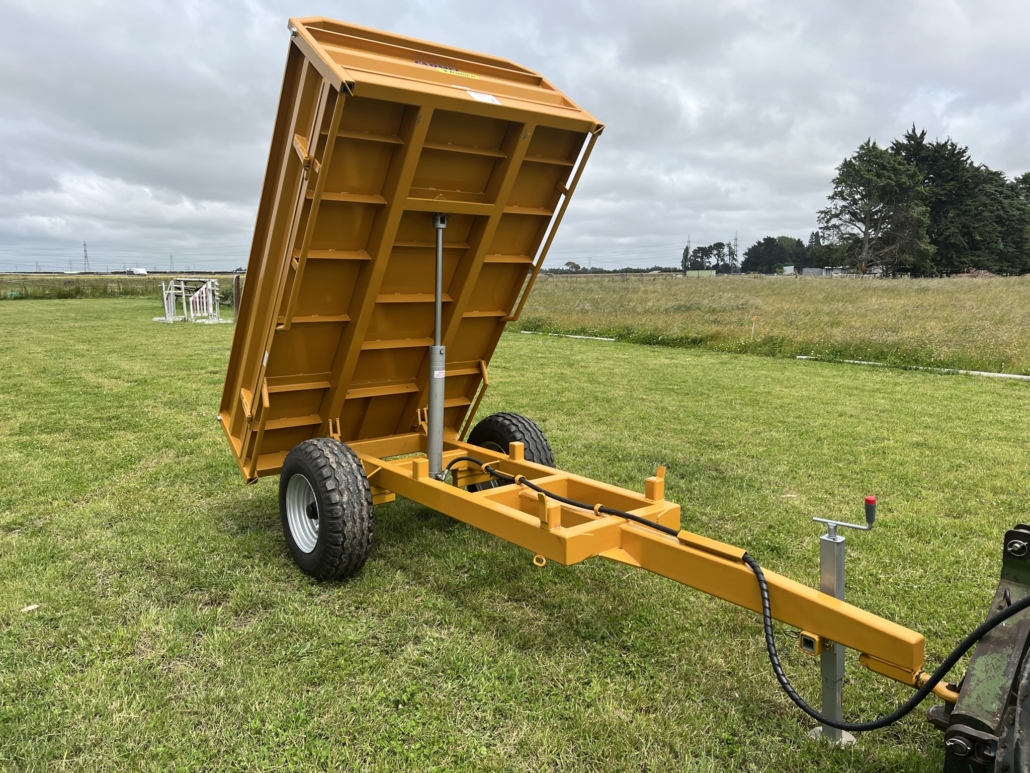

RAM TYPE : Via under body single stage hydraulic cylinder requiring 6 litres of oil to lift and terminating at ½’’ QRC
SINGLE AXLE : 50mm / 6 stud brakeless (2,800kgs @ 30k)
WHEELS ON SINGLE : 10.0/75 x 15.3 – 12 ply (3,100kgs capacity)
DRAW BAR : Rigid drawbar 125 x 75 x 5 RHS
CHASSIS : 125 x 75 x 4mm RHS fully welded chassis
TOP CHASSIS : 125 x 75 x 4mm RHS top deck
SIDES : Detachable hinging sides that bolt in rigid, allowing easy access to side loading.
HEADBOARD : Detachable with RHS top shock rail and extension rails with corner sockets in deck
TAILGATE : Detachable tailgate with RHS top shock rail, includes independent corner posts to allow rear door to be removed yet sides remain fixed. Drop lock anti loose fastening used.
TAILGATE LOCKING : Bottom Hinged, top locking via anti-loose latches as standard (see options)
ROPE RAILS : Fitted with ¾” bore pipe
FLOOR THICKNESS : 3mm steel floor braced every 50mm
SIDE THICKNESS : 3mm steel with RHS up right bracing
DRAWBAR SUPPORT : Fitted with 60mm jack support (see options)
TOW EYE : Swivel eye 30mmØ (see options)
FINISH : Blasted, zinc base primer, 2 x gloss coats
COLOUR : Standard Yellow / silver
