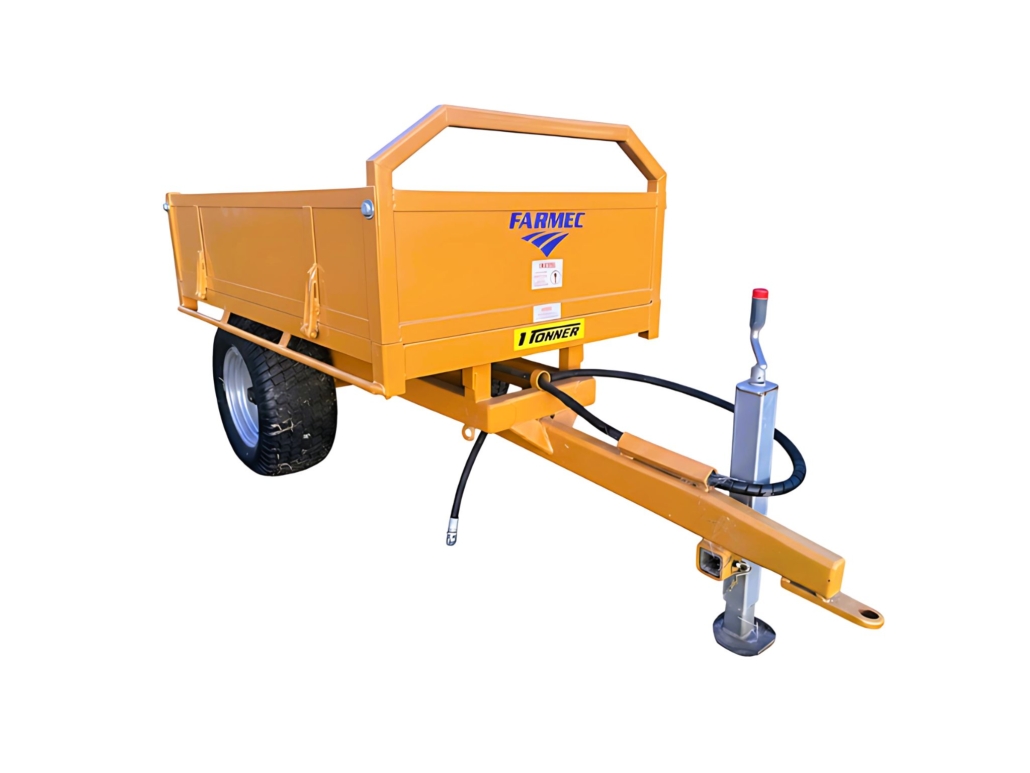

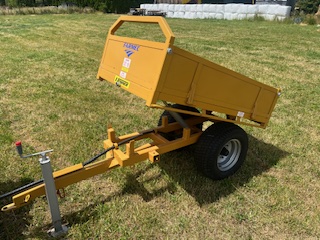

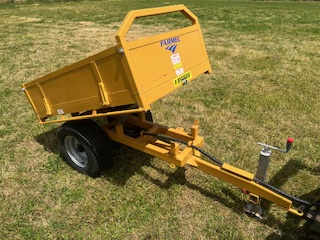

1 Tonne Tipping Trailer ‘TC01’

These trailers are ideal for the avid life styler or applications including horticulture and viticulture where implements often need to operate in restricted areas. Fitted with many features these trailers are multi-tasking and with a list of options that will ensure their usability around the property.

Categories: ,

Description

Thank you for considering Farmec TC01 for your compact trailer requirement. Please find the smallest trailer we manufacture but it is still well appointed with similar features found on larger models in the range. Robust heavy-duty design but under 300 kg tare weight allows the 20hp compact tractor (or lawnmower) to handle safely and easily with many of the simple tasks where additional hauling capacity is a great benefit.

What we have aimed to achieve is:

  • a robust trailer capable of handling all required operations whilst maintaining the ability to be as functional possible
  • a user-friendly product that exceeds your expectation in its field
  • that the engineering, design and ascetics of the machine prove to give you maximum longevity.
  • the price ensures that the unit is competitive whilst considering ‘like for like’
  • that the optional equipment ensures all customer’s requirements are catered for

Features

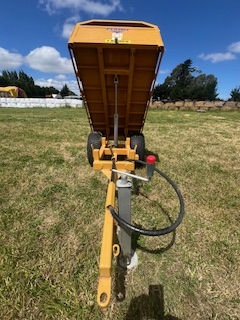

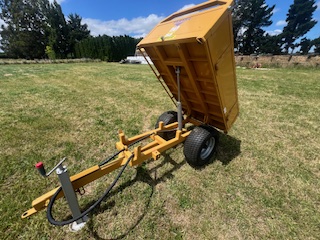

  • The Compact range of trailers are designed for everyday general use, with a fast-tipping body that goes to 55° which will ensure even sticky loads will tip.
  • Full RHS chassis with single drawbar member gives high strength and maximum turning circle.

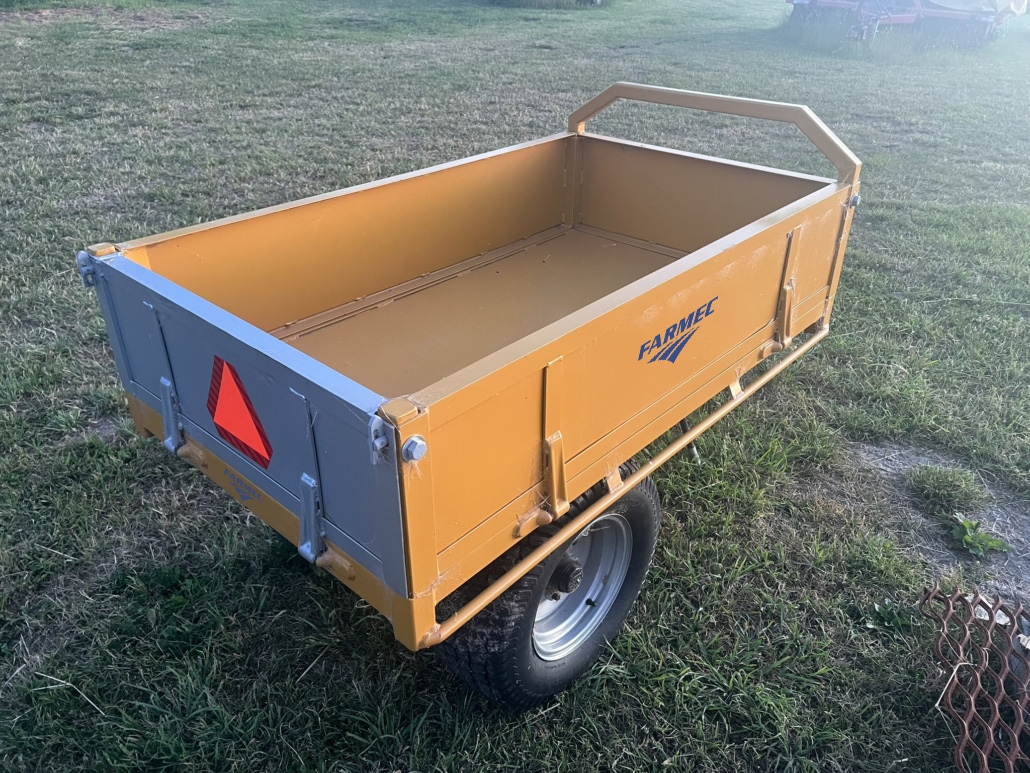

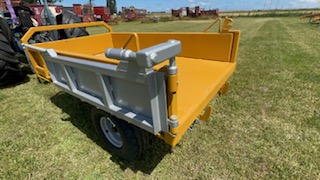

  • The sides are hinged (& removable) with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides. This makes it a very diverse trailer for any operation.
  • A particular feature is that the headboard can lift out of its location sockets. Bolsters can then be fitted to the 4 corner sockets making the flatbed ideal for pole transport.
  • Please consider the list of options that add to the functionality and ease of use including the mechanical auto opening tailgate is extremely popular, this inexpensive but effective option allows the tailgate to open at about 15° and has the aperture fixed by spreading chains (as option) ensuring the right amount of material is spread.

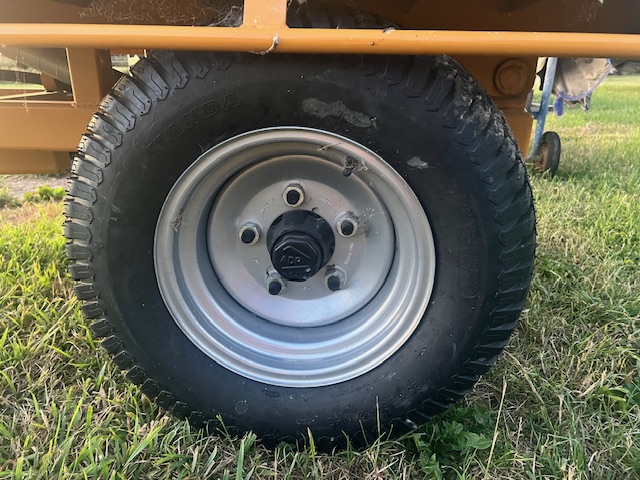

  • Wheel options are 23/10.50 x 12 as standard wide, ideal for golf courses at 230mm wide – trailer maximum speed is 30km/hr and not for road use.

Specifications

BODY TYPEFlat floor with hinged removeable sides
CAPACITY (kg)1 tonnes payload by design
CAPACITY (m³)0.5m³ level loaded at 2,000 kgs/m³ shingle
BODY LENGTH1,500mm
BODY WIDTH900mm
BODY DEPTH300mm
CHASSIS75 x 50 x 5mm RHS fully welded chassis
TOP CHASSIS75 x 50 x 5mm RHS top deck
RAM TYPEVia under body single stage hydraulic cylinder requiring 4 litres of oil to lift and terminating at ½’’ QRC
SINGLE AXLE50mm / 5 stud brakeless (3,100kgs at 40km/hr)
WHEELS STD.23/10.5 x 12.00 – 12 ply (2,600kgs capacity)
LOADING HEIGHT750mm depending on wheel
TARE WEIGHT280kgs applying 15% to tractor drawbar
DRAWBARRigid drawbar 100 x 50 x 5mm RHS
DB SUPPORTFitted with 60mm jack stand (see extras)
HEADBOARDDetachable with RHS top shock rail and extension rails with corner sockets in deck
SIDESDetachable hinging sides that bolt in rigid, allowing easy access to side loading, RHS top shock rail to prevent damage

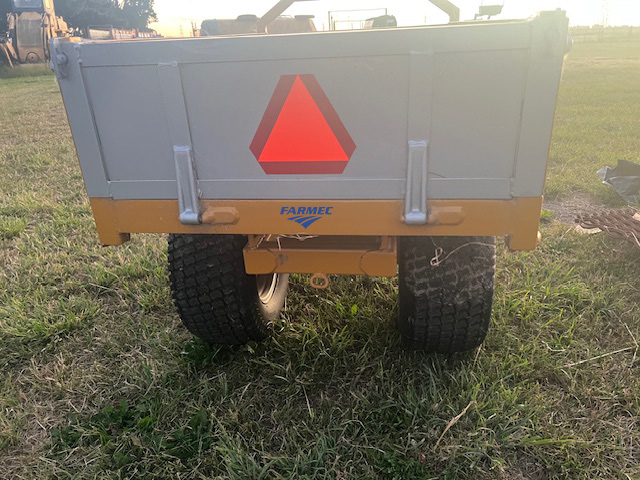

TAILGATEDetachable tailgate with RHS top shock rail, includes independent corner posts to allow rear door to be removed yet sides remain fixed. Drop lock anti loose fastening locks fitted (see extras)
DOOR LOCKINGBottom Hinged, top locking via anti-loose latches as standard (see extras)
DECK THICKNESS2mm steel floor braced every 350mm
SIDE THICKNESS2mm steel with RHS up right bracing
FINISHBlasted, zinc base primer, 2 x gloss coats
COLOURStandard yellow with door / wheels silver

Extras

Auto open tailgate$655
Double swing tailgate$675
Spreading chains$165
Swivel tow eye$155
Rope rails$135
Jockey wheel in lieu of jack stand$454

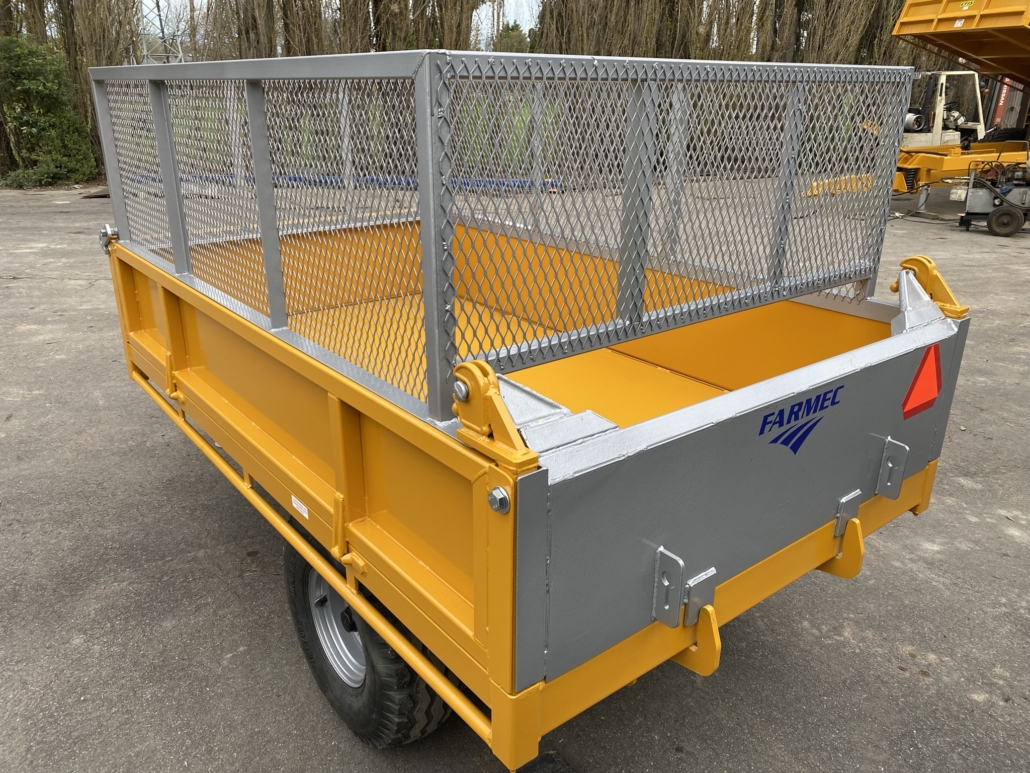

 600mm Mesh cage with top or side door (includes mesh tailgate)$1410
2 Pack paint in lieu of enamel$450
