This handy trailer is frequently purchased by horticulturalists, small farms, lifestyle block owners and vineyards. The trailer is a very simple but well-appointed entry level product. Ideal for helping out around the property without breaking the bank.

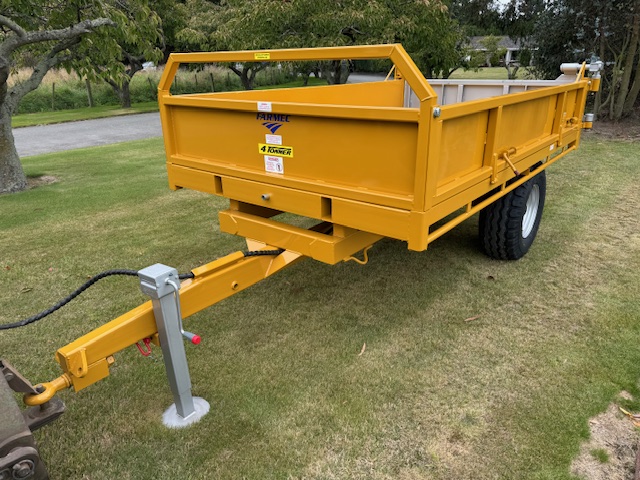

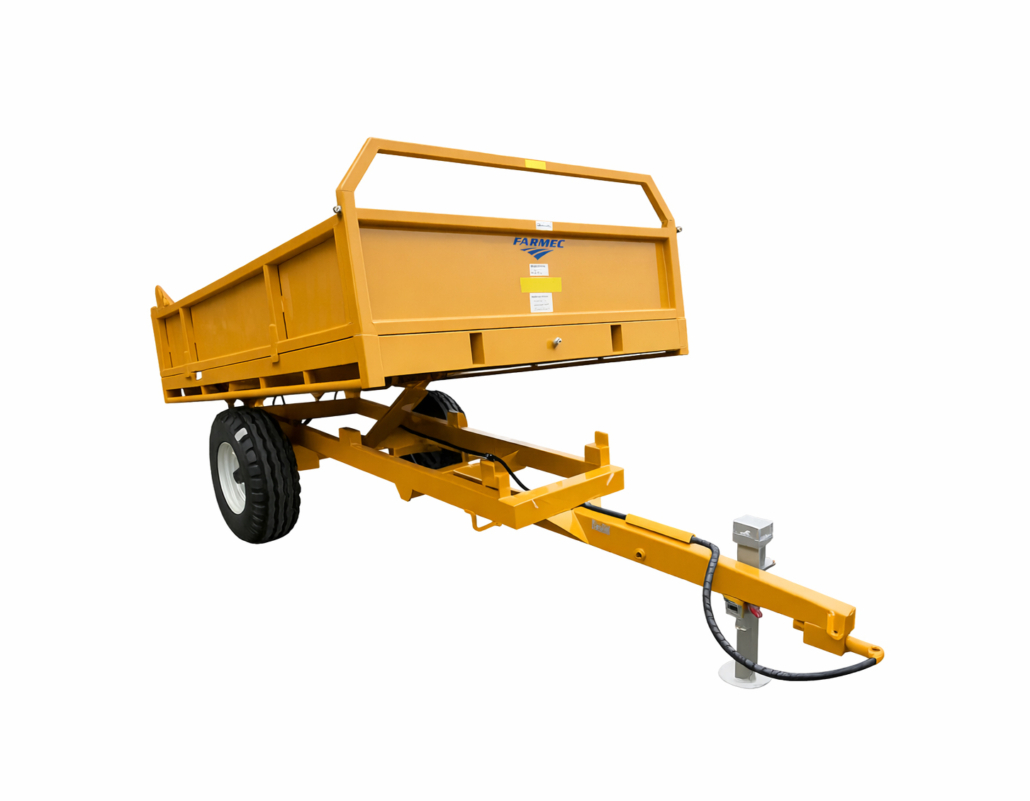

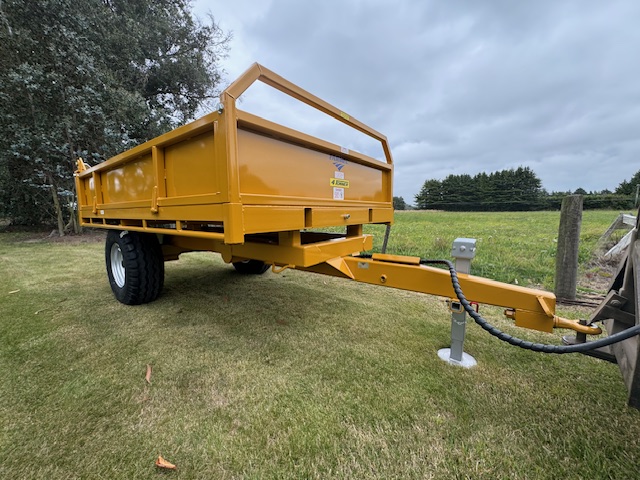

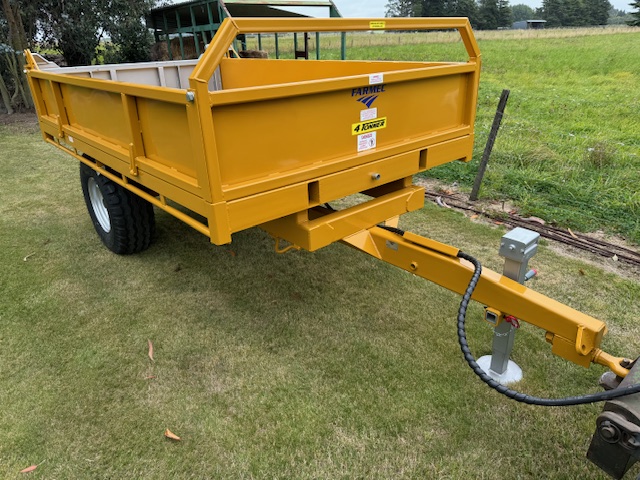

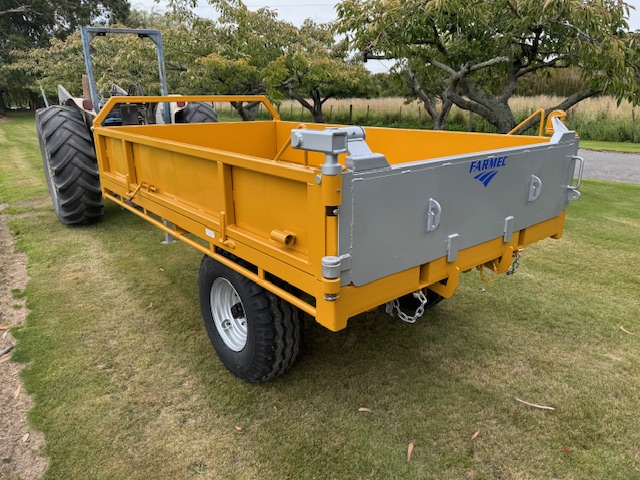

Trailer shown as standard with single axle, hinged removeable sides – swivel or fixed tow eye, rope rails, auto opening tailgate, spreading chains and optional 11.5 wheel
Thank you for considering Farmec for your trailer requirements, we are very pleased to be able to offer you our extensive range of Farmaster Tip Trailers. These Trailers are capable of many years of reliable operation, we are pleased that our customers appreciate the features that we added following the years of development work with both customers and our engineers.
What we have aimed to achieve is:-
A robust trailer capable of handling all farm operations.
a functional trailer that exceeds your expectation in the field.
the engineering, design and ascetics prove to give you maximum life
pricing ensures the unit is competitive whilst considering ‘like for like’
optional equipment ensures all customer requirements are catered for
Features

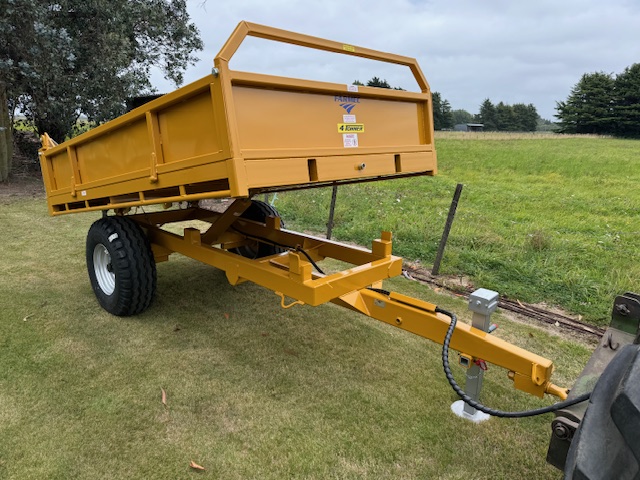

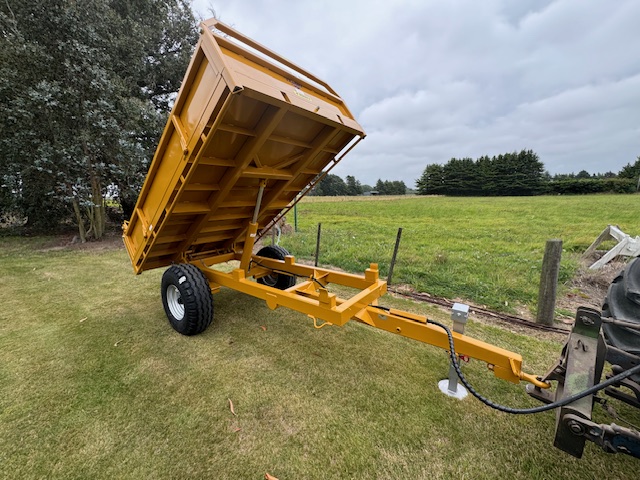

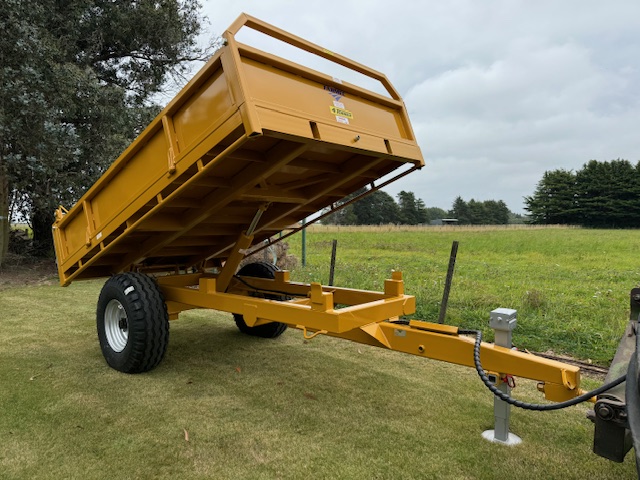

The Farmec range of trailers are designed for general farm use, with a fast-tipping body that goes to 55° will ensure even sticky loads will tip. Full RHS chassis with single drawbar member gives high strength and maximum turning circle. The sides are hinged and easily removable with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides. This makes this a very diverse trailer for any operation.
A particular feature is that the headboard can lift out of its location sockets. Bolsters can then be fitted to the 4 corner sockets making the flatbed ideal for pole transport. The mechanical auto opening door opens as the trailer tips, or this can be hydraulic if preferred. Spreading chains are standard ensuring the right amount of material is spread.
Wheel options are either 11.5 / 80 x 15.3 as standard or 12.5 / 80 x 15.3 for added footprint or floatation 400 / 60 x 15.5 ideally for wet conditions or golf courses
Specifications
BODY TYPE
Flat floor with hinged removable sides
CAPACITY
4 tonnes payload
CAPACITIES
2.2m³ level loaded at 2,000kgs/m³
BODY LENGTH
3,000mm
BODY WIDTH
1,810mm
BODY DEPTH
525mm (21”)
LOADING HEIGHT
860mm, depending on wheel
TARE WEIGHT
1,100kgs on 400 wheels
WHEELS
10.0/70 x 15.3 – 12 ply as standard
SINGLE AXLE
60mm / 6 stud unbraked
RAM TYPE
Via 4 tonne hydraulic single-stage cylinder. Requires 7 litres of oil to lift to 55°, terminating at ½” QRC
DRAWBAR
152 x 76 x 6mm single beam drawbar
DRAWBAR SUPPORT
Fitted with 70mm jack support
TOW EYE
Fixed eye or swivel eye fitted as requested
CHASSIS
125 x 75 x 5mm fully welded
TOP CHASSIS
125 x 75 x 5mm RHS
HEADBOARD
Fixed with RHS top shock rail and extension rail
SIDES
Detachable hinging sides that bolt in rigidly, allowing easy access to side loading, RHS top shock rail to prevent damage

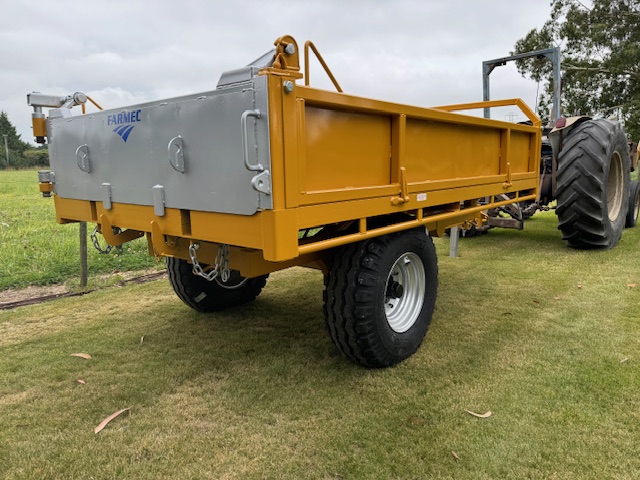

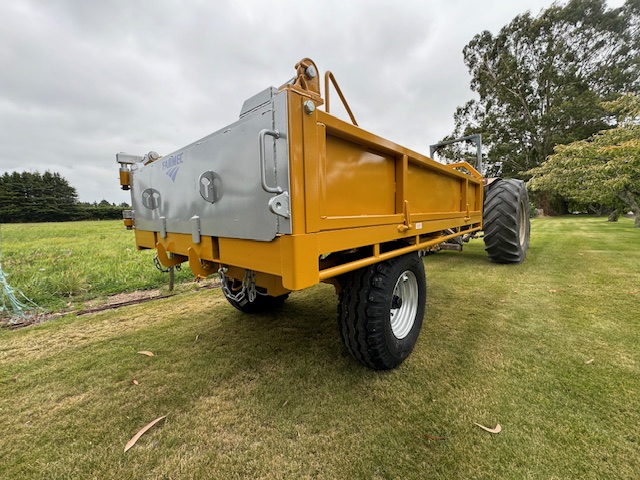

TAILGATE
Top-hinged tailgate with RHS top shock rail, includes independent corner posts to allow rear door to be removed, yet sides remain fixed.
